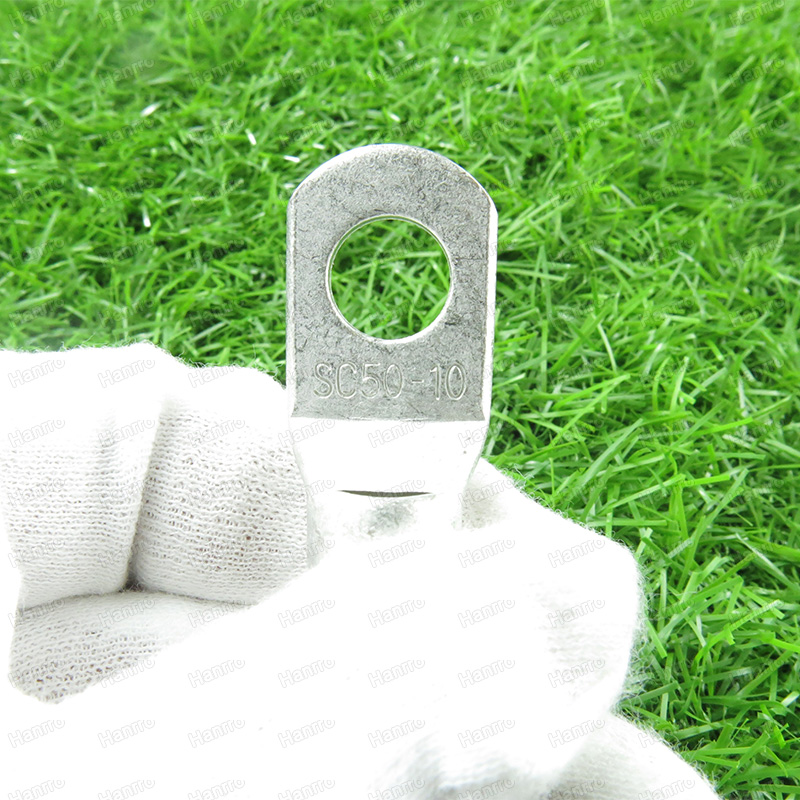

Heavy Duty Cable Lugs-SC Series

Heavy Duty Cable Lugs are made by high conductivity copper which used for code conductors One-Hole  with Inspection Window Design. Seamless tubular barrel provides a consistent high performance quality crimp.

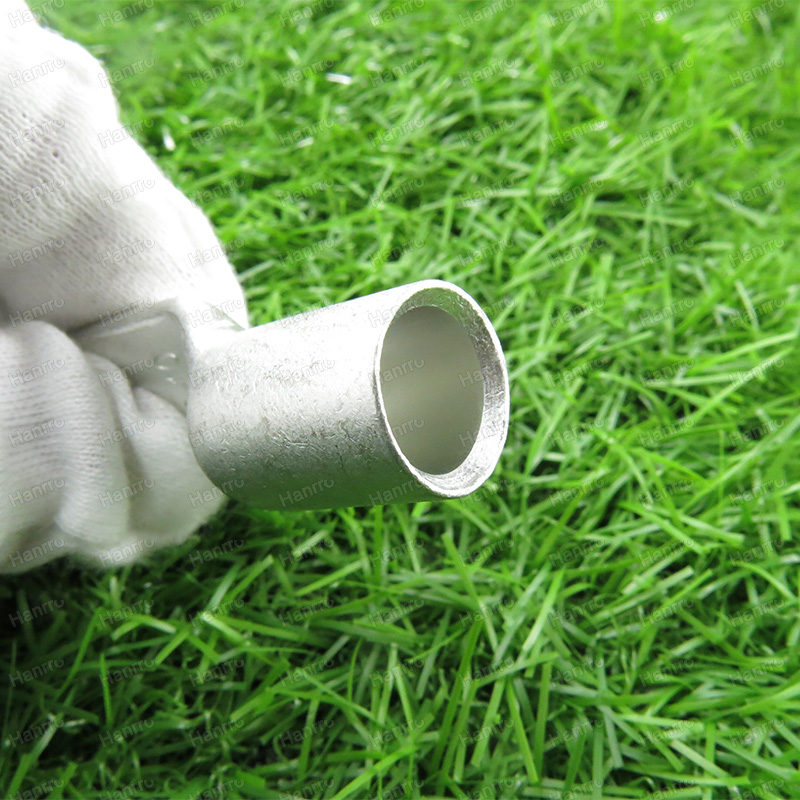

Round double thick tongue for reliable power application. And Barrel of terminal internally beveled to provide quick and easy wire insertion.

SC Copper Cable Lugs Surface Treatment by Tin-Plated to inhibit corrosion

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

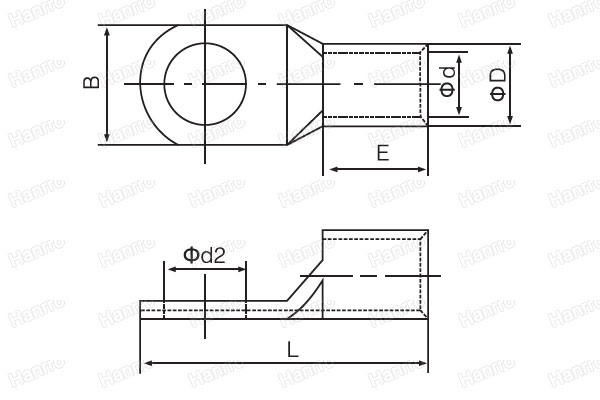

Item No Dimension
 Φ d2 B L Φ D Φ d E
 N-SC1.5-4 4.3 8.7 19 4 2.4 7
N-SC1.5-5 5.3 8.7 19 7
N-SC1.5-6 6.4 10.2 20 7
N-SC2.5-4 4.3 8.7 19 4.3 2.7 7
N-SC2.5-5 5.3 8.7 19 7
N-SC2.5-6 6.4 10.2 21 7
N-SC4-4 4.3 8.7 21.5 4.8 3.1 9.5
N-SC4-5 5.3 8.7 21.5 9.5
N-SC4-6 6.4 10.2 23.5 9.5
N-SC4-8 8.3 12.5 28.5 9.5
N-SC6-5 5.3 10.3 26 5.5 3.8 10
N-SC6-6 6.4 10.3 26 10
N-SC6-8 8.3 13.9 29 10
N-SC6-10 10.5 13.9 29 10
N-SC10-5 5.2 12 25 6.9 4.7 9
N-SC10-6 6.5 12 25 9
N-SC10-8 8.4 12.5 27 9
N-SC10-10 10.5 15 29 9
N-SC16-5 5.3 12.2 31.5 8.1 6 12
N-SC16-5 6.4 12.2 31.5 12
N-SC16-8 8.2 12.2 31.5 12
N-SC16-10 10.4 14.5 33 12
N-SC25-5 5.3 13.5 35.9 9.4 7 15.6
N-SC25-6 6.5 13.5 35.9 15.6
N-SC25-8 8.3 13.5 35.9 15.6
N-SC25-10 10.4 14.5 36.9 15.6
N-SC25-12 13 18 40.5 15.6
N-SC35-6 6.5 16.4 40.3 11.5 8.5 16.5
N-SC35-8 8.3 16.4 40.3 16.5
N-SC35-10 10.3 16.4 40.3 16.5
N-SC35-12 13 19 43.3 16.5
N-SC50-6 6.5 19.5 46.5 13.5 10.5 18.5
N-SC50-8 8.3 46.5 18.5
N-SC50-10 10.3 46.5 18.5
N-SC50-12 13 46.5 18.5
N-SC70-6 6.5 21.8 52.3 15 12 20.5
N-SC70-8 8.4 52.3 20.5
N-SC70-10 10.4 52.3 20.5
N-SC70-12 12.6 52.3 20.5
N-SC70-14 15 52.3 20.5
N-SC70-16 17 25 54 20.5
N-SC95-8 8.4 25.3 57 17.5 13.9 22
N-SC95-10 10.4 57 22
N-SC95-12 13 57 22
N-SC95-14 15 57 22
N-SC95-16 17 57 22
N-SC120-8 8.4 28 63 19.4 15 22
N-SC120-10 10.5 63 22
N-SC120-12 13 63 22
N-SC120-14 15 63 22
N-SC120-16 17 63 22
N-SC120-20 21 63 22
N-SC150-8 8.4 30.5 70 21.2 16.5 26
N-SC150-10 10.5 70 26
N-SC150-12 13 70 26
N-SC150-14 15 70 26
N-SC150-16 17 70 26
N-SC150-20 21 70 26
N-SC185-10 10.5 34 75 23.5 18.5 32
N-SC185-12 13 75 32
N-SC185-14 15 75 32
N-SC185-16 17 75 32
N-SC185-20 21 75 32
N-SC240-10 10.5 38.5 90 26.5 21 38
N-SC240-12 13 90 38
N-SC240-14 15 90 38
N-SC240-16 17 90 38
N-SC240-18 19 90 38
N-SC240-20 21 90 38
N-SC300-10 10.5 43.3 98 30 23.5 42
N-SC300-12 13 98 42
N-SC300-14 15 98 42
N-SC300-16 17 98 42
N-SC300-20 21 98 42
