Screw On Wire Connectors

Screw On Wire Connectors are suitable to meet the requirements for both commercial or residential applications.  A wire coiled spring is found within the tough plastic shell of the Screw On Wire Connector and expands to accommodate a wide range of wire combinations, sealing out moisture and protecting conductors from corrosion and fungus.  The Screw On Wire Connectors cover common wire ranges and are designed with a ribbed cap for fast and easy installation.  Screw On Wire Connectors are available in Gray(Small and Large), Blue, Orange, Yellow, and Red.  These Connectors are available in bags of 100 or 1000 pieces.

Screw On Wire Connectors with a wide spring opening facilitates easy and fast insertion of large wire combinations. This hex-head connector is capable of a 1-conductor termination. It is also suitable for 2 or more conductor connections in a pigtail application. The insulator is manufactured with a flame-retardant PVC.

Screw On Wire Connectors features a steel spring with corrosion-resistant coating and a durable PVC insulator. The molded insulator resists warping and expansion when pushed to the upper limits of its wire ranges. The connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and CSA Certified.

Features & Benefits :

Hex-head design provides ability to use a socket for quick installation

Wide spring opening enables easy and fast insertion of large wire combinations

Flame-retardant PVC insulator and Corrosion-resistant steel spring

600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires

For WingGard Type , Please visit : WingGard Twist On Wire Connectors

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No  Color Voltage AWG  Max Min

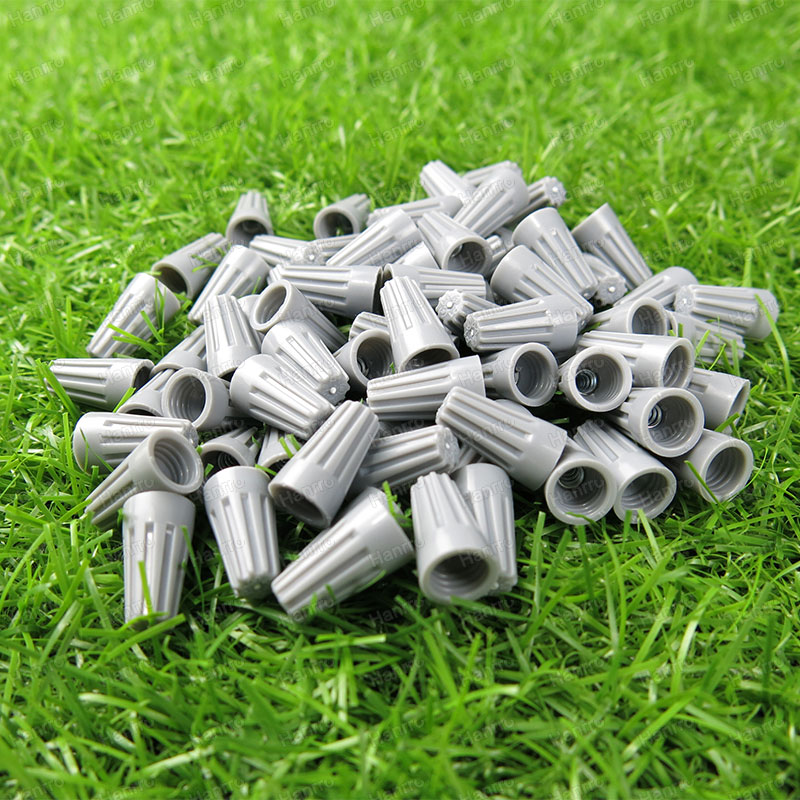

P1 Grey 300V 22-14 1 #16 w/1 #18 w/1 #20 2 #22

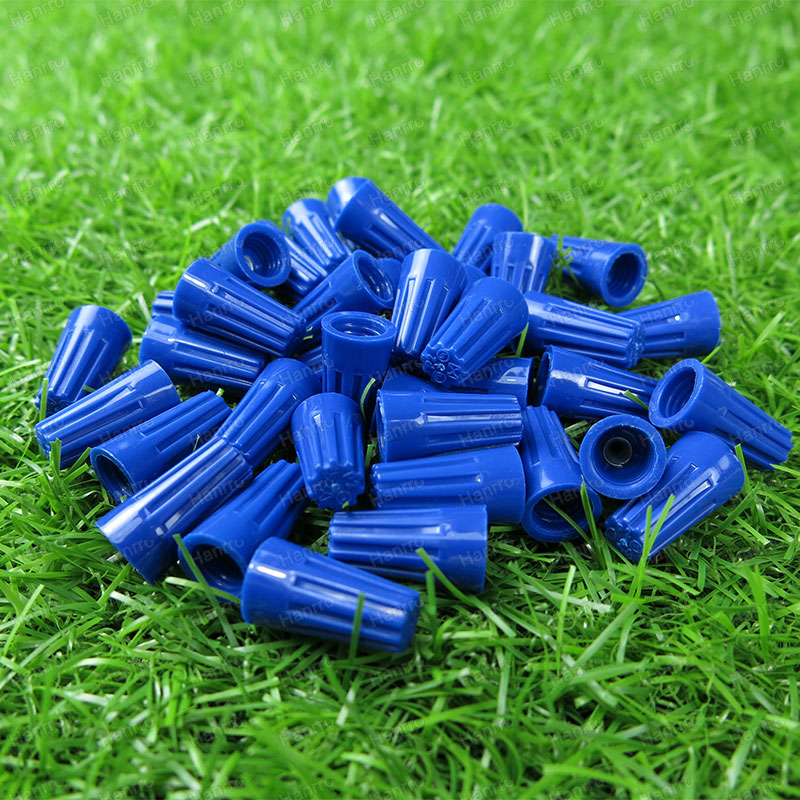

P2 Blue 300V 22-14 3 #16 2 #22

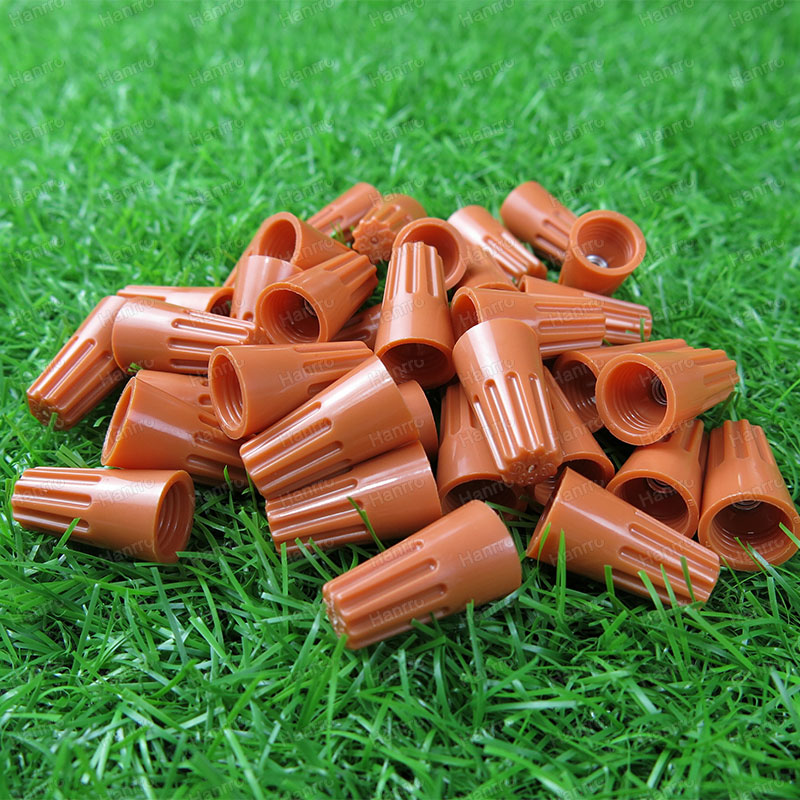

P3 Orange 300V / 600V 22-14 4 #16 w/1 #20  1 #18 w/1 #20

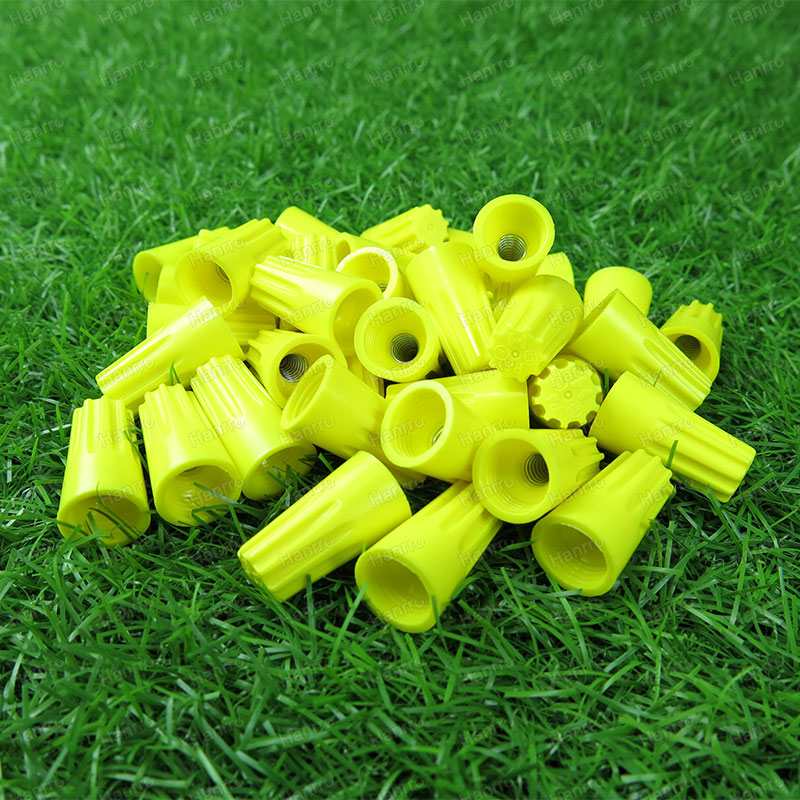

P4 Yellow 300V / 600V 22-10 2 #12 w/2 #14 3 #20 Sol

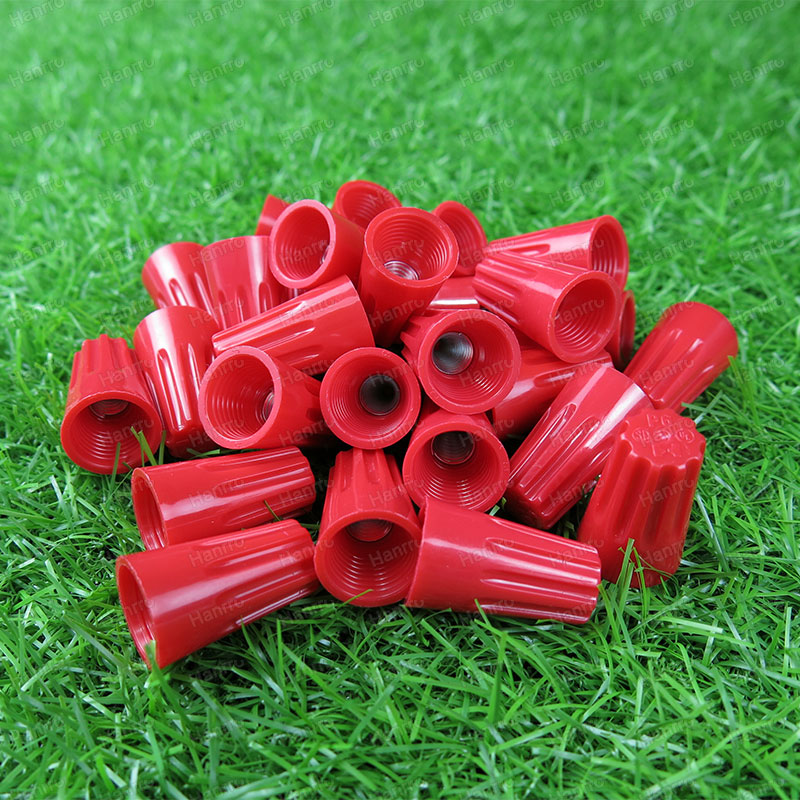

P6 Red 300V / 600V 22-10 2 #10 Sol w/2 #12 Str 3 #18
