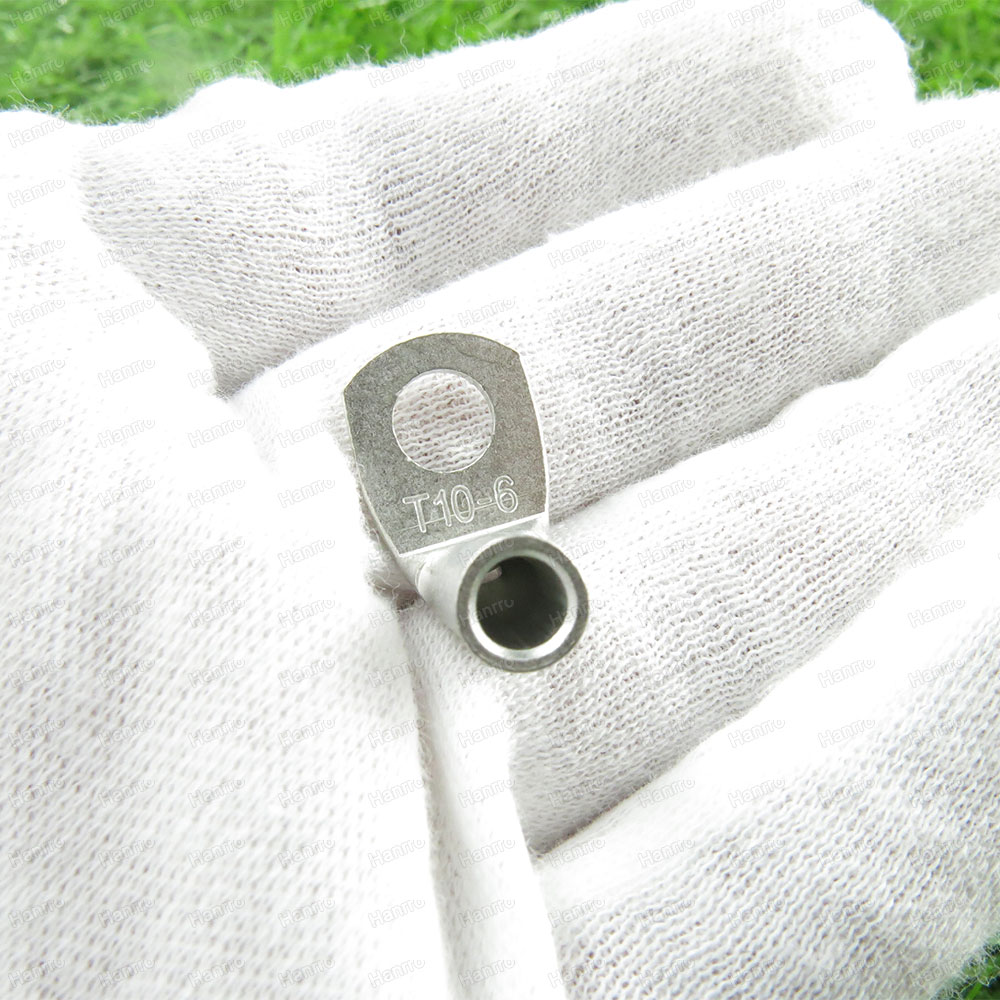

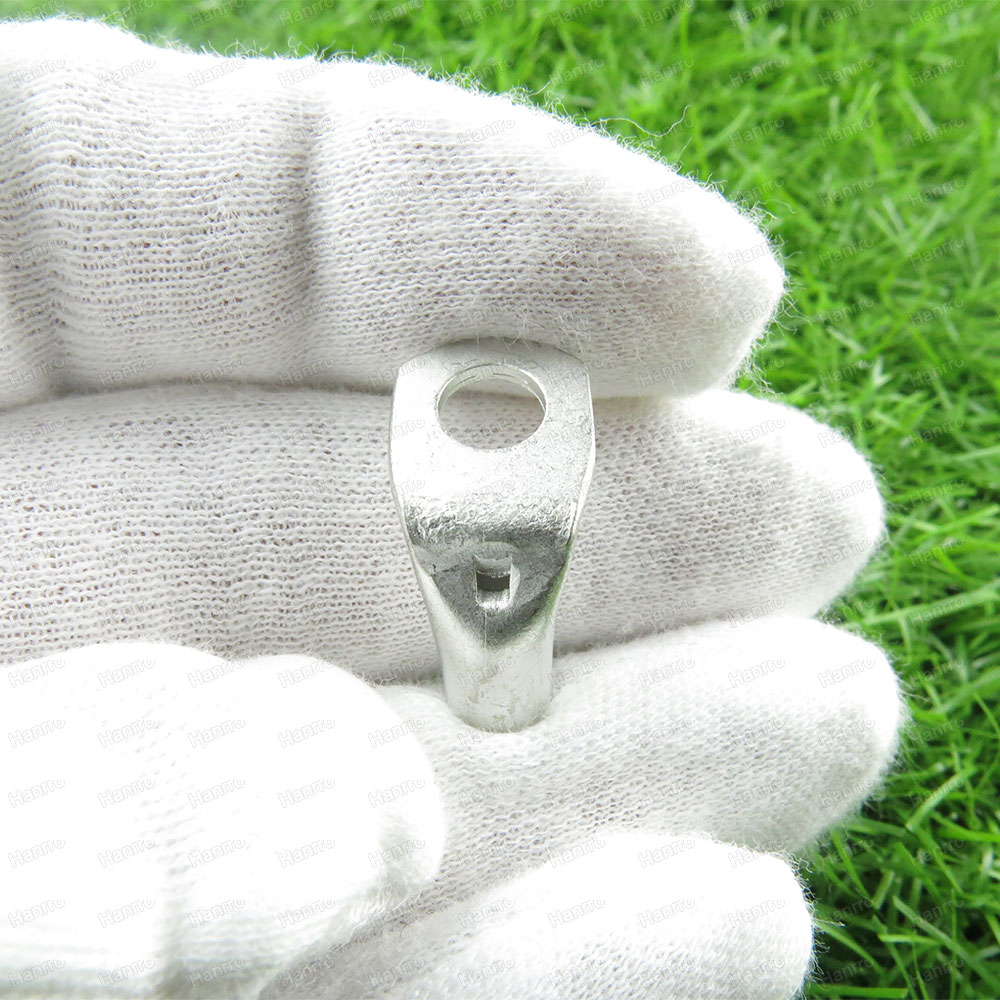

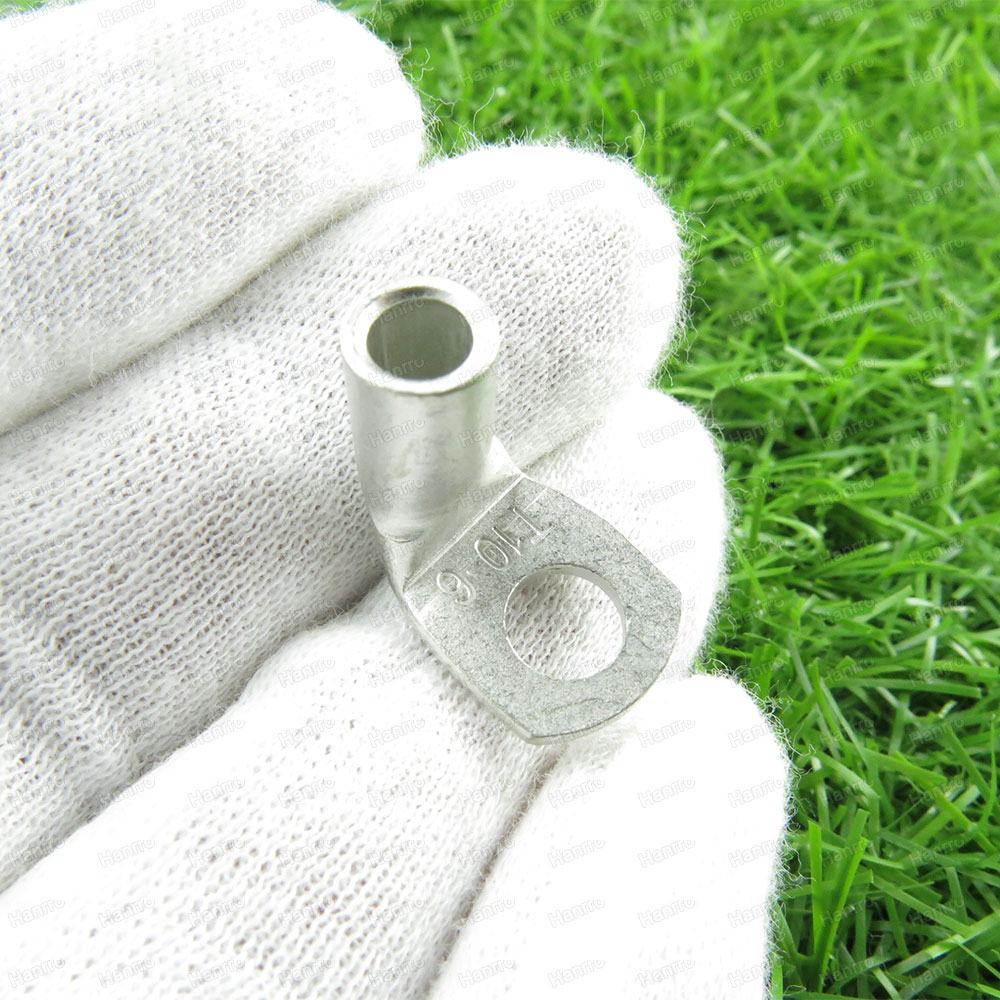

90 Degree Angled Cable Lugs are extremely convenient when the lug is to be attached in area where regular lug use would be awkward. The 90 degree tilted barrel allows to attach the cable at an angle.
90 Degree Angled Cable Lugs made from high strength , high conductivity electrolytic copper material to provide optimum connectivity for power and grounding application
Angled Cable Lugs are designed for use with many different code and flex conductor types and are available in a broad range of style and sizes including copper one-hole, two-hole and blank tongue lugs and splices
Features & Benefits

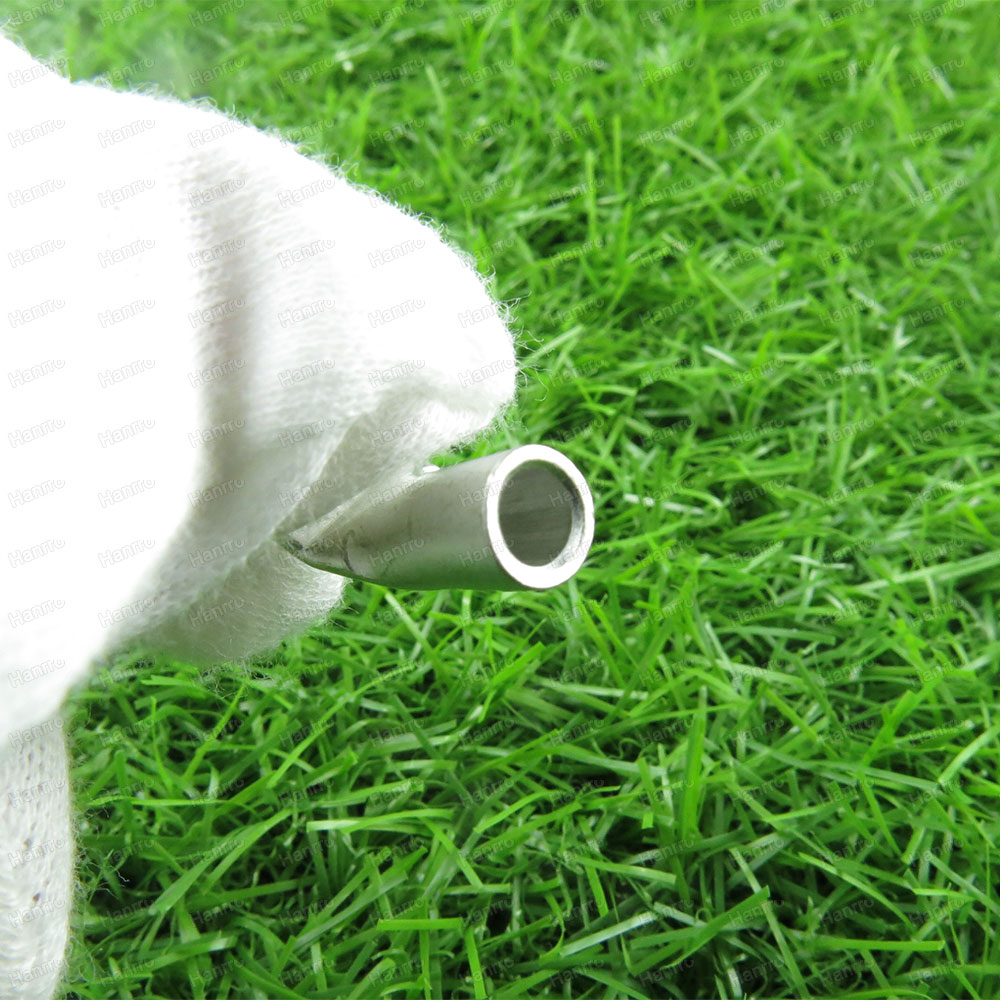

Inspection window to visually assure full conductor insertion
Tin-Plated to inhibit corrosion
UL Listed and CSA Certified to 35 KV and Temperature rated to 90℃
Tested by Telcordia-meets NEBS Level 3
For Streight , Please visit : Cable Lugs
For 45 Angled , Please visit : 45 Degree Angled Cable Lugs
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

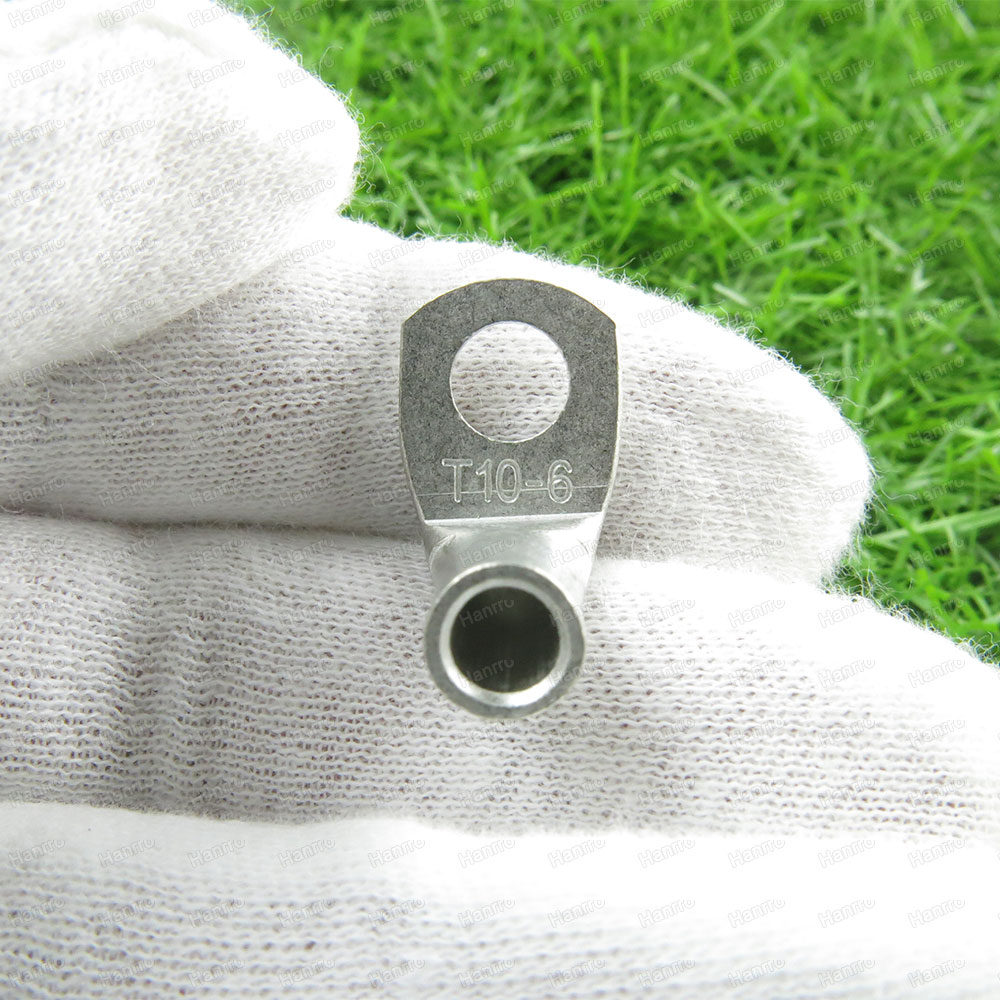

| Item No | Dimension | |||||
| Φ d2 | B | L1 | Φ D | Φ d | E | |
| T90-10/6 | 6.4 | 11.9 | 12.5 | 6.9 | 4.7 | 10.5 |
| T90-10/8 | 8.3 | 13.5 | 15.5 | 6.9 | 4.7 | 10.5 |
| T90-16/6 | 6.4 | 11.9 | 12 | 7.8 | 5.6 | 11 |
| T90-16/8 | 8.6 | 13.5 | 15.5 | 7.8 | 5.6 | 11 |
| T90-25/8 | 8.3 | 14 | 16 | 9.5 | 7.1 | 13 |
| T90-25/10 | 10.5 | 16 | 19 | 9.5 | 7.1 | 13 |
| T90-35/8 | 8.3 | 16.5 | 18 | 11 | 8.2 | 16 |
| T90-35/10 | 10.5 | 16.5 | 22 | 11 | 8.2 | 16 |
| T90-50/10 | 10.5 | 17.9 | 22 | 12.5 | 9.5 | 19 |
| T90-50/12 | 13 | 17.9 | 22 | 12.5 | 9.5 | 19 |
| T90-70/10 | 10.5 | 21.5 | 22 | 15 | 11.5 | 21 |
| T90-70/12 | 13 | 21.5 | 22 | 15 | 11.5 | 21 |
| T90-95/14 | 14.5 | 24.7 | 33 | 17 | 13.5 | 24 |
| T90-95/16 | 16.5 | 24.7 | 33 | 17 | 13.5 | 24 |
| T90-120/14 | 14.5 | 28.9 | 33 | 20 | 15.6 | 27 |
| T90-120/16 | 16.5 | 28.9 | 33 | 20 | 15.6 | 27 |
| T90-150/14 | 14.5 | 30.4 | 33 | 21 | 16.5 | 32 |
| T90-150/16 | 16.5 | 30.4 | 33 | 21 | 16.5 | 32 |
| T90-185/16 | 16.5 | 34 | 35 | 23.6 | 18.4 | 34 |
| T90-240/16 | 16.5 | 41 | 35 | 26.4 | 21.2 | 38 |
