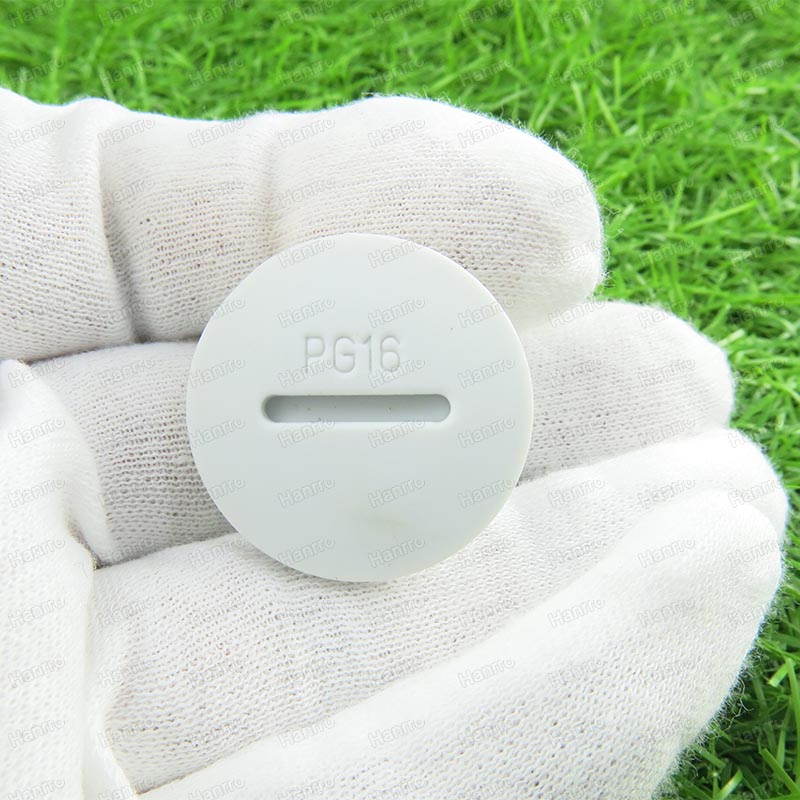

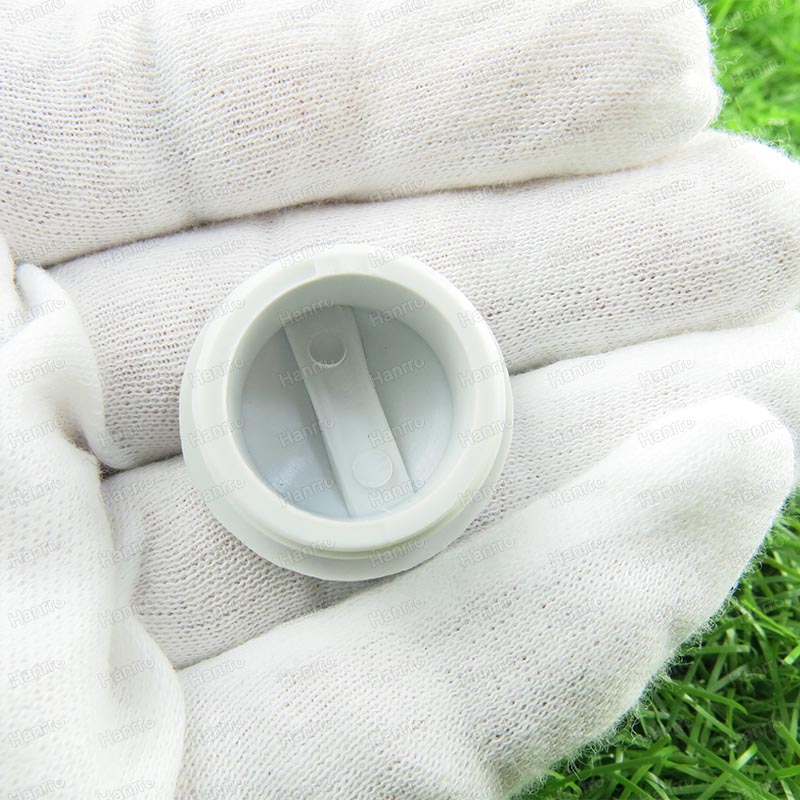

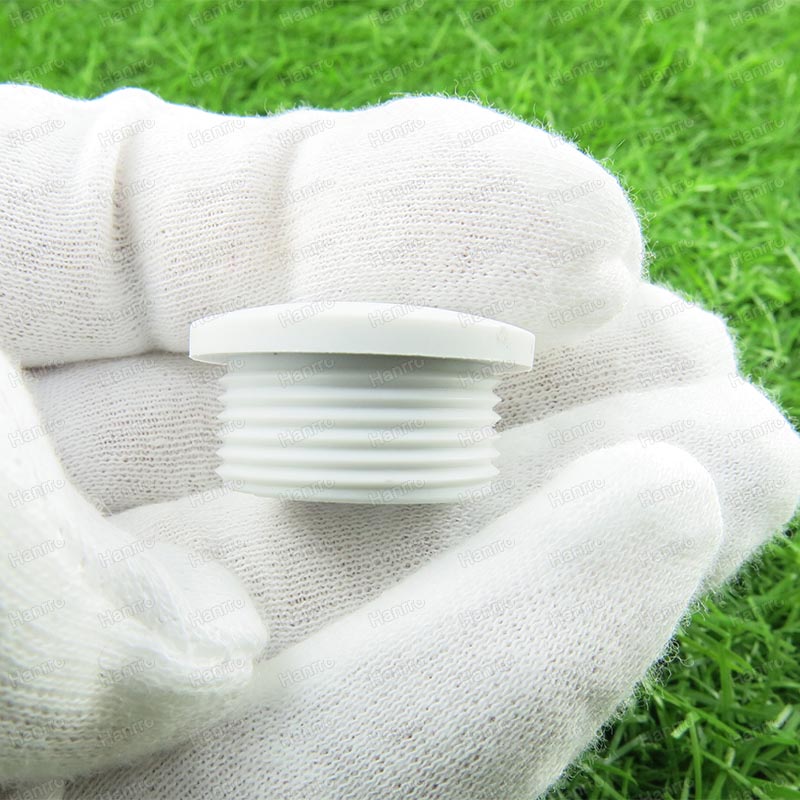

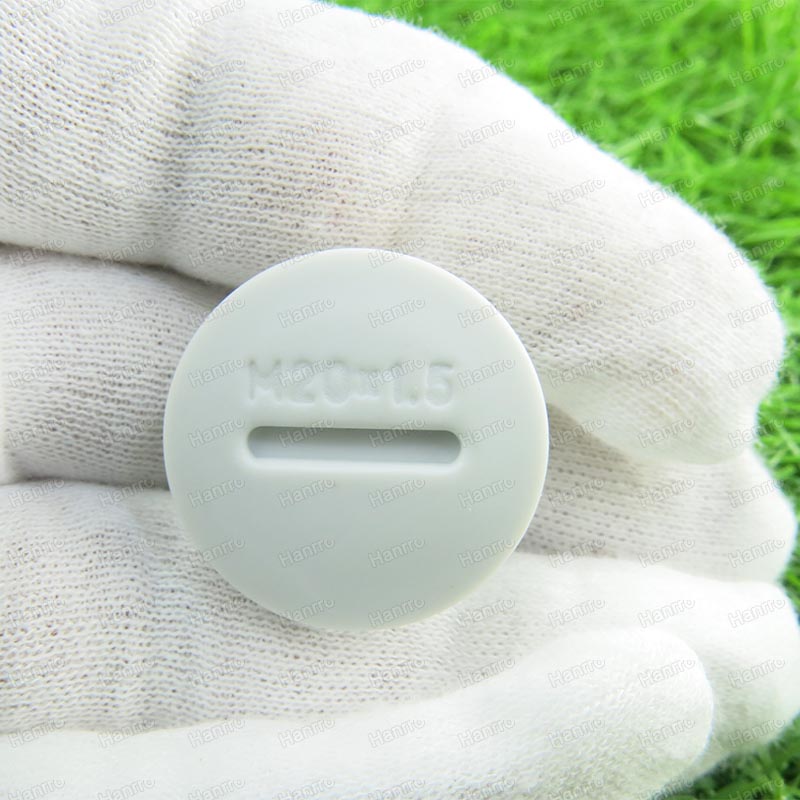

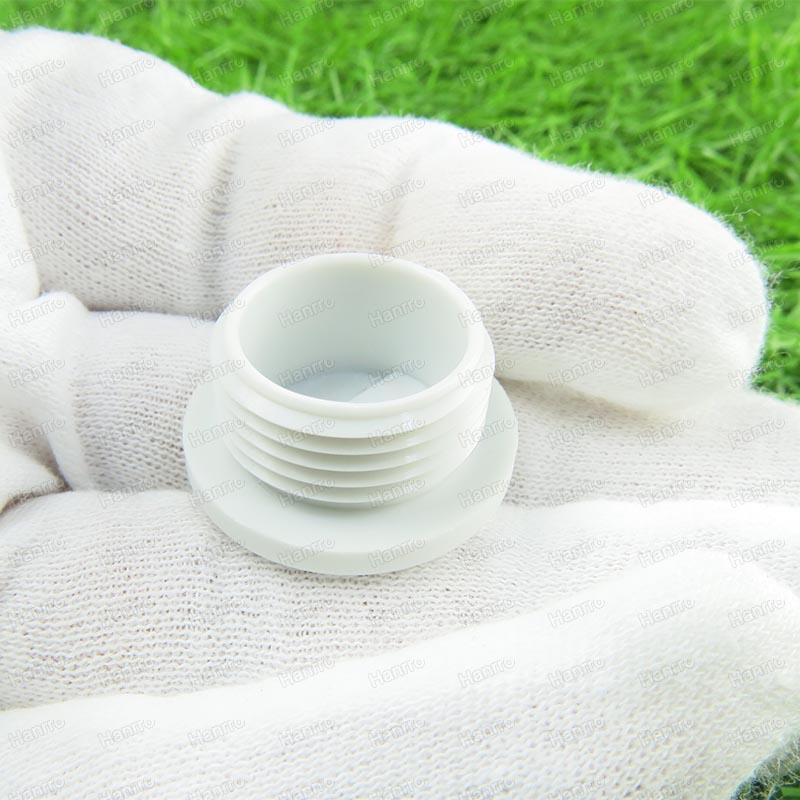

Nylon Blanking Plugs are ideal to seal off a hole, when no cable gland is used. They provide a clean finish that can either protect or cover the hole It assemble into cable glands to provide seal (can be fitted at a later date into installed fitting
Product Name : Nylon Blanking Plugs
Material : Halogen Free Nylon 6
Color : Grey , Black ,White , Red , Blue Etc
Operating Temperature : From -20℃ to +80℃
Flammability : UL94V-2
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| PG Thread Nylon Blanking Plugs | ||||

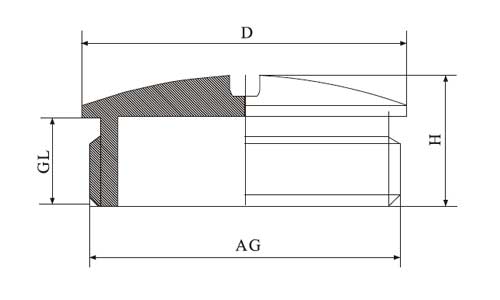

| Item No. | GL(mm) | H(mm) | D(mm) | AG(mm) |
| NBP-PG7 | 8 | 12.5 | 15 | 12.5 |
| NBP-PG9 | 8 | 13 | 19 | 15.2 |
| NBP-PG11 | 9 | 13 | 22 | 18.6 |
| NBP-PG13.5 | 9 | 13 | 25 | 20.4 |
| NBP-PG16 | 10 | 15 | 27 | 22.5 |
| NBP-PG21 | 10 | 15.5 | 33 | 28.3 |
| NBP-PG29 | 11 | 16 | 34 | 37 |
| NBP-PG36 | 13 | 18 | 55 | 47 |
| NBP-PG42 | 13 | 18.5 | 62 | 54 |
| NBP-PG48 | 14 | 19.5 | 68 | 59.3 |
| Metric Thread Nylon Blanking Plugs | ||||
| Item No. | GL(mm) | H(mm) | D(mm) | AG(mm) |
| NBP-M12 x 1.5 | 8 | 12.5 | 15 | 12 |
| NBP-M16 x 1.5 | 8 | 13 | 19 | 16 |
| NBP-M18 x 1.5 | 9 | 13 | 22 | 18 |
| NBP-M20 x 1.5 | 9 | 13 | 25 | 20 |
| NBP-M22 x 1.5 | 10 | 15 | 27 | 22 |
| NBP-M25 x 1.5 | 10 | 15.5 | 30 | 25 |
| NBP-M27 x 1.5 | 10 | 15.5 | 33 | 27 |
| NBP-M32 x 1.5 | 10 | 16 | 38 | 32 |
| NBP-M40 x 1.5 | 11 | 16 | 46 | 40 |
| NBP-M50 x 1.5 | 13 | 18 | 56 | 50 |
| NBP-M63 x 1.5 | 14 | 19 | 68 | 63 |
