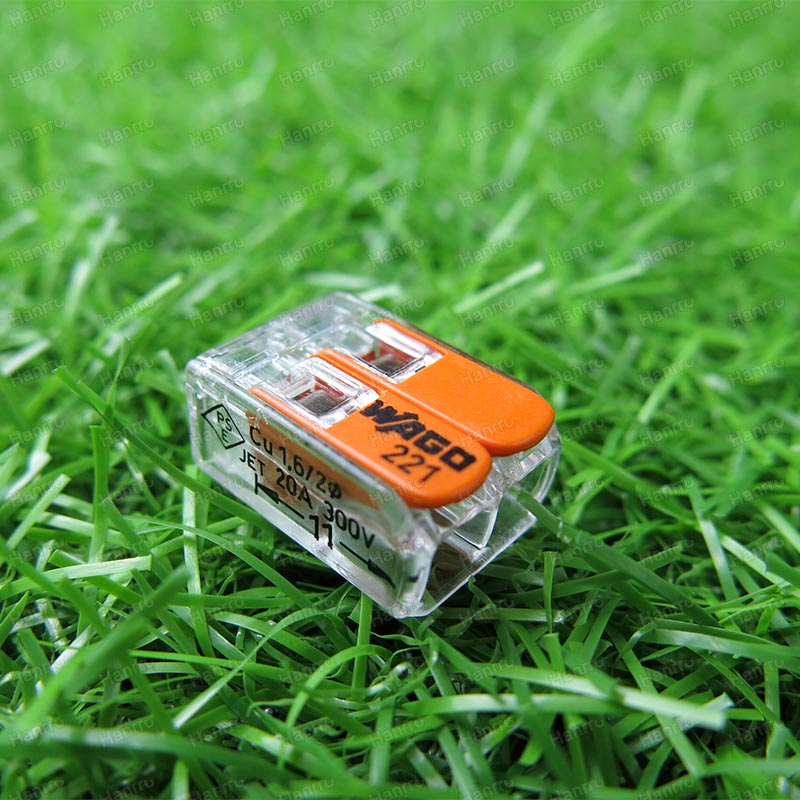

WAGO 221-412 Lever Nuts

221-412 WAGO compact splicing connectors easily, quickly, and safely connect solid, stranded, and fine stranded wires ranging from 24-12 AWG (0.14-4mm²)2-conductor; with operating levers; transparent housing.

New 221-412 Minimize space consumption in the junction box —by 40% compared to 222-412. Visually inspect for proper strip length and complete wire insertion through its transparent housing. Operate comfortably and with lower operating forces by using familiar orange levers

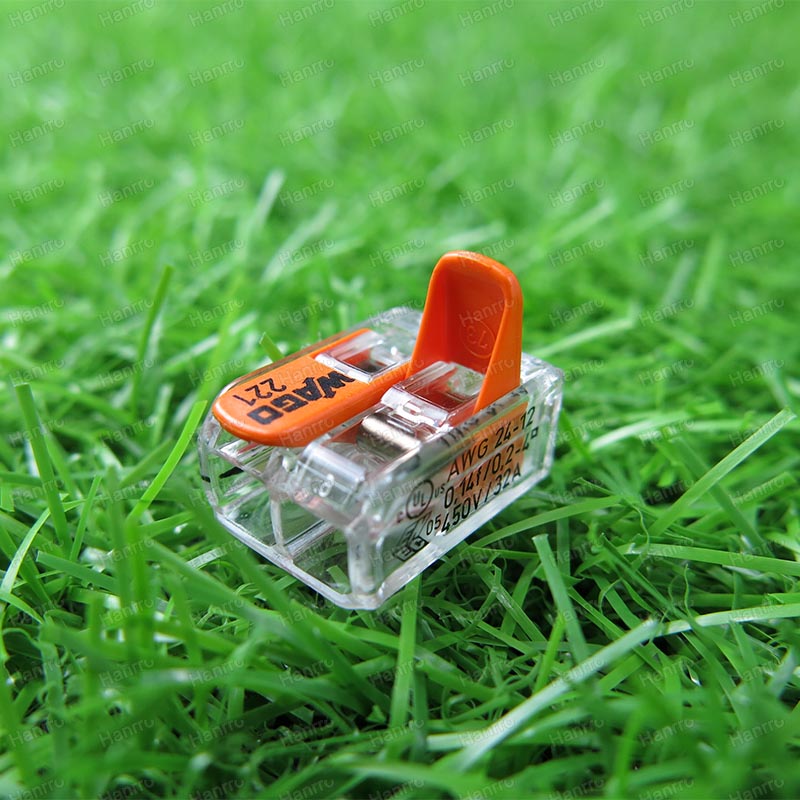

Pull the lever up, insert a stripped conductor, and push lever back down – done

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

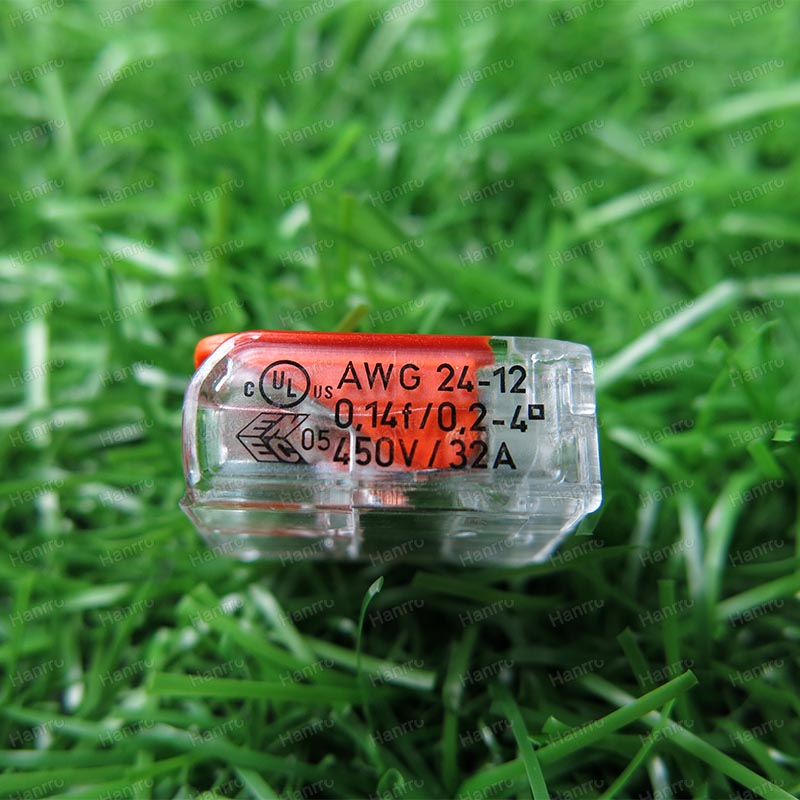

Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (II / 2)
450 V
Rated impulse voltage (II / 2) 4 kV
Rated current 32 A
Connection data
Connection technology
CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross section 4 mm²
Solid conductor 0.2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0.14 … 4 mm² / 24 … 12 AWG

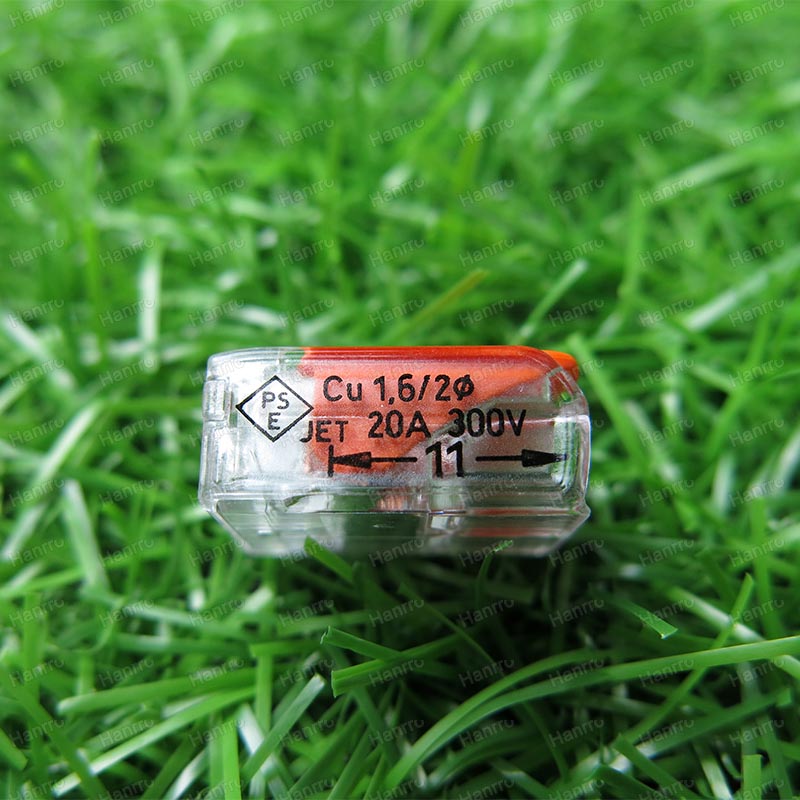

Strip length 11 mm / 0.43 inch
Total number of connection points 2
Total number of potentials 1
Type of wiring Side-entry wiring
Leiterquerschnitte eindrähtig 0.2 mm²
Less
Geometrical Data
Width
13.1 mm / 0.516 inch
Height 8.3 mm / 0.327 inch
Depth 18.6 mm / 0.732 inch
Plug width 13.1 mm / 0.516 inch
Material Data
Color
Transparent
Flammability class per UL94 V2
Weight 1.6 g
Environmental Requirements
Continuous operating temperature
105 °C
T-Marking per EN 60998 T85
Commercial data
Product Group
7 (Push Wire Conn.)
Country of origin DE
GTIN  4050821808435

WAGO 221 Series-Country Specific Approvals
WAGO 221 Series-Shipping Approvals
