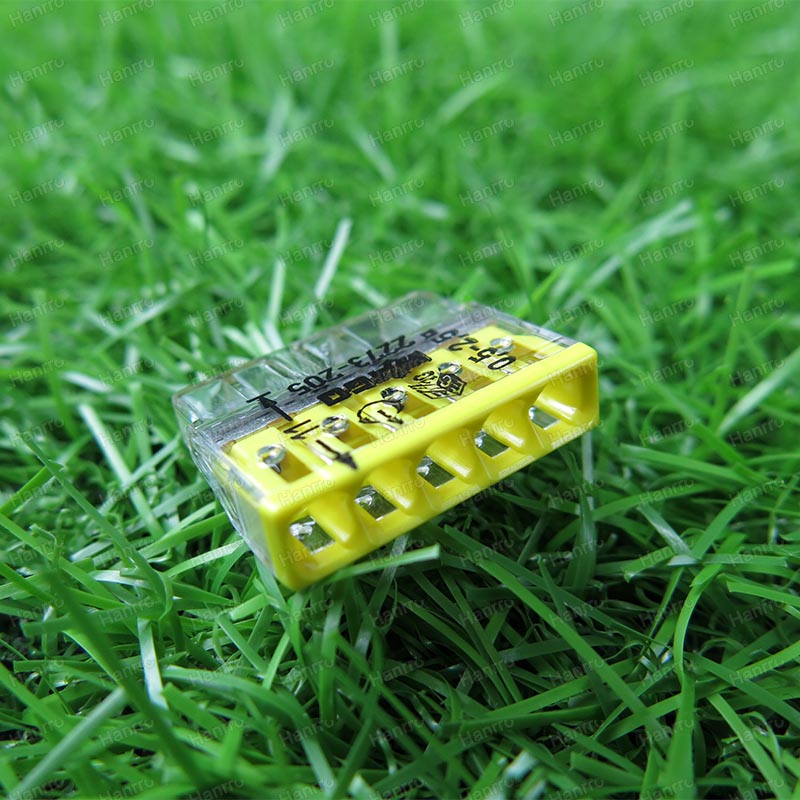

2273-205 Compact Push Wire Connectors

2273-205 is more than 50% smaller than Original 273 Series, which has proven itself in Billions of applications. The transparent enclosure of the connector provides secure and error-free connection Solid conductors.The 2273-205 COMPACT PUSH WIRE® Connector for Junction Boxes – Small is Big.

How to develop the best push-wire connectors ever? Minimize the space requirements in the socket while Ensuring maximum convenience, ease of use, safety and reliability:Convenience from every angle.Small yet Powerful.

The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check

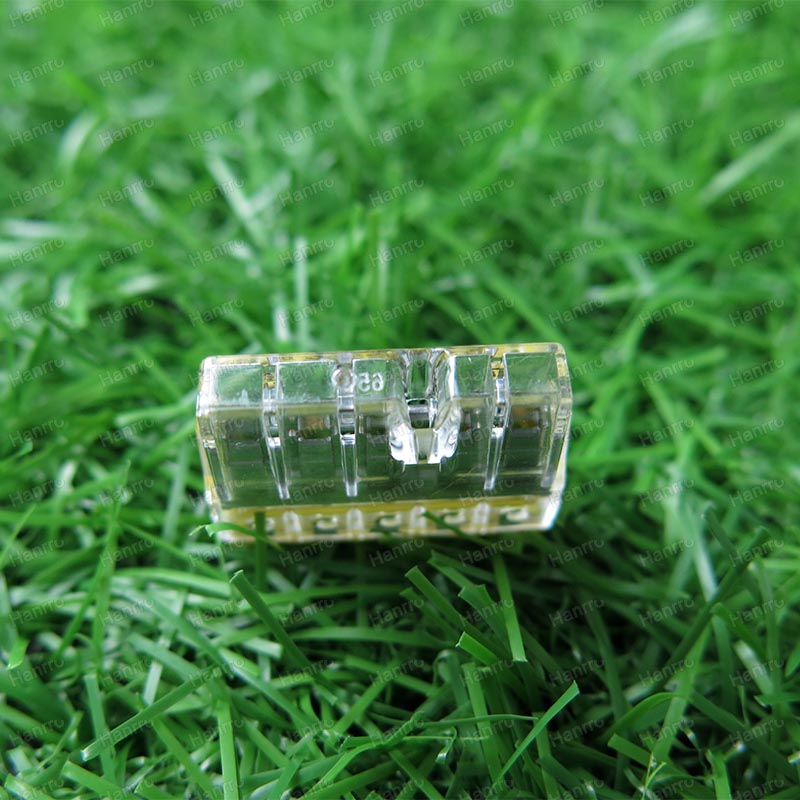

If the conductors have been stripped properly, ensuring protection against accidental contact. The test slots are

2273-205

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (II / 2)
450 V
Rated impulse voltage (II / 2) 4 kV
Rated current 24 A
Connection data
Connection technology
PUSH WIRE®
Actuation type Push-in
Connectable conductor materials Copper
Aluminum

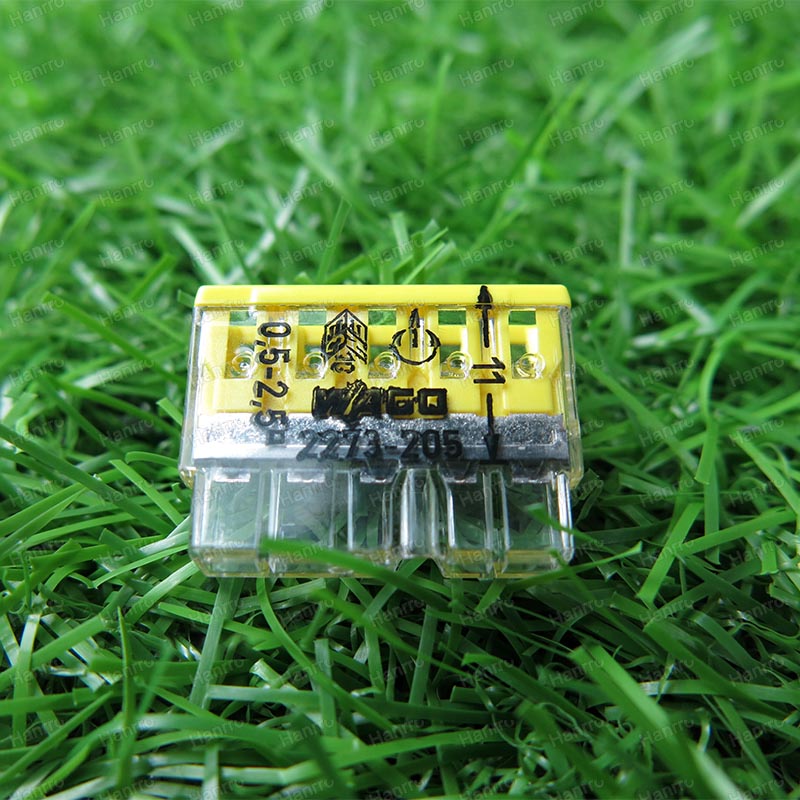

Solid conductor 0.5 … 2.5 mm² / 20 … 14 AWG
Strip length 11 mm / 0.43 inch
Total number of connection points 5
Total number of potentials 1
Type of wiring Side-entry wiring
Leiterquerschnitte eindrähtig 0.5 mm²
More

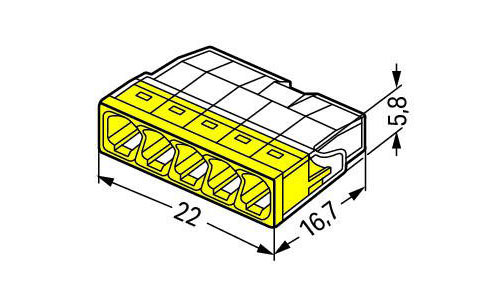

Geometrical Data
Width
22 mm / 0.866 inch
Height 5.8 mm / 0.228 inch
Depth 16.7 mm / 0.657 inch
Plug width 22 mm / 0.866 inch
Material Data
Color
transparent
Cover color yellow
Flammability class per UL94 V2
Fire load 0.03 MJ
Weight 1.581 g
Environmental Requirements
Continuous operating temperature
105 °C
T-Marking per EN 60998 T60
Commercial data
Product Group
7 (Push Wire Conn.)
Country of origin DE
GTIN  4050821027874

WAGO 2273 Series-Approvals
