285-1167 2 Conductor Through Terminal Block with Fixing Flanges are designed for Conductors of 185mm2. It have Lateral Marker Slot and Suitable for DIN 35 x 15 Rail. Dark Grey Yellow Color Surface Body

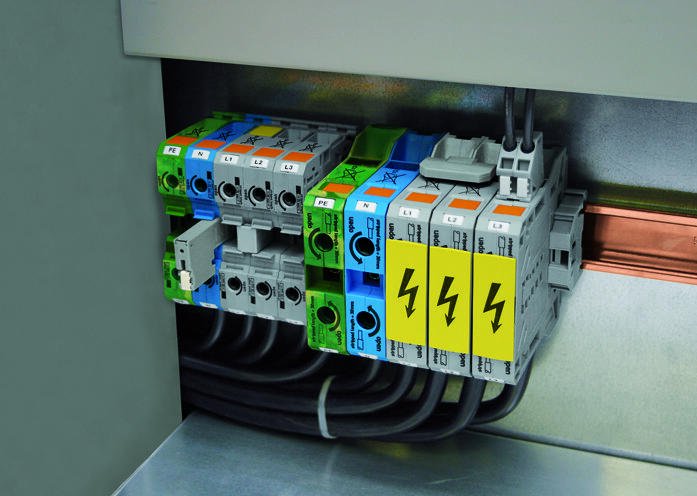

Suitable for Every Application
1 Meets the most stringent requirements, including those specified for railway and marine applications
2 Heat- and cold-resistant –even under the heaviest of loads
Always Reliable
1 Optimum clamping force –independent of operator skill
2 100% reliable with vibration-proof, thermal cycling resistant, gas-tight connections

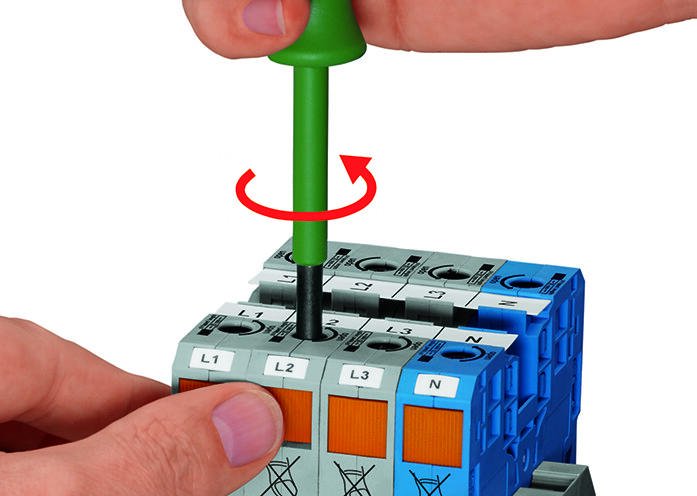

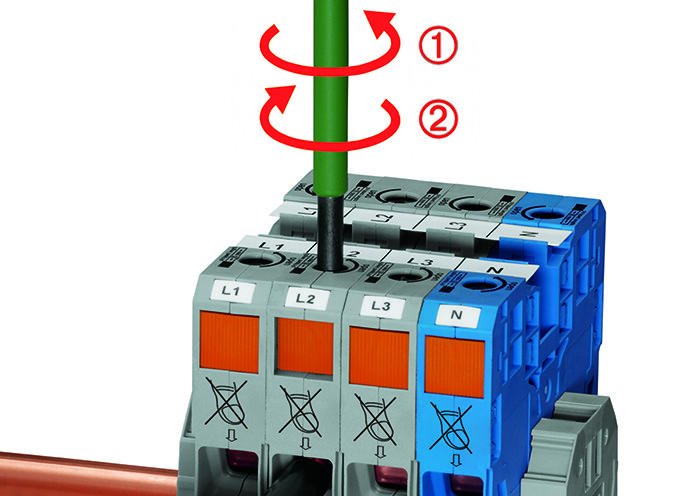

Fast Termination

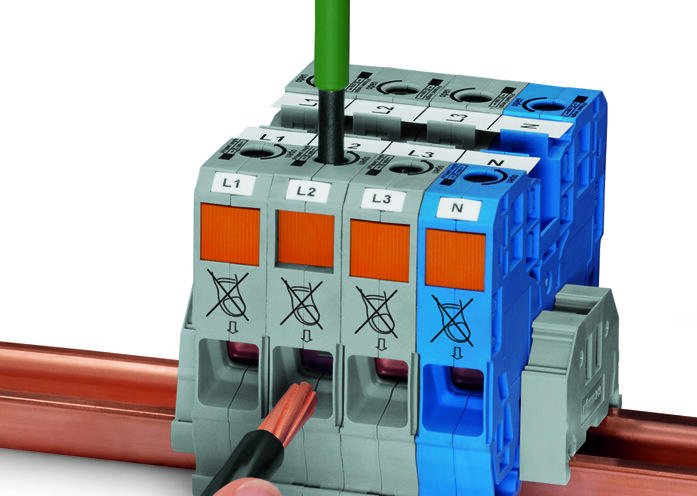

Eliminate time-consuming preparation – no ring terminals or ferrules required
No expensive torque wrenches or calibration required
Up to 60% faster than wiring with screw terminal blocks
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
Material Data
Color Grey-Yellow
Insulating Material PA66
Clamping Spring Material Chrome Nickel Spring Steel
Contact Material Copper
Rating per IEC/EN 60664-1
Rated Voltage (III/3) 1000V
Rated Impulse Voltage (III/3) 12kV
Rated Current 353A
Connection Data
Connection Technoloty POWER CAGE CLAMP
Solid Conductor 50-185mm2 / 1/0-350kcmil
Stranded Conductor 50-185mm2 / 1/0-350kcmil
Fine Stranded Conductor 50-185mm2 / 1/0-350kcmil
Strip Length 45mm
No of Poles 2
Type of Wiring Side Entry Wiring
Geometrical Data
Width 32mm
Height from Upper Edge of Din-35 Rail 116mm
Depth 133mm
For more details specification , Please visit : 285-1167
