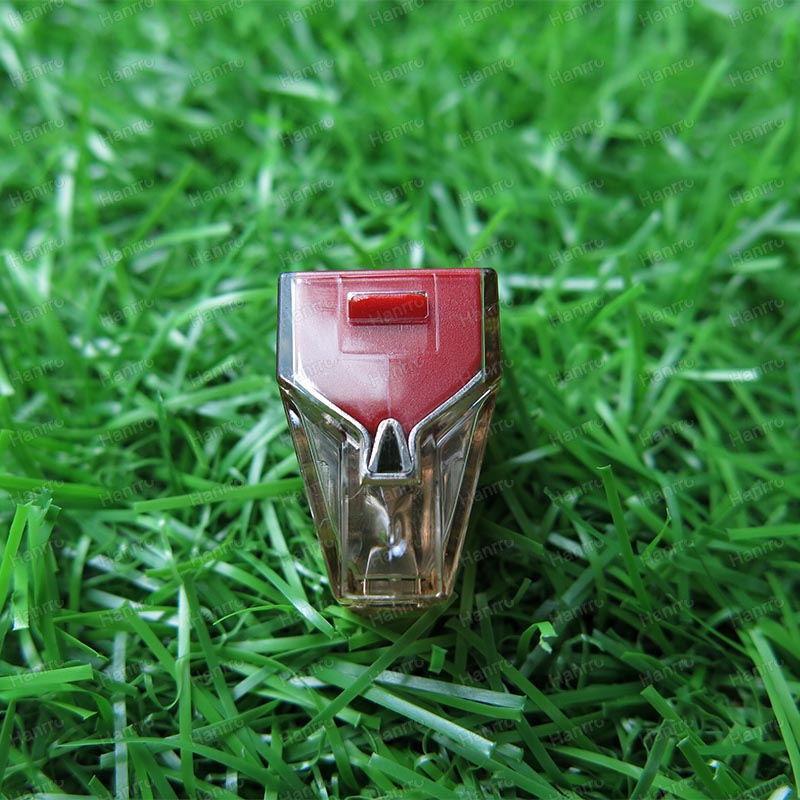

773-604 Push Wire Connectors

773-604 Push Wire Connectors for junction boxes now provide an immediate solution for use. With solid conductors with cross-sections up 4.0 mm². This new series, with its compact design, uses 30 % less space than the 273 Series. The transparent housing also enables the electrician or installer to see at a glance Whether all the conductors have been fully inserted and properly connected.

773-604 have red face to identifity. Package usually come with 100 .When you want to use Simply strip wire and push-in

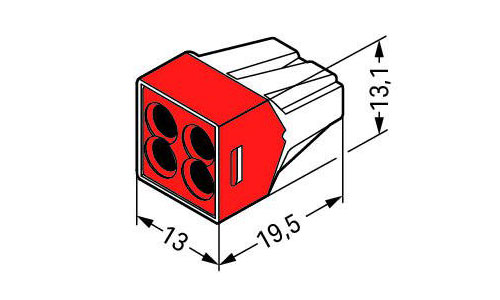

773-604 Size

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (II / 2)
400 V
Rated impulse voltage (II / 2) 4 kV
Rated current 32 A


Connection data
Connection technology
PUSH WIRE®
Actuation type Push-in
Connectable conductor materials Copper
Aluminum
Solid conductor 1.5- 4mm² / 16-12 AWG
Strip length 12 mm / 0.47 inch
Total number of connection points 4
Total number of potentials 1
Type of wiring Side-entry wiring
Leiterquerschnitte eindrähtig 1.5 mm²
More


Geometrical Data
Width
13 mm / 0.512 inch
Height 13.1 mm / 0.516 inch
Depth 19.5 mm / 0.768 inch
Plug width 13 mm / 0.512 inch
Material Data
Color
brown clear
Cover color red
Flammability class per UL94 V2
Fire load 0.019 MJ
Weight 2.43 g
Commercial data
Product Group
7 (Push Wire Conn.)
Country of origin CN
GTIN 4055143243681

WAGO 773 Series-Approvals

WAGO 773 Series Ship Approvals

WAGO 773 Series-UL Approvals
