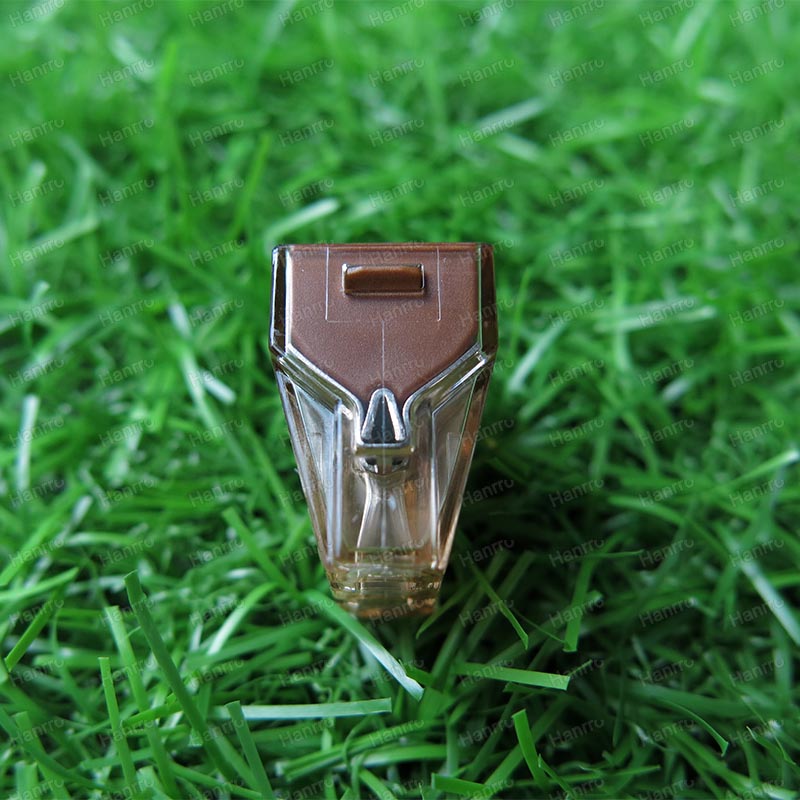

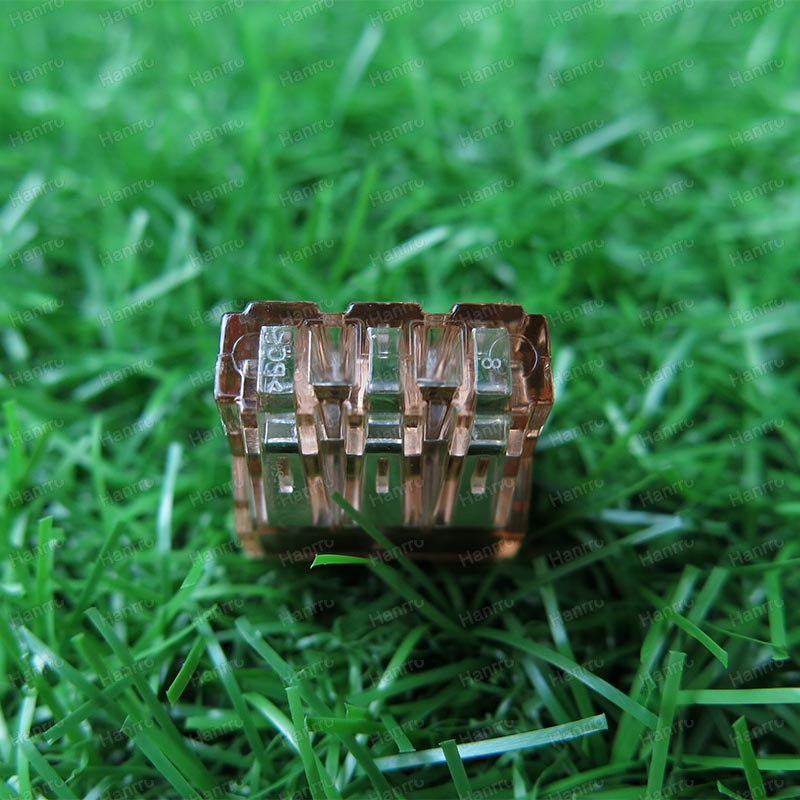

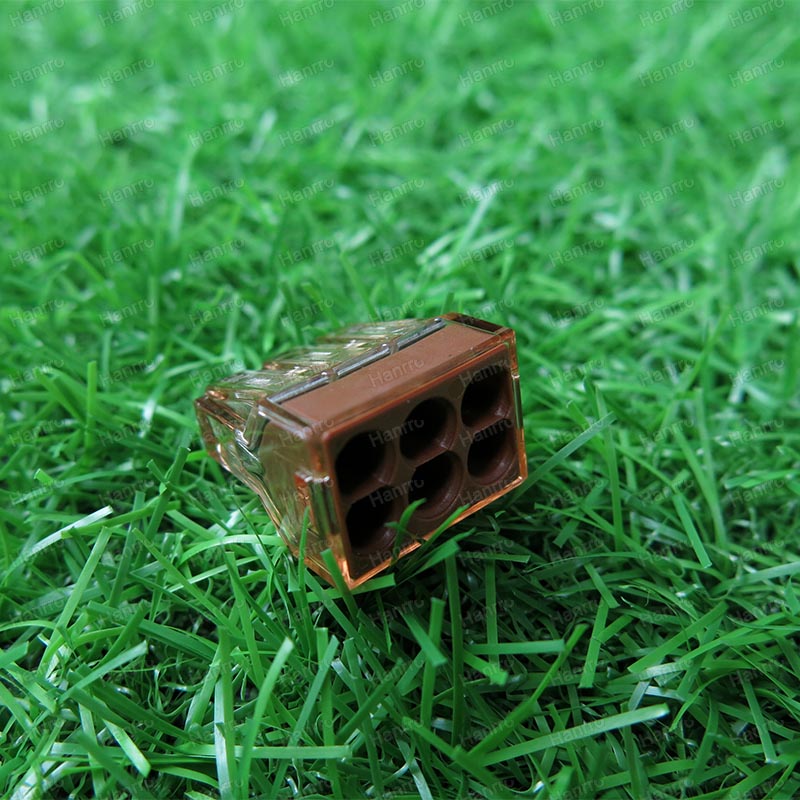

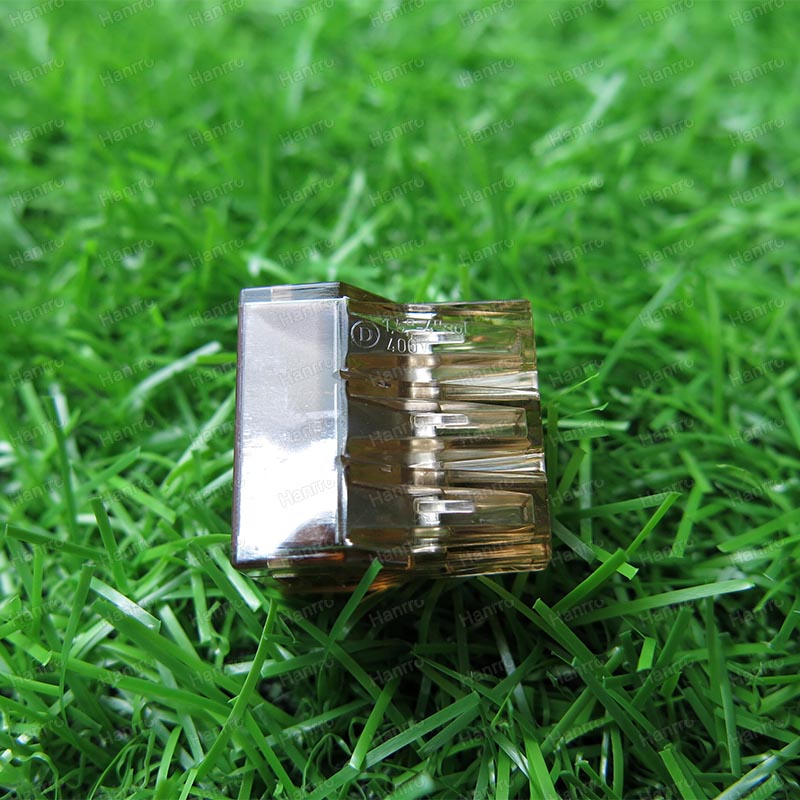

773-606 Push Wire Connectors for junction boxes now provide an immediate solution for use. With solid conductors with cross-sections up 4.0 mm². This new series, with its compact design, uses 30 % less space than the 273 Series. The transparent housing also enables the electrician or installer to see at a glance Whether all the conductors have been fully inserted and properly connected.
773-606 have brown face to identifity. Package usually come with 50 .When you want to use Simply strip wire and push-in
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Electrical data | |
|
Ratings per IEC/EN 60664-1
|
|
|
Rated voltage (II / 2)
|
400 V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 32 A |
|
Connection data
|
|
|
Connection technology
|
PUSH WIRE® |
| Actuation type | Push-in |
| Connectable conductor materials | Copper |
| Aluminum | |
| Solid conductor | 1.5- 4mm² / 16-12 AWG |
| Strip length | 12 mm / 0.47 inch |
| Total number of connection points | 6 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Leiterquerschnitte eindrähtig | 1.5 mm² |
| More | |
|

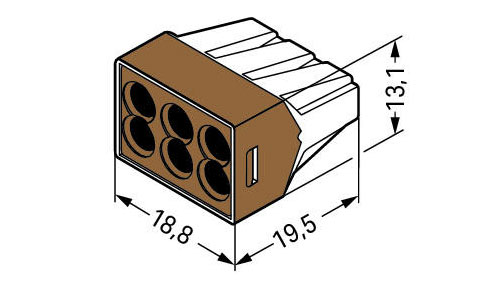

Geometrical Data
|
|
|
Width
|
18.8 mm / 0.74 inch |
| Height | 13.1 mm / 0.516 inch |
| Depth | 19.5 mm / 0.768 inch |
| Plug width | 18.8 mm / 0.74 inch |
|
Material Data
|
|
|
Color
|
brown clear |
| Cover color | brown |
| Flammability class per UL94 | V2 |
| Fire load | 0.029 MJ |
| Weight | 3.53 g |
|
Commercial data
|
|
|
Product Group
|
7 (Push Wire Conn.) |
| Country of origin | CN |
| GTIN | 4055143088671 |
