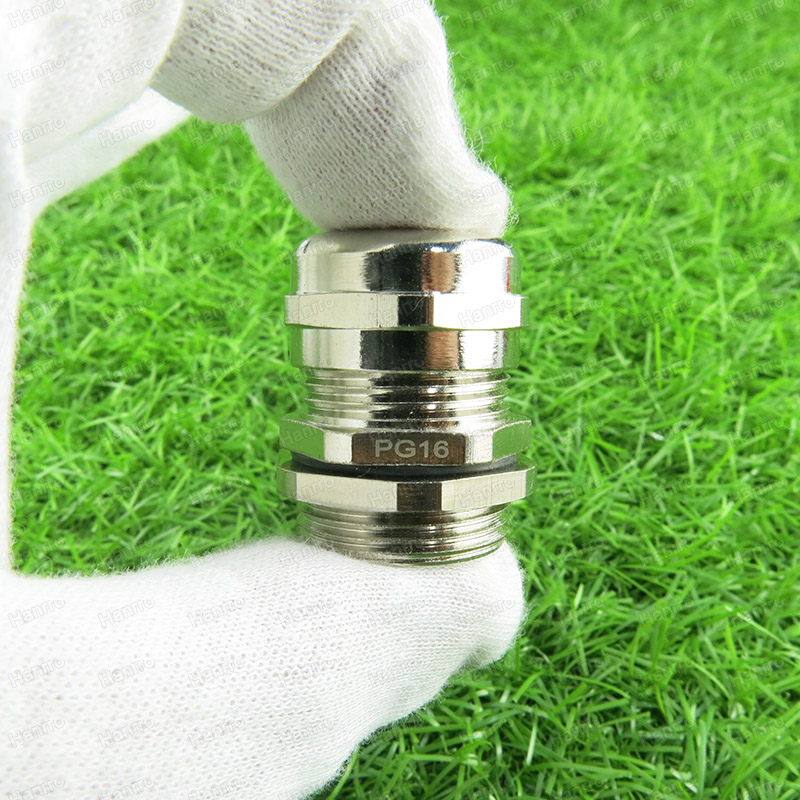

Brass Cable Glands with Long PG Thread

Brass Cable Glands with Long PG Thread made of brass (nickel-plated) . The Thread Length will be longer than normal , so that It can suitable for thicker surface. They are robust and extremely suitable for industrial use. The Size come from PG7 to PG48. There is a huge assortment available for both common and unusual solutions. The uncompromising use of high-quality materials ensures the outstanding quality of these cable glands.

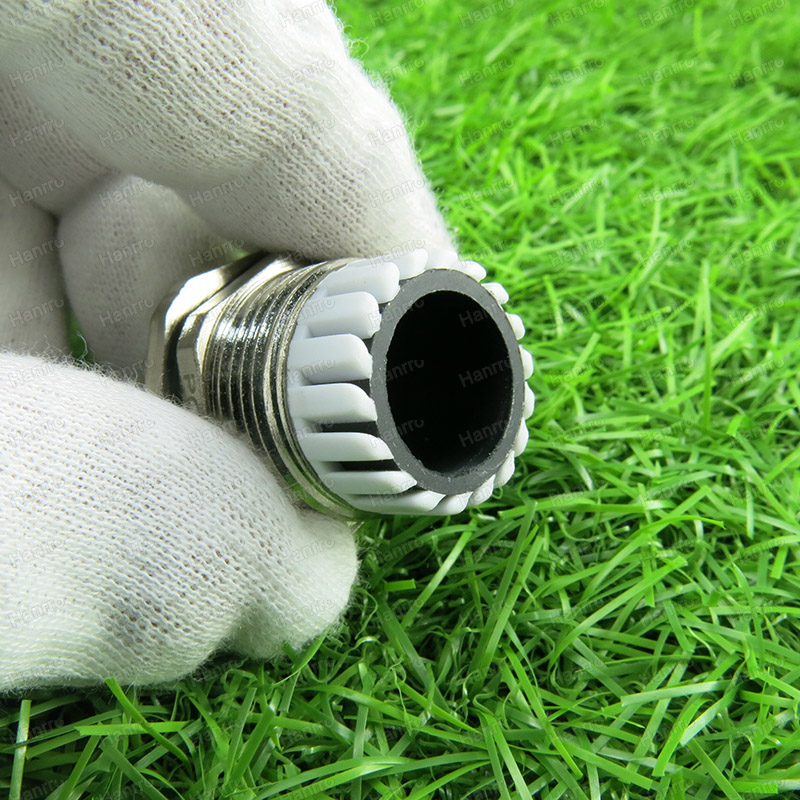

Clamping Insert : Nylon 66 V2 According to UL94 ( V0 can be done on request)

Material : Nickel Plated Brass

Material of O-Ring : NBR

NEMA Type Rating : 4 , 4X , 6

Protection Class : IP68-10 Bar , IP69K

Seal : NBR

Temperature Range : From -40℃ to + 100℃

If you need other material of sealing , such as Silicone , EPDM Etc

Please contact with us by email or call



tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Brass Cable Glands-Drawing

Item No Cable Range(mm) GL(mm) H(mm) SW1/SW2(mm) AG(mm) Panel Mounting Hole(mm)
LB-PG7 3-6.5 10 18 14 12.5 12.5-12.8
LB-PG7 2-5 10 18 14 12.5 12.5-12.8
LB-PG9 4-8 10 20 17 15.2 15.2-15.5
LB-PG9 2-6 10 20 17 15.2 15.2-15.5
LB-PG11 5-10 10 21 20 18.6 18.6-18.9
LB-PG11 3-7 10 21 20 18.6 18.6-18.9
LB-PG13.5 6-12 10 22 22 20.4 20.4-20.7
LB-PG13.5 5-9 10 22 22 20.4 20.4-20.7
LB-PG16 10-14 10 23 24 22.5 22.5-22.8
LB-PG16 7-12 10 23 24 22.5 22.5-22.8
LB-PG21 13-18 12 25 30 28.3 28.3-28.6
LB-PG21 9-16 12 25 30 28.3 28.3-28.6
LB-PG29 18-25 12 30 40 37 37-37.3
LB-PG29 13-20 12 30 40 37 37-37.3
LB-PG36 22-32 15 35 50 47 47-47.3
LB-PG36 20-26 15 35 50 47 47-47.3
LB-PG42 32-38 15 38 57 54 54-54.3
LB-PG42 25-31 15 38 57 54 54-54.3
LB-PG48 37-44 15 40 64 59.3 59.3-59.6
LB-PG48 29-35 15 40 64 59.3 59.3-59.6
