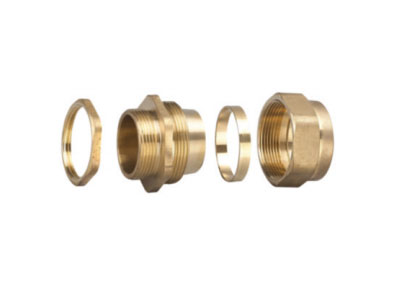

BW Cable Glands are used with all types of steel wire armoured (SWA) and aluminium cables. Their design enables strong clamping of the armour wire to ensure mechanical retention and electrical continuity. Unlike CW glands, BW cable glands are designed for INDOOR use, where the electrical application does not require a weatherproof seal. BW cable glands are manufactured from high quality brass and are easy to install. Each kit comes with gland(s), steel locknut(s) and earth tag(s). Standard and Low Smoke Fume (LSF) BW cable glands are also available. Built to BS6121 standards.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Thread | Thread size“C | Minimum length ofthread”D” | Cable Range Max”A”(mm) | Cable Range Max”B”(mm) | |
| METRIC | NPT | ||||
| HRO-BW20S | M20 | 1/2″ | 10 | 11.5 | 15.5 |
| HRO-BW20L | M20 | 1/2″ | 10 | 14 | 20.5 |
| HRO-BW25S | M25 | 3/4″ | 10 | 18 | 24 |
| HRO-BW25L | M25 | 3/4″ | 10 | 20 | 27 |
| HRO-BW32S | M32 | 1″ | 10 | 26.3 | 33.5 |
| HRO-BW32L | M32 | 1“ | 10 | 26.3 | 33. 50 |
| HRO-BW40S | M40 | 1.1/4″ | 13 | 31.5 | 39.5 |
| HRO-BW40L | M40 | 1.1/4″ | 13 | 32 | 40 |
| HRO-BW50S | M50 | 1.1/2″ | 13 | 38.2 | 46. 30 |
| HRO-BW50L | M50 | 2″ | 13 | 44 | 52. 60 |
| HRO-BW63S | M63 | 2″ | 14 | 50.1 | 59. 00 |
| HRO-BW63L | M63 | 2.1/2″ | 14 | 56 | 65. 30 |
| HRO-BW75S | M75 | 2.1/2″ | 15 | 62 | 71. 60 |
| HRO-BW75L | M75 | 3“ | 15 | 68 | 78. 00 |
| HRO-BW90 | M90 | 3″ | 20 | 80.5 | 91. 00 |
