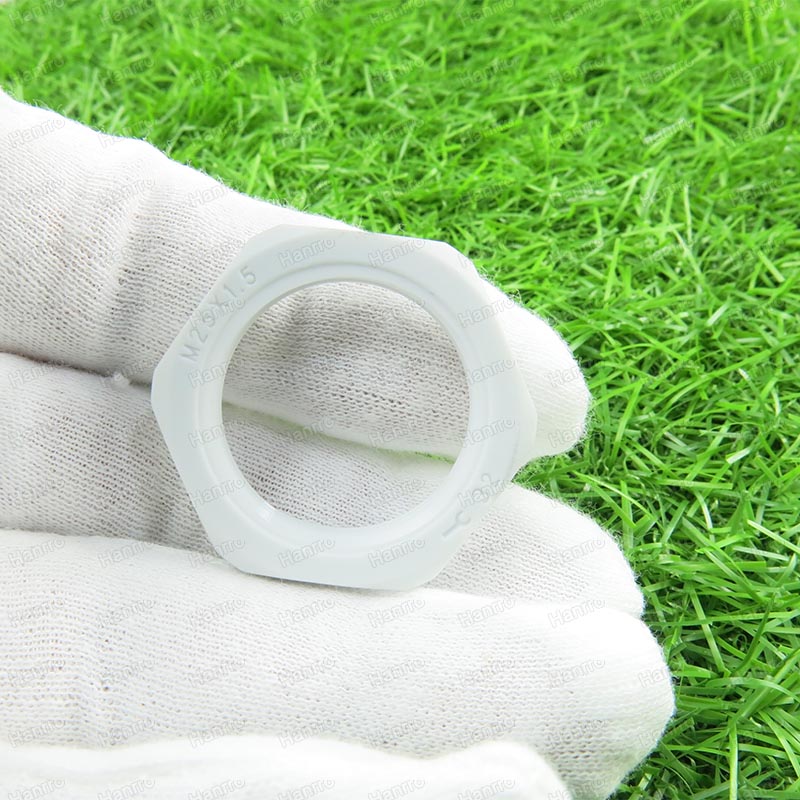

Cable Gland Locknuts are used for securing cable glands in position, and are used on the cable gland entry thread. They ensure that the cable gland doesn’t come loose easily, which is highly desired due to the sheer amount of power that could be flowing through them at any one time. Our locknuts will go a long way towards keeping everything together, even in areas where stress on the cable gland is more frequent
Product Name : Cable Glands Locknuts
Series : PG , Metric , NPT , G, MG
Material : Halogen Free Nylon 6
Color : Grey , Black , White , Red , Blue Etc
Operating Temperature : From -20℃ to +80℃
Flammability : UL94V-2 ( UL94V-0 can be done as requirement )
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

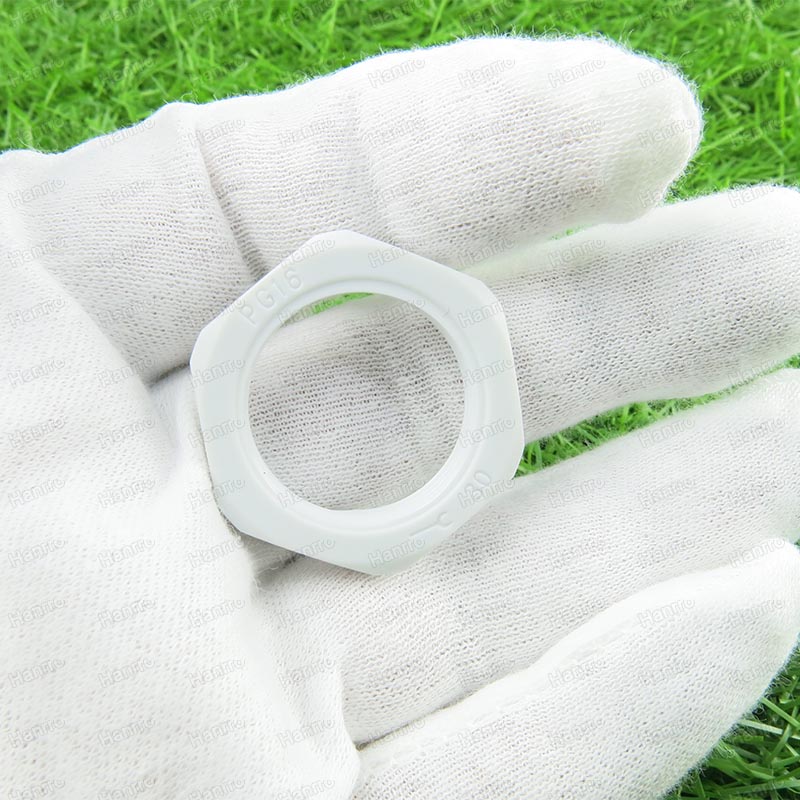

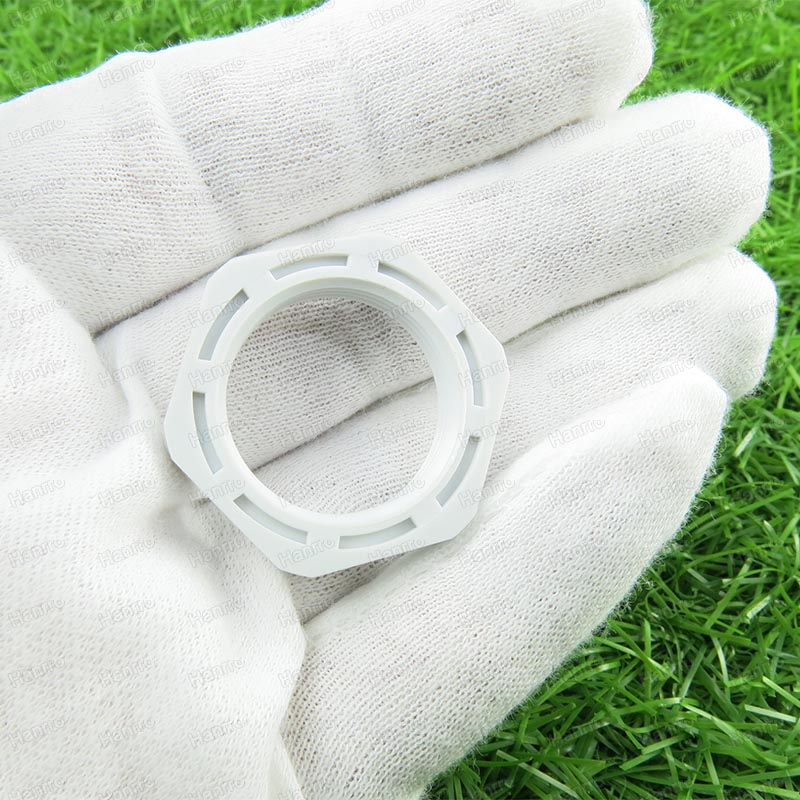

| PG Thread | ||

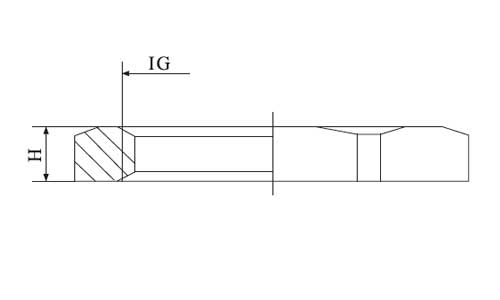

| Item No. | Thickness H(mm) | Spanner Size(mm) |
| NLN-PG7 | 5 | 18 |
| NLN-PG9 | 5 | 22 |
| NLN-PG11 | 5 | 24 |
| NLN-PG13.5 | 5.5 | 27 |
| NLN-PG16 | 6 | 30 |
| NLN-PG19 | 6 | 30 |
| NLN-PG21 | 7 | 36 |
| NLN-PG25 | 7 | 37 |
| NLN-PG29 | 7 | 45 |
| NLN-PG36 | 8 | 58 |
| NLN-PG42 | 8 | 63 |
| NLN-P48 | 8 | 69 |

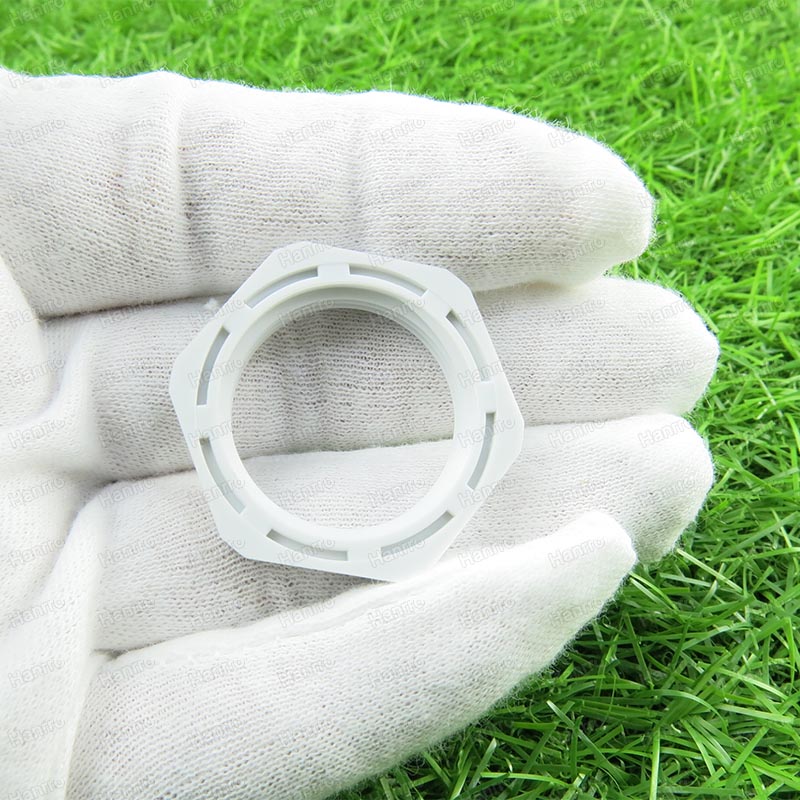

| Metric Thread | ||
| Item No. | Thickness H(mm) | Spanner Size(mm) |
| NLN-M12*1.5 | 5 | 17 |
| NLN-M14*1.5 | 5 | 19 |
| NLN-M16*1.5 | 5 | 22 |
| NLN-M18*1.5 | 5 | 24 |
| NLN-M20*1.5 | 5.5 | 27 |
| NLN-M22*1.5 | 6 | 30 |
| NLN-M24*1.5 | 6 | 30 |
| NLN-M25*1.5 | 6.5 | 32 |
| NLN-M27*1.5 | 6.5 | 36 |
| NLN-M30*1.5 | 7 | 37 |
| NLN-M32*1.5 | 7 | 39 |
| NLN-M40*1.5 | 7 | 50 |
| NLN-M50*1.5 | 8 | 60 |
| NLN-M63*1.5 | 8 | 74 |
| NLN-M70*2 | 9 | 81 |
| NLN-M75*2 | 10 | 86 |

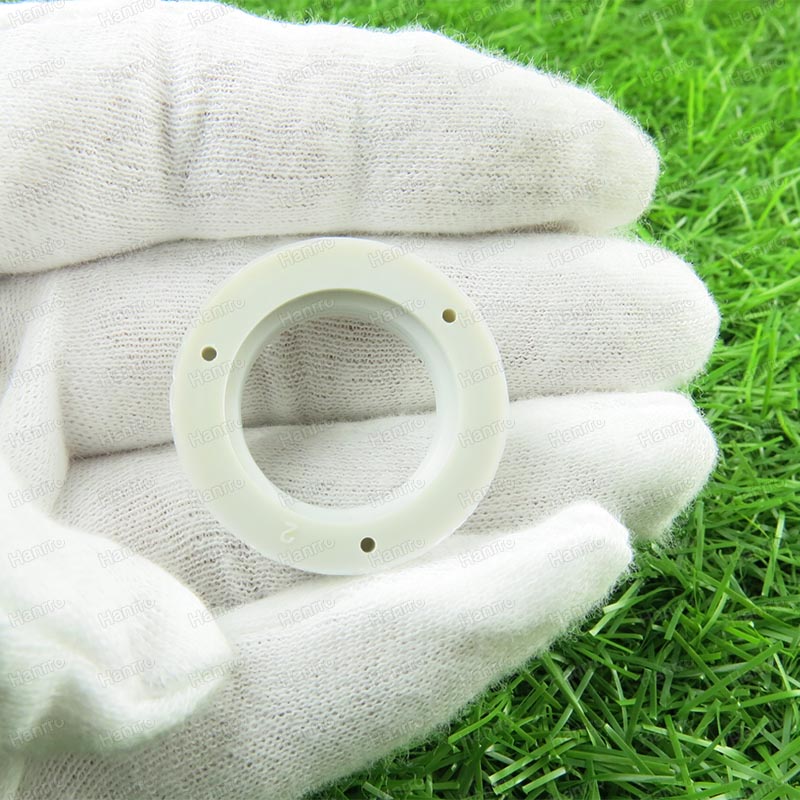

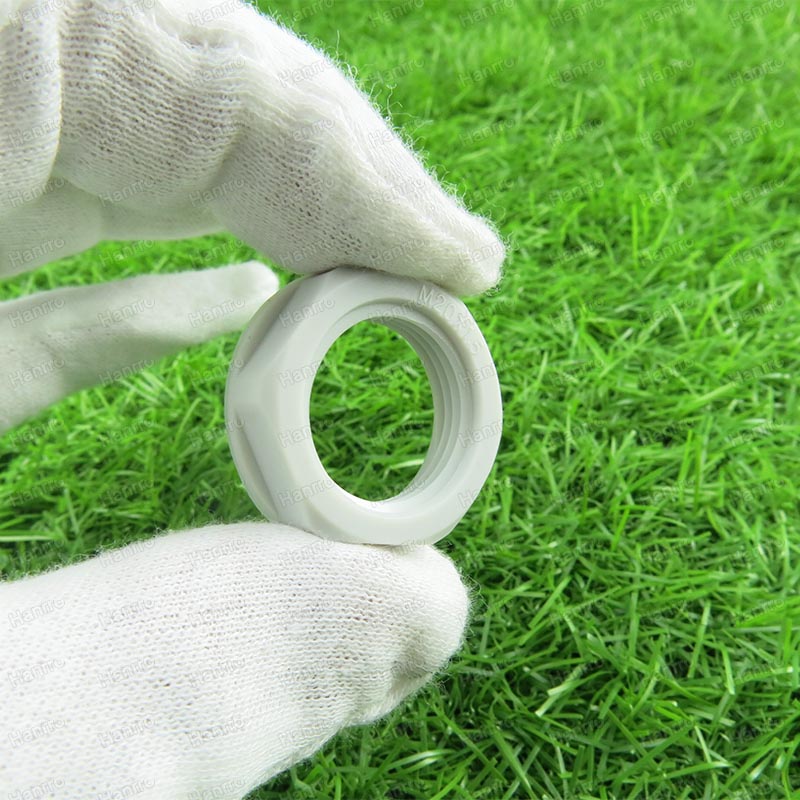

| MG Thread | ||
| Item No. | Thickness H(mm) | Spanner Size(mm) |
| NLN-MG12 | 5 | 17 |
| NLN-MG16 | 7 | 22 |
| NLN-MG20 | 8 | 26 |
| NLN-MG25 | 8 | 32 |
| NLN-MG32 | 8 | 40 |
| NLN-MG40 | 10 | 49 |
| NLN-MG50 | 10 | 60 |
| NLN-MG63 | 10.5 | 73 |

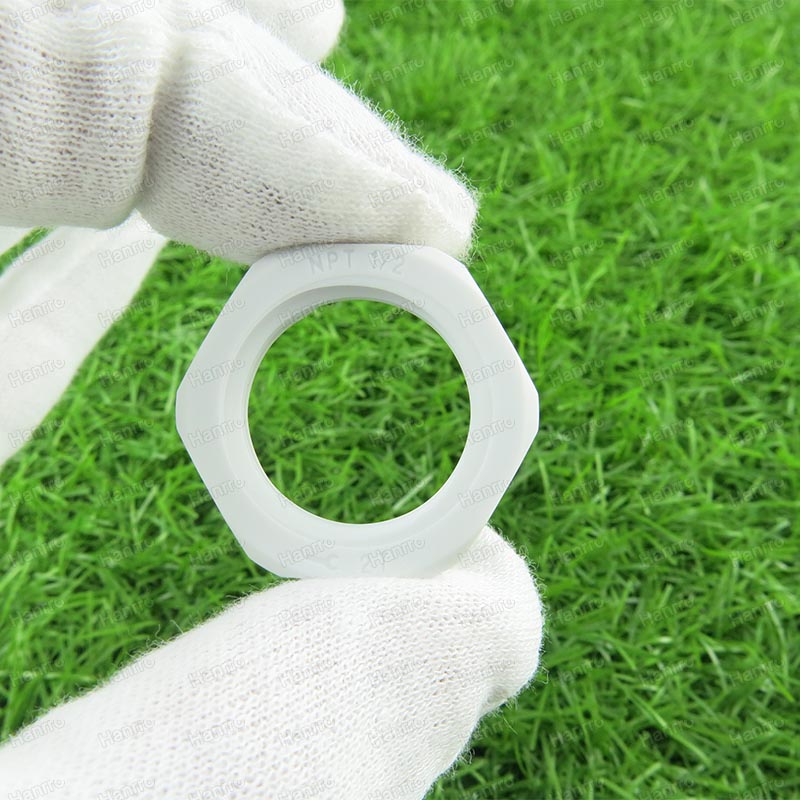

| NPT Thread | ||
| Item No. | Thickness H(mm) | Spanner Size(mm) |
| NLN-NPT1/4″ | 5 | 19 |
| NLN-NPT3/8″ | 7 | 24 |
| NLN-NPT1/2″ | 6 | 27 |
| NLN-NPT3/4″ | 7 | 32 |
| NLN-NPT1″ | 7 | 40 |
| NLN-NPT1 1/4″ | 8 | 50 |
| NLN-NPT1 1/2″ | 8 | 60 |
| NLN-NPT2″ | 8 | 69 |

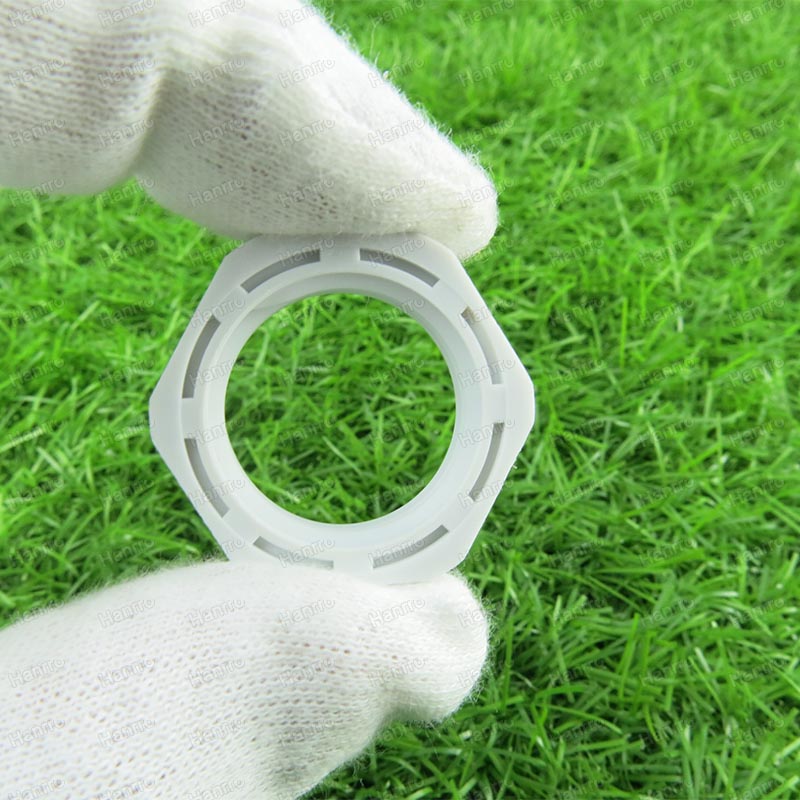

| G Thread | ||
| Item No. | Thickness H(mm) | Spanner Size(mm) |
| NLN-G1/4″ | 5 | 19 |
| NLN-G3/8″ | 7 | 24 |
| NLN-G1/2″ | 6 | 27 |
| NLN-G3/4″ | 7 | 32 |
| NLN-G1″ | 7 | 40 |
| NLN-G1 1/4″ | 8 | 50 |
| NLN-G1 1/2″ | 8 | 60 |
| NLN-G2″ | 8 | 69 |
