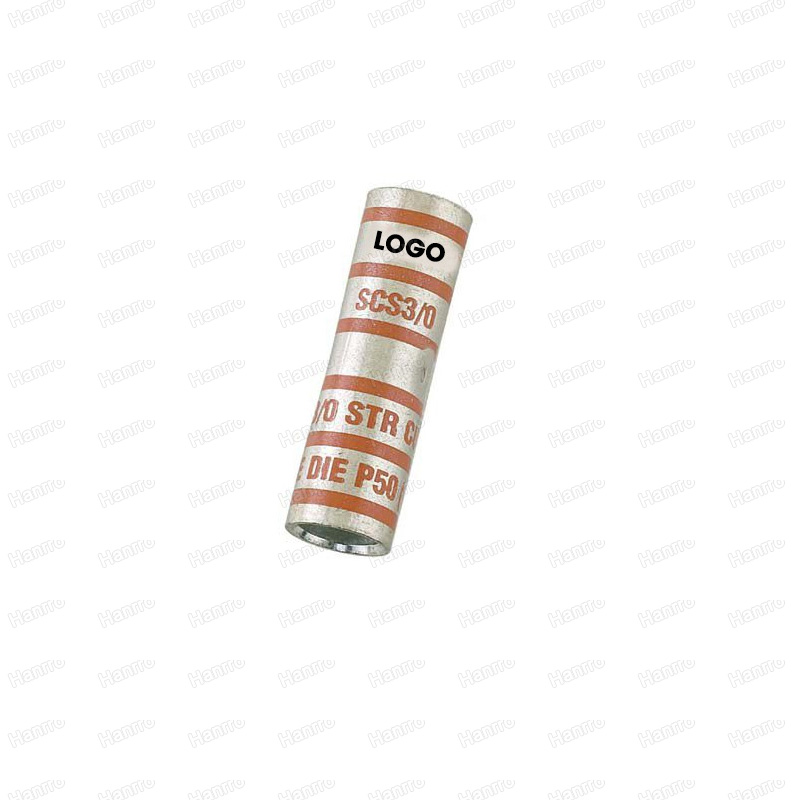

Compression Splice with Standard Barrel

Compression Splice with Standard Barrel are designed for Stranded Copper Conductors, Which made by T2 Pure Copper and Tin-Plated Treatment to inhibit corrosion.

Compression Splice have internal wire strops to prevent over-insertion of conductor. The Color-Coded barrels marked with Die Index Numbers for proper crimp. Mostly It have passed the testing by Telcordia-meets NEBS Level 3

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

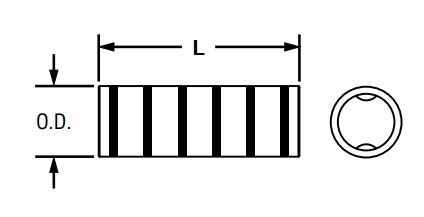

Compression Splice-Drawing

Item No Copper Conductor Size Dimensions (Inch)
Inner Diameter Out Diameter Length Wire Strip Length
SCS8-L #8 AWG 0.18 0.27 1.5 11/16
SCS6-L #6AWG 0.22 0.31 1.75 13/16
SCS4-L #4-#3 AWG STR, #2 AWG SOL 0.28 0.38 1.75 13/16
SCS2-Q #2 AWG 0.31 0.42 1.87 7/8
SCS1-E #1 AWG 0.36 0.47 1.87 7/8
SCS1/0-X 1/0 AWG 0.39 0.52 1.87 7/8
SCS2/0-X 2/0 AWG 0.45 0.58 2 15/16
SCS3/0-X 3/0 AWG 0.51 0.64 2.12 1
SCS4/0-X 4/0 AWG 0.57 0.71 2.12 1
SCS250-X 250 kcmil 0.63 0.77 2.25 1 1/16
SCS300-X 300 kcmil 0.65 0.81 2.25 1 1/16
SCS350-X 350 kcmil 0.7 0.87 2.37 1 1/8
SCS400-6 400 kcmil 0.76 0.95 2.5 1 3/16
SCS500-6 500 kcmil 0.83 1.05 2.87 1 3/8
SCS600-6 600 kcmil 0.92 1.18 2.87 1 3/8
SCS750-6 750 kcmil 1.03 1.29 3.37 1 5/8
SCS1000-3 1000 kcmil 1.17 1.50 3.87 1 7/8
