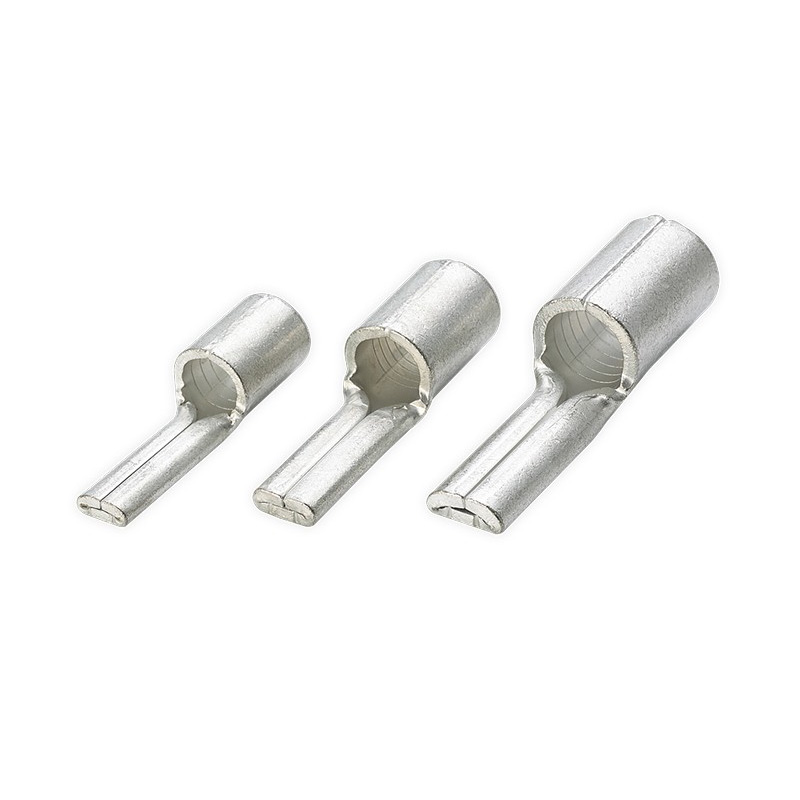

DIN46230 Pin Terminals are manufactured from electrolytic copper. High-Quality electrolytic copper for good conductivity, least resistance.
Unlike the Compression Cable Lug to DIN 46235, DIN46230 Pin Terminals are not processed by hexagonal crimping, but instead by indent crimping
Hanrro erminals with grooved profiles for improved electrical contact are tin-plated to protect the terminals against corrosion. Suitable for the following nominal cross section area conductors (sqmm): 10-95mm2
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

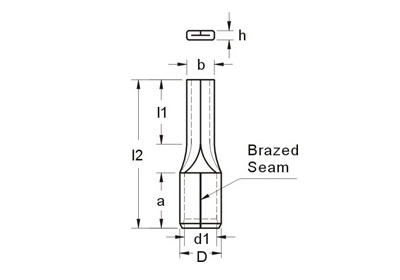

| Item No | Wire Range | Dimension (mm) | ||||||||
| mm2 | AWG | b | I1 | I2 | a | D | d1 | h | T | |
| DPTNB10-12 | 10 | 8 | 4.3 | 12 | 22 | 8 | 6.900 | 4.5 | 2.4 | 1.1 |
| DPTNB16-13 | 16 | 6 | 5.5 | 13 | 26 | 10 | 8.400 | 5.8 | 2.6 | 1.2 |
| DPTNB25-15 | 25 | 4 | 6.8 | 15 | 33.5 | 13.5 | 9.500 | 7 | 2.6 | 1.2 |
| DPTNB35-20 | 35 | 2 | 8 | 20 | 40.5 | 16 | 11.800 | 8.4 | 3.2 | 1.5 |
| DPTNB50-20 | 50 | 1/0 | 9.5 | 20 | 45 | 19 | 13.600 | 9.6 | 3.8 | 1.8 |
| DPTNB70-25 | 70 | 2/0 | 11 | 23.5 | 55 | 24 | 15.800 | 11.4 | 4.2 | 2 |
| DPTNB95-25 | 95 | 3/0 | 12.5 | 23.5 | 55 | 24 | 18.900 | 13.5 | 5.2 | 2.5 |
