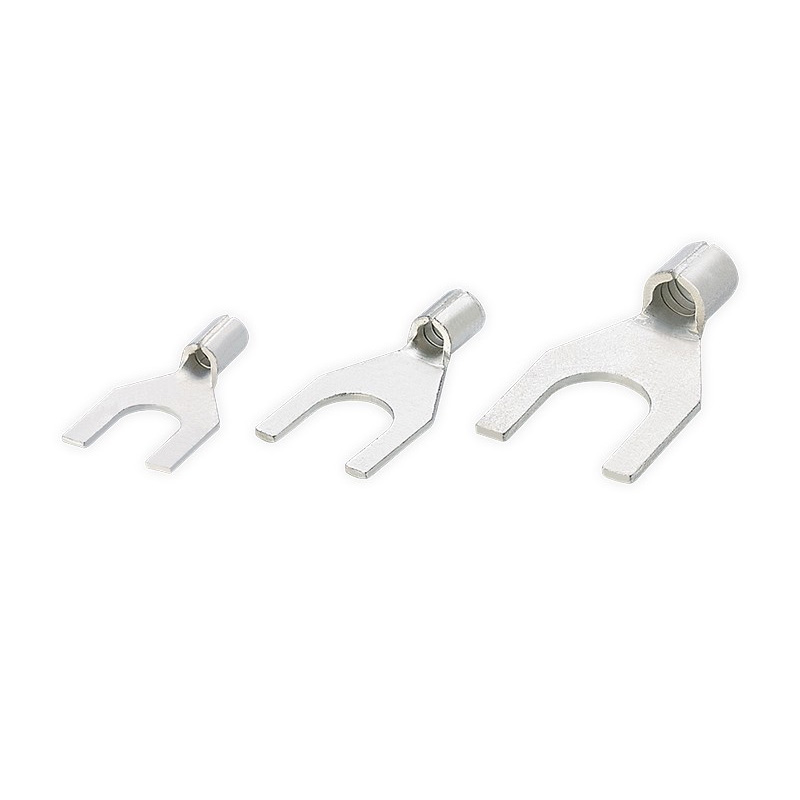

DIN46234 Spade Terminals

DIN46234 Spade Terminals are manufactured from electrolytic copper. High-Quality electrolytic copper for good conductivity, least resistance.

Unlike the Compression Cable Lug to DIN 46235, DIN46234 Spade Terminals are not processed by hexagonal crimping, but instead by indent crimping

Hanrro erminals with grooved profiles for improved electrical contact are tin-plated to protect the terminals against corrosion. Suitable for the following nominal cross section area conductors (sqmm): 0.5-1sqmm, 1.5-2.5sqmm, 25sqmm, 4-6sqmm,

tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

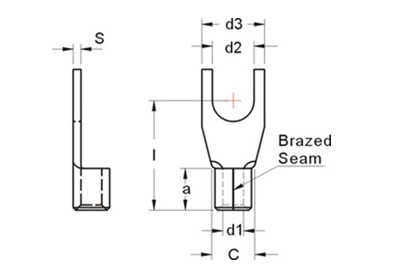

DIN46234 Spade Terminals-Drawing

Item No Wire Range Dimension (mm)
mm2 AWG d2 D3 I A C d1 S
DSNB2-0.5 0.2-0.5 26-22 #2 2.2 5 8 4 2 1 0.5
DSNB3-0.5 #4 3.2 5 8 4 2 1 0.5
DSNB3.5-0.5 #6 3.7 6 11 4 2 1 0.5
DSNB4-0.5 #8 4.3 6.5 11 4 2 1 0.5
DSNB5-0.5 #10 5.3 8 11 4 2 1 0.5
DSNB3-1 0.5-1.5 22-16 #4 3.2 6 11 5 4 1.6 0.8
DSNB3.5-1 #6 3.7 6 11 5 4 1.6 0.8
DSNB4-1 #8 4.3 6.8 12 5 4 1.6 0.8
DSNBL4-1 #8 4.3 8 12 5 4 1.6 0.8
DSNB5-1 #10 5.3 10 13 5 4 1.6 0.8
DSNB6-1 1/4 6.5 11 15 5 4 1.6 0.8
DSNB3-2.5 1.5-2.5 16-14 #4 3.2 5.5 13 5 4.5 2.3 0.8
DSNB3.5-2.5 #6 3.7 6 11 5 4.5 2.3 0.8
DSNB4-2.5 #8 4.3 6.8 12 5 4.5 2.3 0.8
DSNBL4-2.5 #8 4.3 8 12 5 4.5 2.3 0.8
DSNB5-2.5 #10 5.3 10 14 5 4.5 2.3 0.8
DSNB6-2.5 1/4 6.5 11 16 5 4.5 2.3 0.8
DSNB4-6 2.5-6 12-10 #8 4.3 8 14 6 6 3.6 1
DSNB5-6 #10 5.3 10 15 6 6 3.6 1
DSNB6-6 1/4 6.5 11 16 6 6 3.6 1
DSNB8-6 5/16 8.4 14 19 6 6 3.6 1
DSNB10-6 3/8 10.5 18 21 6 6 3.6 1
