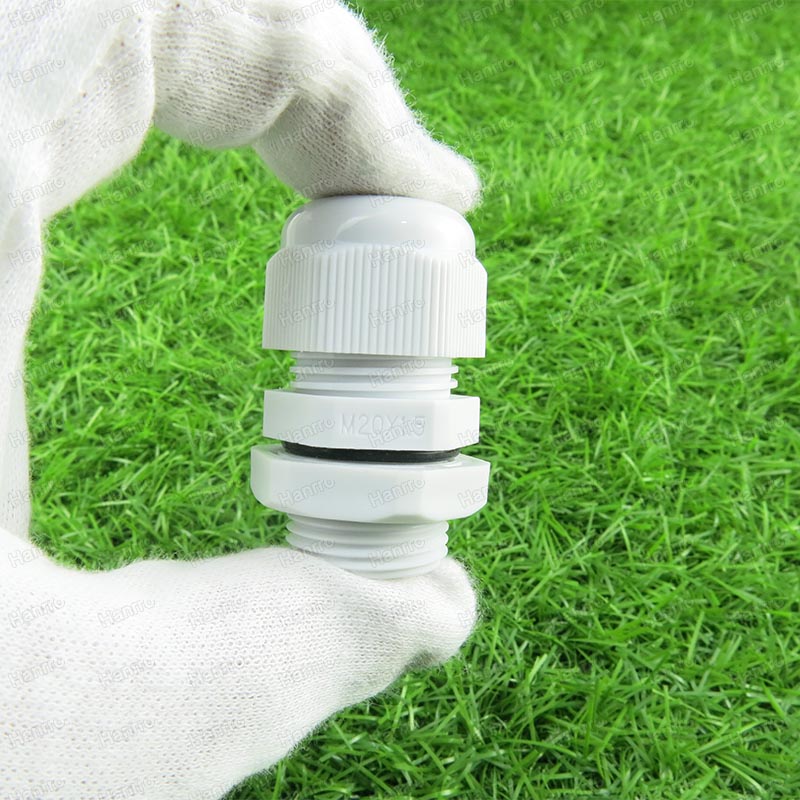

Dome Top Cable Glands with Long Thread Length

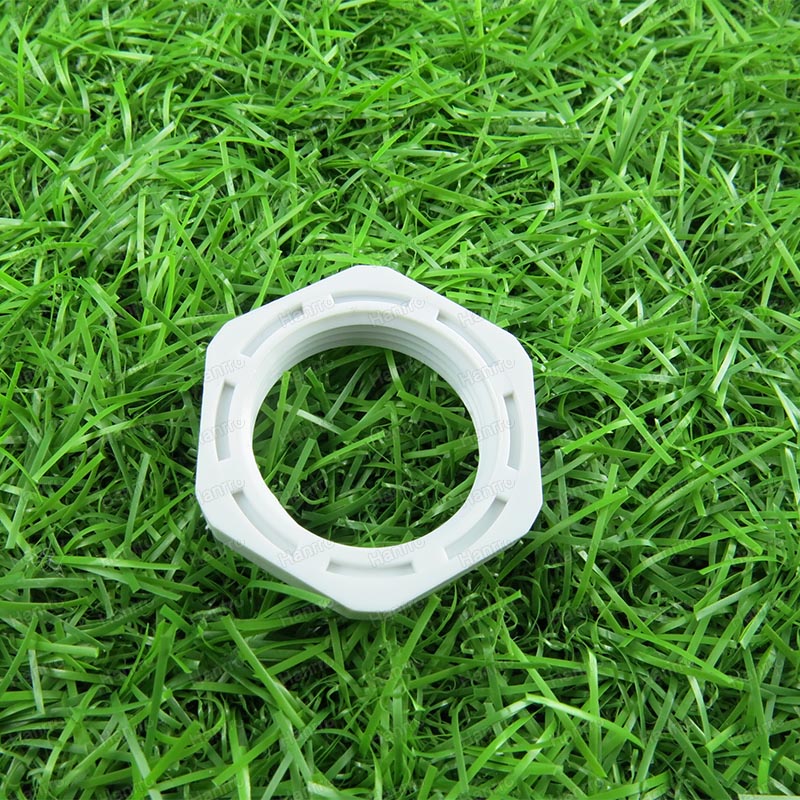

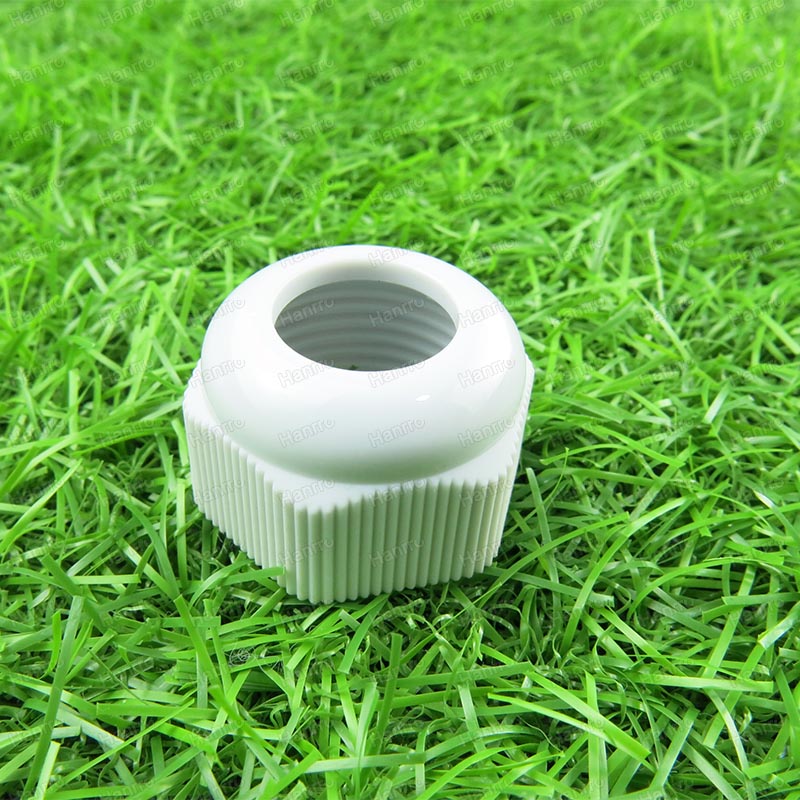

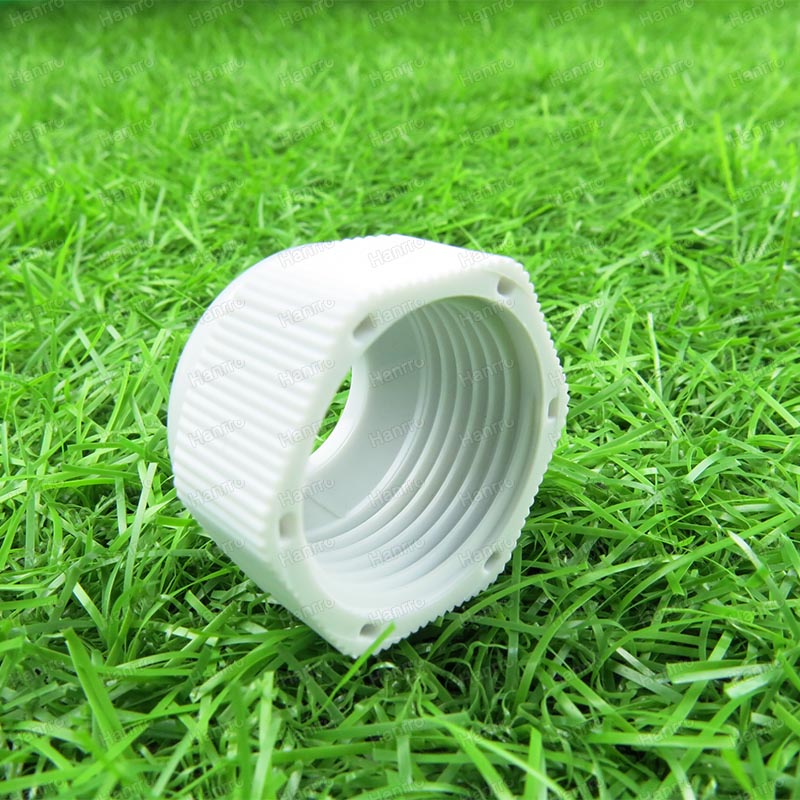

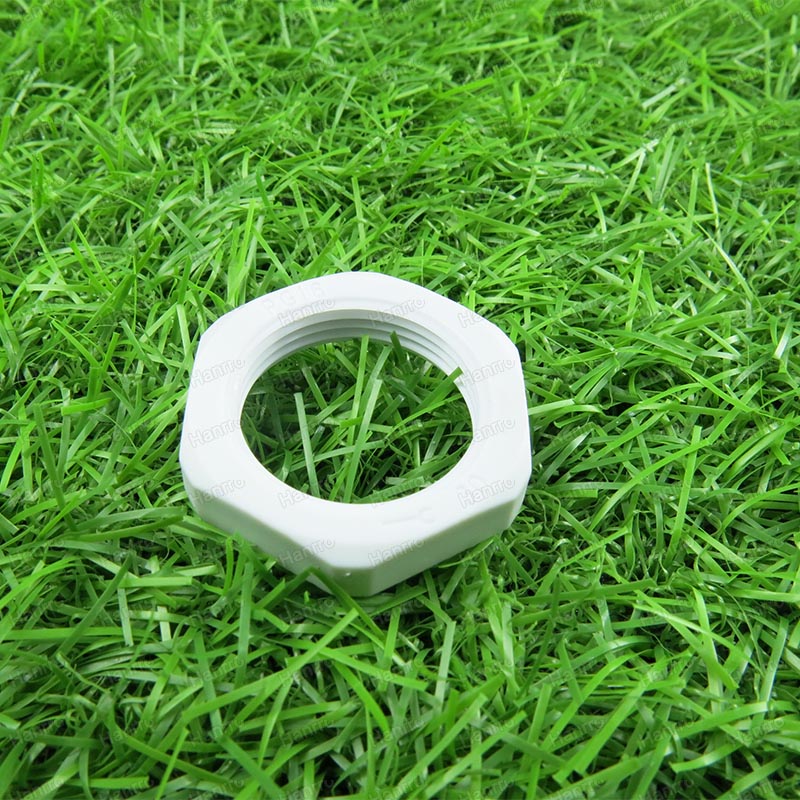

Dome Top Cable Glands with Long Thread Length and locknut designed with anti-vibration dome top caps.
It assists in areas where vibration could be a problem, although the cap when tightened is locked it can be un-screwed and re-tightened.

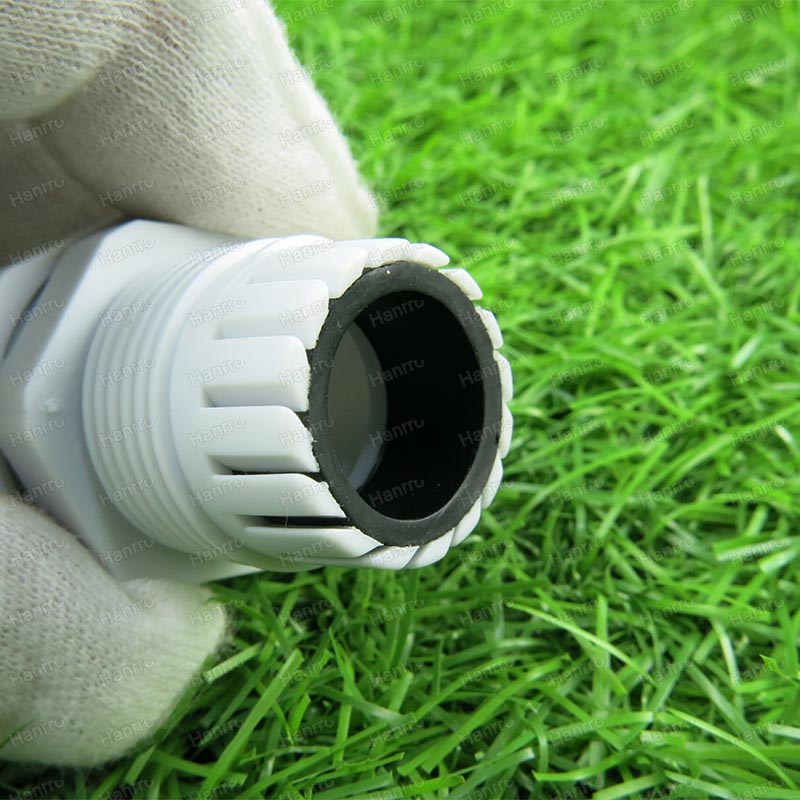

Dome Top Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all Metric threaded parts. Colours offered are Black, Gray, Red, White and Blue.

Product Name : Dome Top Cable Glands with Long Thread Length

Material of Body : Halogen Free Nylon 6

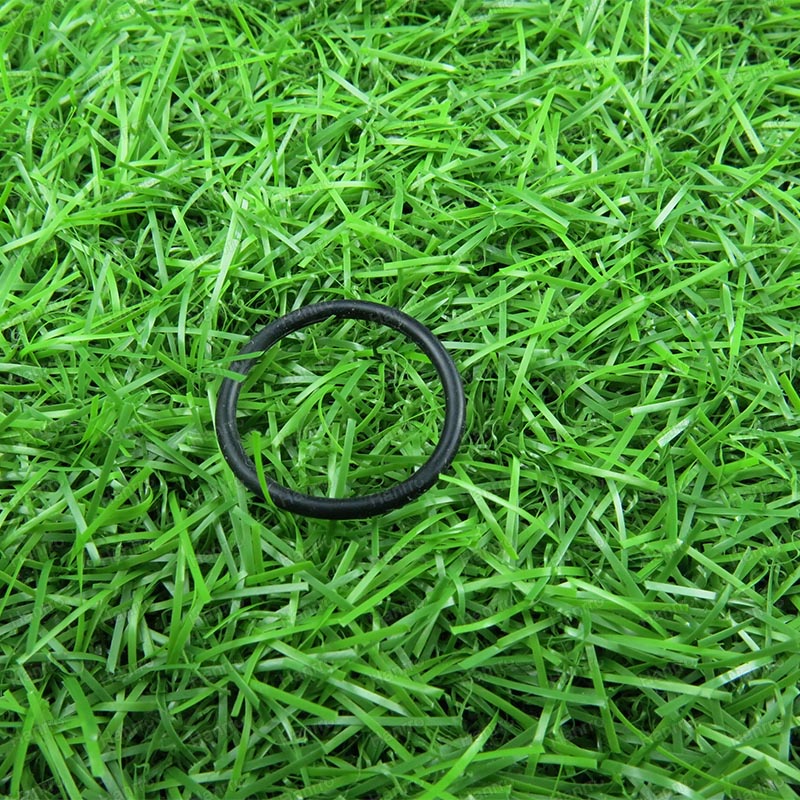

Material of Sealing : Neoprene( EPDM can be done as customer requirement )

Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc

Operating Temperature : From -20℃ to + 80℃

Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)

Protection Grade : IP68

Certification : CE

Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc

Package : 100 Pcs / Polybag



Dome Top Cable Glands With Long Thread Length-Drawing



tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No. Cable Range(mm) GL(mm) H(mm) Spanner Size(mm) AG(mm)
LDT-M16 x 1.5 5–10 15 27 22 16
LDT-M16 x 1.5 3–7 15 27 22 16
LDT-M20 x 1.5 10–14 15 30 27 20
LDT-M20 x 1.5 7–12 15 30 27 20
LDT-M32 x 1.5 18–25 15 40 41/42 32
LDT-M32 x 1.5 13–20 15 40 41/42 32
