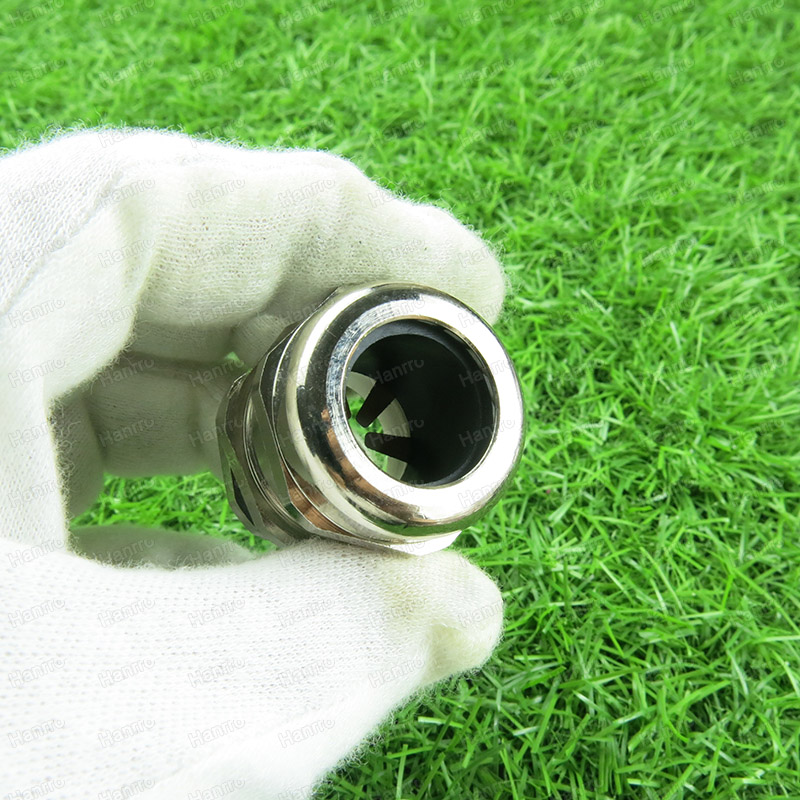

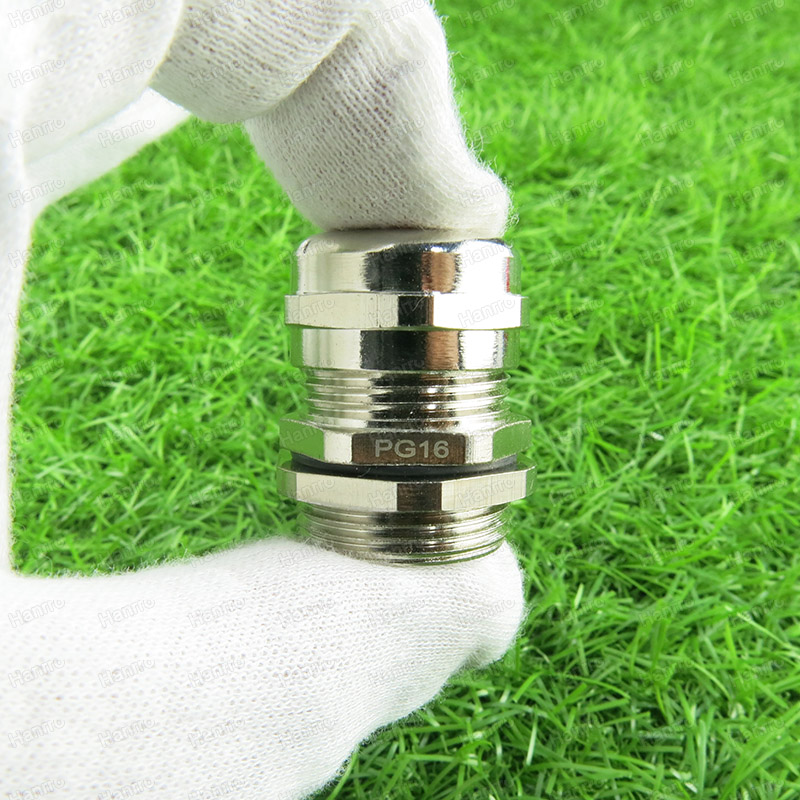

EMC Cable Glands with Long PG Thread

EMC Cable Glands with Long PG Thread are used in applications which involve shielded cables for electromagnetic protection. These Glands help in maintaining electromagnetic integrity of the shielded cable by just tightening the gland.

EMC Cable Glands with Long PG Thread according to DIN40430 .It comply with highest demands as regards quality and safety. Two different EMC protection systems ensure long contact life and easy-to-assemble application. Different thread types, thread lengths, clamping ranges, temperature ranges, a variety of sealing compounds and a diversity of Approval Certifications come as standard with the Hanrro Series.

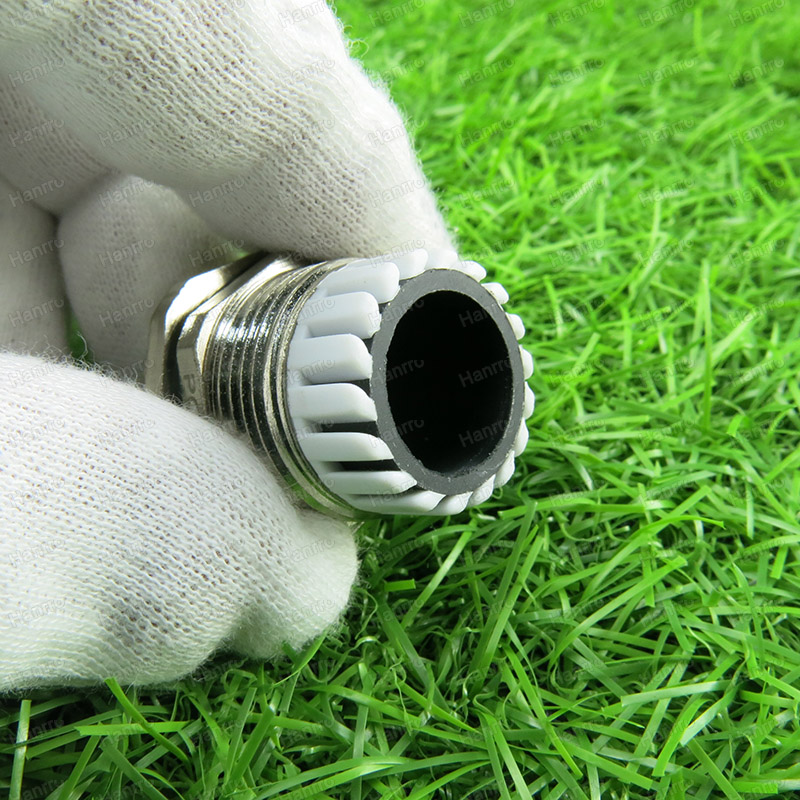

Clamping Insert : Nylon 66 V2 According to UL94 ( V0 can be done on request)

Material : Nickel Plated Brass

Material of O-Ring : NBR

NEMA Type Rating : 4 , 4X , 6

Protection Class : IP68-10 Bar , IP69K

Seal : NBR

Temperature Range : From -40℃ to + 100℃

If you need other material of sealing , such as Silicone , EPDM Etc

Please contact with us by email or call

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

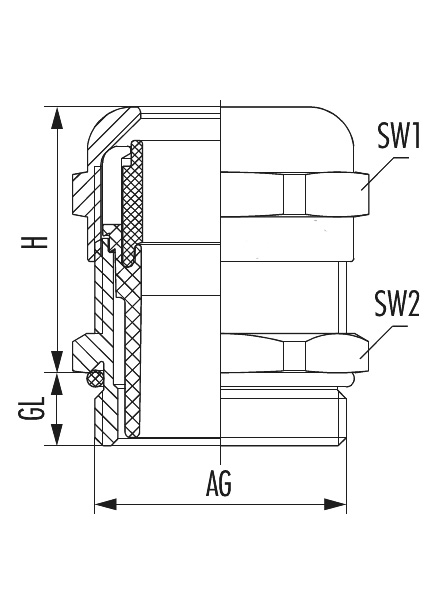

EMC Cable Glands-Drawing

Item No Cable Range(mm) GL(mm) H(mm) SW1(mm) AG(mm) Panel Mounting Hole(mm)
LB-EMC-PG7 3-6.5 10 18 14 12.5 12.5-12.8
LB-EMC-PG9 4-8 10 20 17 15.2 15.2-15.5
LB-EMC-LB-EMC-11 5-10 10 21 20 18.6 18.6-18.9
PG13.5 6-12 10 22 22 20.4 20.4-20.7
LB-EMC-LB-EMC-16 10-14 10 23 24 22.5 22.5-22.8
PG21 13-18 10 25 30 28.3 28.3-28.6
LB-EMC-PG29 18-25 10 30 40 37 37-37.3
LB-EMC-PG36 23-32 10 35 50 47 47-47.3
LB-EMC-PG42 32-38 10 38 57 54 54-54.3
LB-EMC-PG48 37-44 10 40 64 59.3 59.3-59.6
