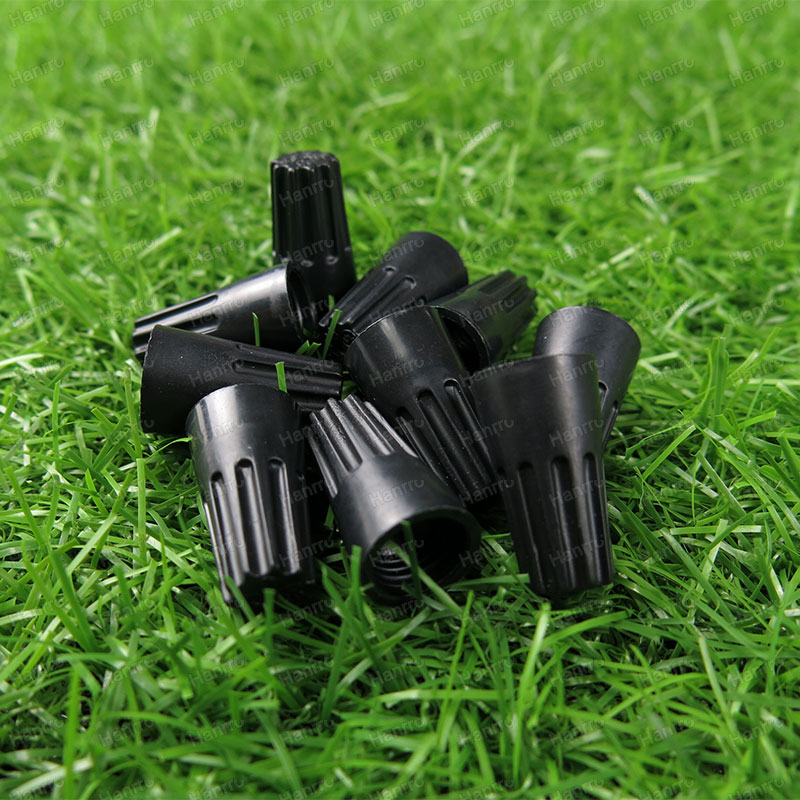

Heat Stabilized Twist Wire Connectors were designed for special using condition which be high temperature. It features a steel spring with corrosion-resistant coating and a durable PVC insulator. The molded insulator resists warping and expansion when pushed to the upper limits of its wire ranges. The connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of 150 degrees C. UL Listed and CSA Certified.

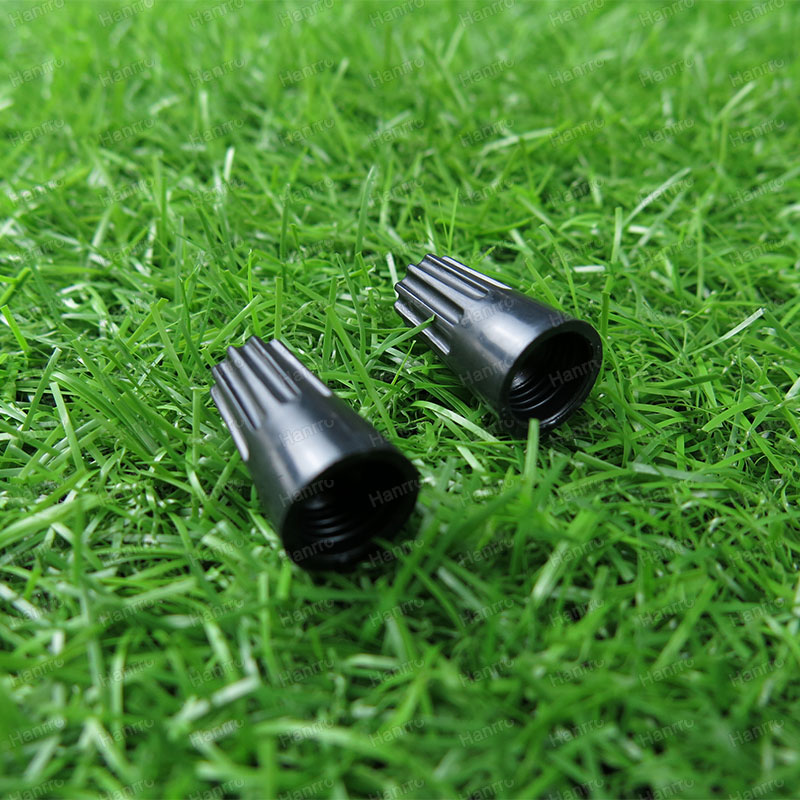

Heat Stabilized Twist Wire Connectors A wire coiled spring is found within the tough plastic shell of the Screw On Wire Connector and expands to accommodate a wide range of wire combinations, sealing out moisture and protecting conductors from corrosion and fungus. The Screw On Wire Connectors cover common wire ranges and are designed with a ribbed cap for fast and easy installation
Features & Benefits :
Hex-head design provides ability to use a socket for quick installation
Wide spring opening enables easy and fast insertion of large wire combinations
Flame-retardant PVC insulator and Corrosion-resistant steel spring
600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
Withstands temperatures of 150 Degree
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Color | Voltage | AWG | Max | Min | |||||
| P1B | Black | 300V | 22-18 | 2 #18 Str | 1 #18 Str w/1 #22 Str | |||||
| P3B | Black | 600V | 22-14 | 1 #14 w/1 #16 w/1 #18 | 1 #16 w/1 #22 | |||||
