Luminaire Disconnect

Luminaire Disconnect ballasts under load for safe servicing – in compliance with NEC requirements. It enables electricians changing ballasts to easily disconnect incoming power for safe servicing without having to trip the main power breaker
• Installs easily – just strip de-energized wires and insert.

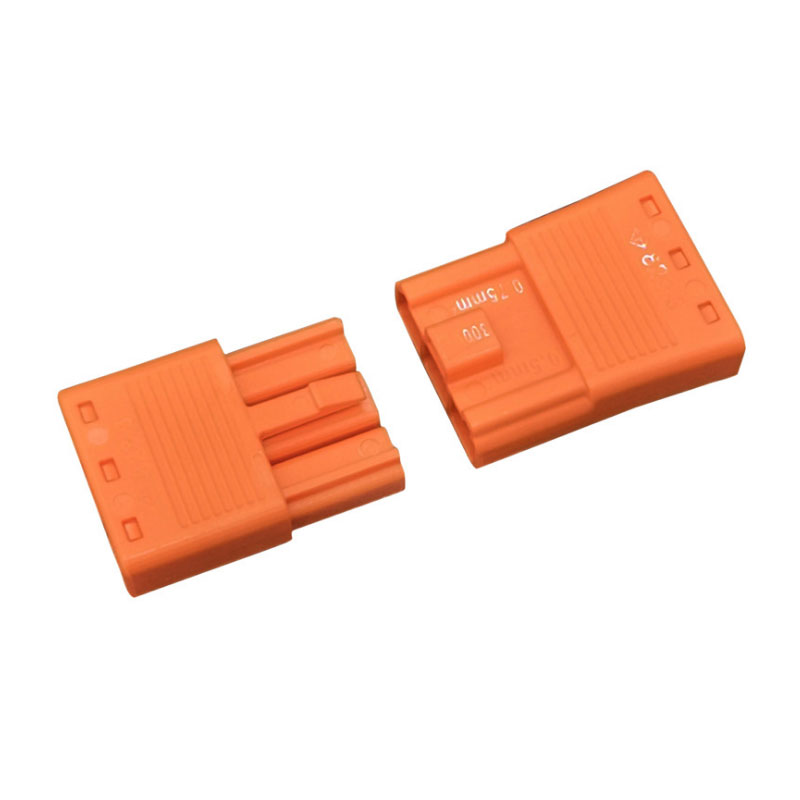

Luminaire Disconnect halves snap together and separate easily – but won’t accidentally disconnect

Material of Housing : Nylon 66

Material of Contact : Brass

Rating : 105℃

Certification : UL , CSA , ROHS , REACH





tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No Poles Voltage Current Wire Range Size Color
IEC UL IEC UL Solid Stranded
823-2 2 300V 600V 6A 6A 18-20 AWG 18-20 AWG 14.5 x 41 x 7.5 Orange
823-3 3 300V 600V 6A 6A 18-20 AWG 18-20 AWG 19 x 41 x 7.8 Orange
