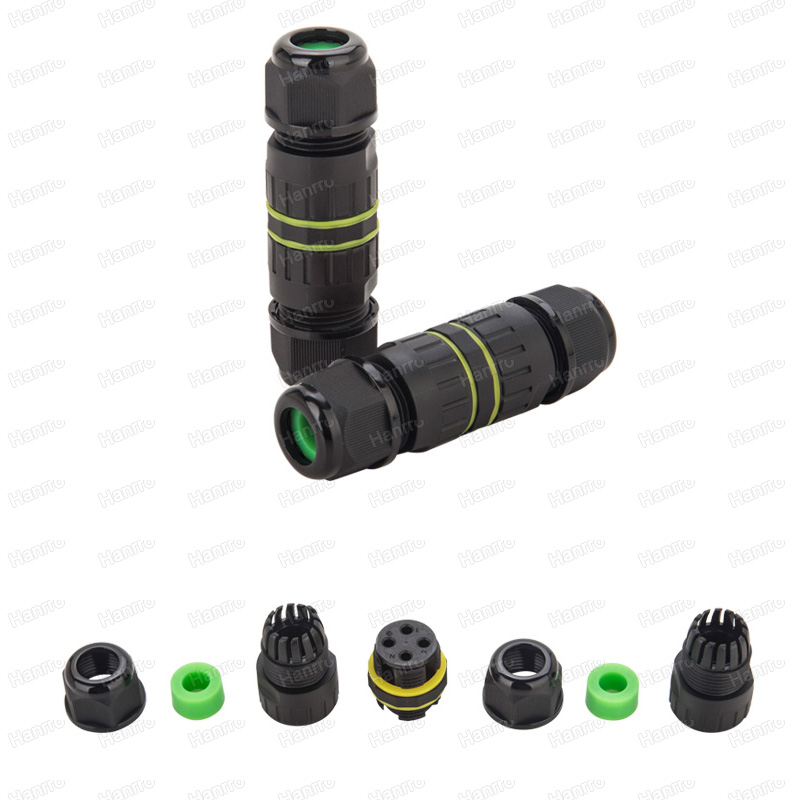

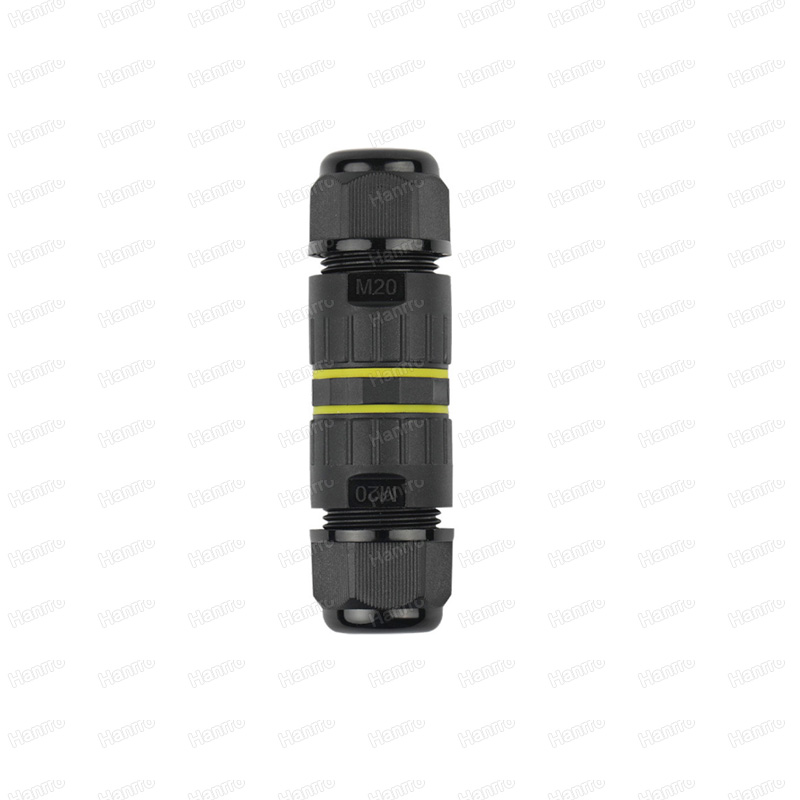

M20 Straight Waterproof Connectors

M20 Straight Waterproof Connectors with an IP rating of IP68 (0.5bar). In-line assembly and seperate screw and clamp terminal block allows for quick easy installation. High quality construction with tough nylon 66 body and brass terminal blocks. Conductor size 0.5mm2 to 2.5mm2, suitable for -20 to +85°C. CE and RoHS certified.

tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

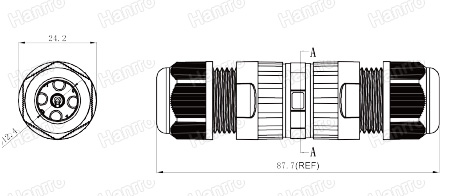

M20 Straight Waterproof Connectors-Drawing


Item No Pin Voltage Current Cable O.D (mm) Wire Size
M20-2P 2 400V 24A 5-9 / 9-12 0.5-2.5mm2
M20-3P 3 400V 24A 5-9 / 9-12 0.5-2.5mm2
M20-4P 4 400V 24A 5-9 / 9-12 0.5-2.5mm2
M20-5P 5 400V 24A 5-9 / 9-12 0.5-1.5mm2
M20-6P 6 400V 24A 5-9 / 9-12 0.5-1.5mm2

M16 Straight Waterproof Connectors-Operation Instruction
