Metric Brass Cable Glands

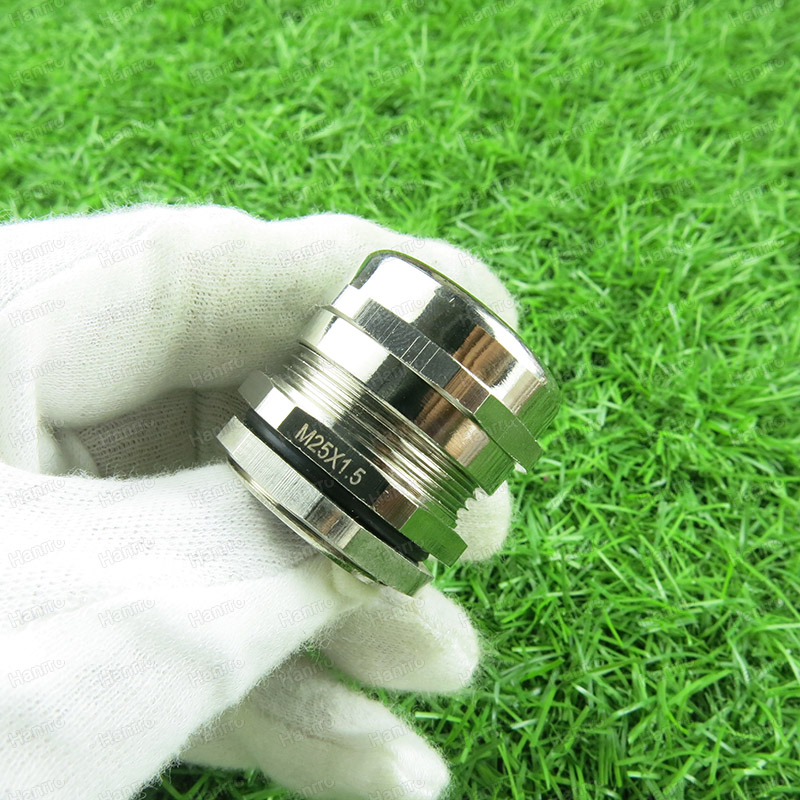

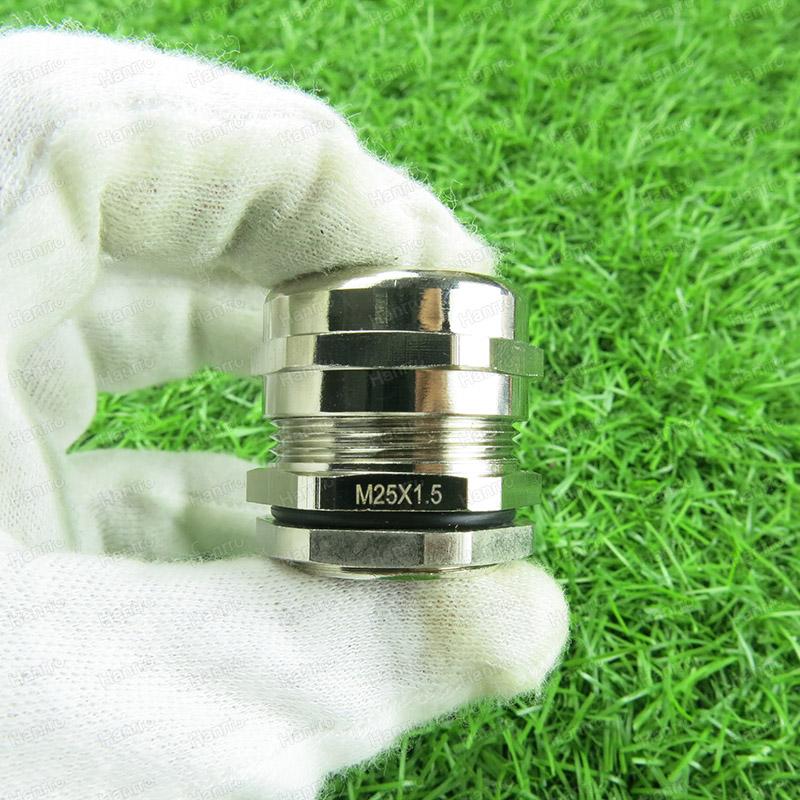

Metric Brass Cable Glands made of brass (nickel-plated) .They are robust and extremely suitable for industrial use. The Size come from M12 to M64. There is a huge assortment available for both common and unusual solutions. The uncompromising use of high-quality materials ensures the outstanding quality of these cable glands.

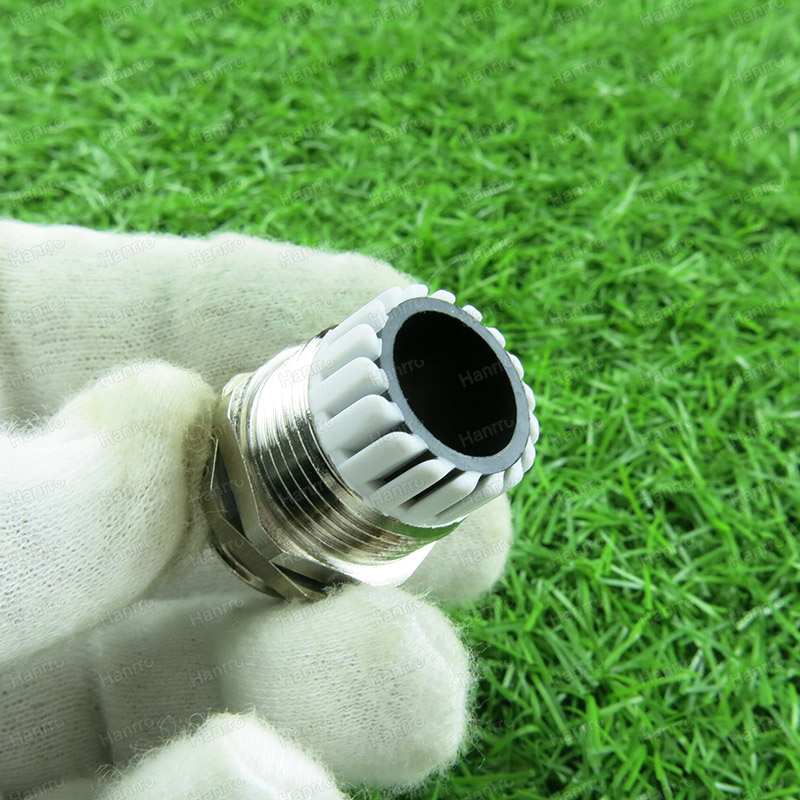

Clamping Insert : Nylon 66 V2 According to UL94 ( V0 can be done on request)

Material : Nickel Plated Brass

Material of O-Ring : NBR

NEMA Type Rating : 4 , 4X , 6

Protection Class : IP68-10 Bar , IP69K

Seal : NBR

Temperature Range : From -40℃ to + 100℃

If you need other material of sealing , such as Silicone , EPDM Etc

Please contact with us by email or call

tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Brass Cable Glands-Drawing

Item No Cable Range(mm) GL(mm) H(mm) SW1/SW2(mm) AG(mm) Panel B-Mounting Hole(mm)
B-M12x1.5 3-6.5 5 18 14 12 12-12.3
B-M12x1.5 2-5 5 18 14 12 12-12.3
B-M12x1.5 4-8 6 20 17 12 12-12.3
B-M12x1.5 2-6 6 20 17 12 12-12.3
B-M14x1.5 4-8 6 20 17 14 14-14.3
B-M14x1.5 2-6 6 20 17 14 14-14.3
B-M16x1.5 4-8 6 20 17 16 16-16.3
B-M16x1.5 2-6 6 20 17 16 16-16.3
B-M16x1.5 5-10 6 21 20 16 16-16.3
B-M16x1.5 3-7 6 21 20 16 16-16.3
B-M18x1.5 5-10 6 21 20 18 18-18.3
B-M18x1.5 3-7 6 21 20 18 18-18.3
B-M20x1.5 6-12 6.5 22 22 20 20-20.3
B-M20x1.5 5-9 6.5 22 22 20 20-20.3
B-M20x1.5 10-14 6.5 23 24 20 20-20.3
B-M20x1.5 7-12 6.5 23 24 20 20-20.3
B-M22x1.5 10-14 6.5 23 24 22 22-22.3
B-M22x1.5 7-12 6.5 23 24 22 22-22.3
B-M24x1.5 10-14 6.5 23 24/27 24 24-24.3
B-M24x1.5 7-12 6.5 23 24/27 24 24-24.3
B-M25x1.5 11-16 7 25 27 25 25-25.3
B-M25x1.5 9-14 7 25 27 25 25-25.3
B-M25x1.5 13-18 7 25 30 25 25-25.3
B-M25x1.5 9-16 7 25 30 25 25-25.3
B-M27x1.5 13-18 7 25 30 27 27-27.3
B-M27x1.5 9-16 7 25 30 27 27-27.3
B-M28x1.5 13-18 7 25 30 28 28-28.3
B-M28x1.5 9-16 7 25 30 28 28-28.3
B-M30x1.5 13-18 8 25 30/32 30 30-30.3
B-M30x1.5 9-16 8 25 30/32 30 30-30.3
B-M30x1.5 12-21 8 26 30/32 30 30-30.3
B-M30x1.5 7-15 8 26 30/32 30 30-30.3
B-M32x1.5 13-18 8 25 34 32 32-32.3
B-M32x1.5 9-16 8 25 34 32 32-32.3
B-M32x1.5 12-21 8 26 34 32 32-32.3
B-M32x1.5 7-15 8 26 34 32 32-32.3
B-M32x1.5 18-25 8 30 40 32 32-32.3
B-M32x1.5 13-20 8 30 40 32 32-32.3
B-M33x1.5 18-25 8 30 40 33 33-33.3
B-M33x1.5 13-20 8 30 40 33 33-33.3
B-M36x1.5 18-25 8 30 40 36 36-36.3
B-M36x1.5 13-20 8 30 40 36 36-36.3
B-M37x1.5 18-25 8 30 40 37 37-37.3
B-M37x1.5 13-20 8 30 40 37 37-37.3
B-M40x1.5 19-28 8 31 44 40 40-40.3
B-M40x1.5 15-23 8 31 44 40 40-40.3
B-M40x1.5 22-32 8 35 50 40 40-40.3
B-M40x1.5 20-26 8 35 50 40 40-40.3
B-M42x1.5 22-32 8 35 50 42 42-42.3
B-M42x1.5 20-26 8 35 50 42 42-42.3
B-M47x1.5 22-32 8 35 50 47 47-47.3
B-M47x1.5 20-26 8 35 50 47 47-47.3
B-M48x1.5 22-32 8 35 50/52 48 48-48.3
B-M48x1.5 20-26 8 35 50/52 48 48-48.3
B-M50x1.5 27-35 9 37 55 50 50-50.3
B-M50x1.5 22-29 9 37 55 50 50-50.3
B-M50x1.5 32-38 9 38 57 50 50-50.3
B-M50x1.5 25-31 9 38 57 50 50-50.3
B-M54x1.5 32-38 9 38 57 54 54-54.3
B-M54x1.5 25-31 9 38 57 54 54-54.3
B-M56x1.5 32-38 9 38 57/59 56 56-56.3
B-M56x1.5 25-31 9 38 57/59 56 56-56.3
B-M60x1.5 37-44 10 40 64 60 60-60.3
B-M60x1.5 29-35 10 40 64 60 60-60.3
B-M63x1.5 37-44 10 40 64/68 63 63-63.3
B-M63x1.5 29-35 10 40 64/68 63 63-63.3
B-M64x1.5 37-44 10 40 64/68 64 64-64.3
B-M64x1.5 29-35 10 40 64/68 64 64-64.3
