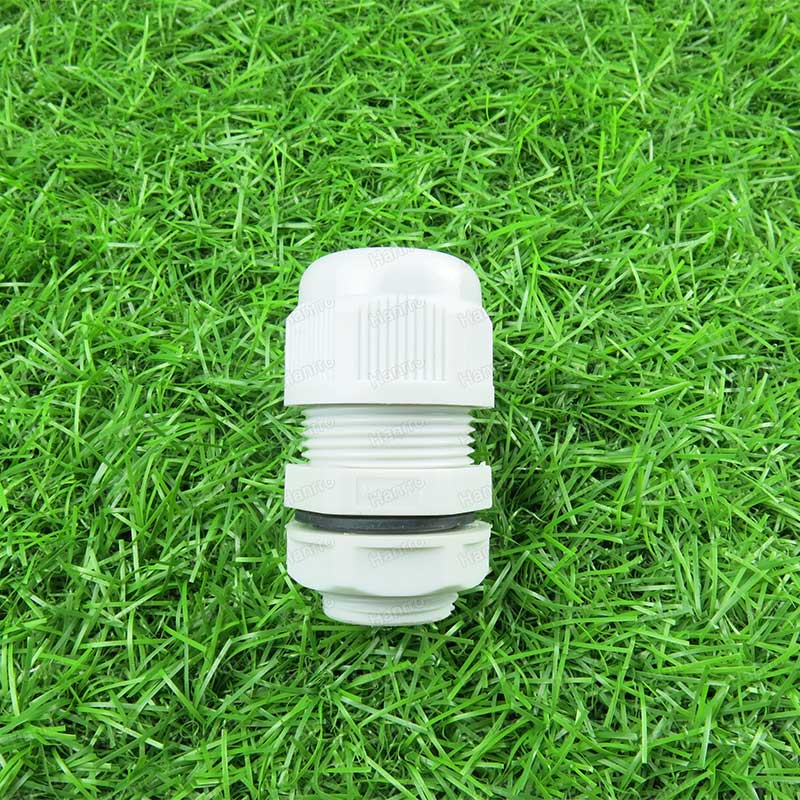

MG Cable Glands

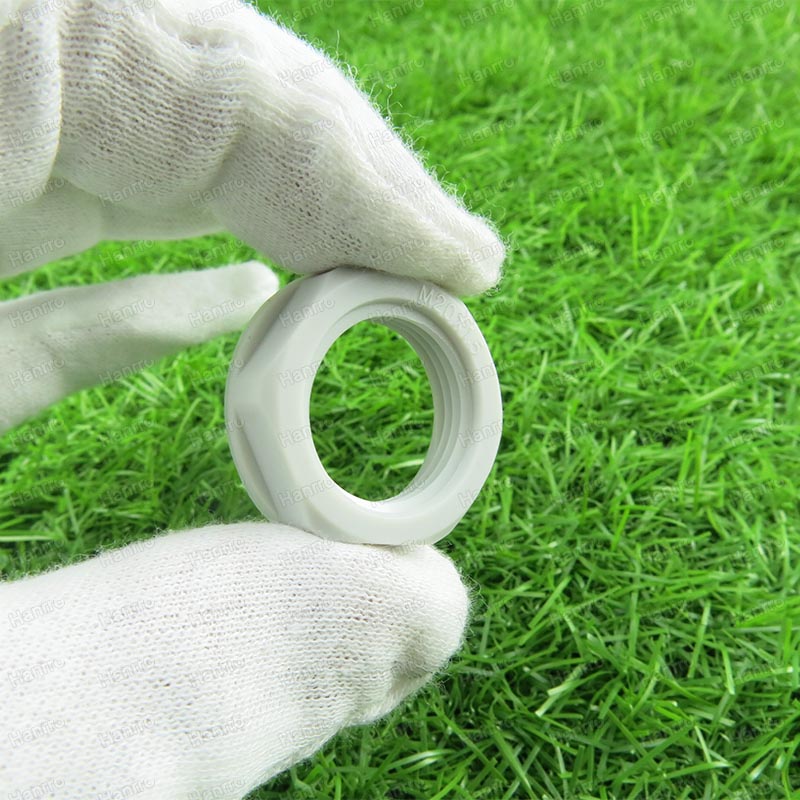

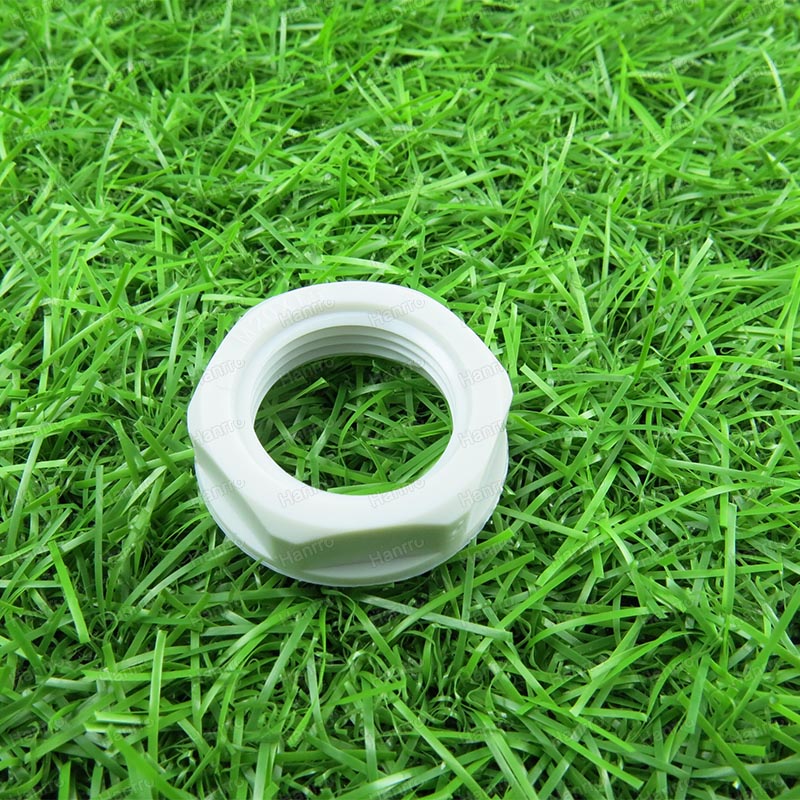

MG Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all Metric threaded parts. Colours offered are Black, Gray, Red, White and Blue.

Product Name : MG Cable Glands

Material of Body : Halogen Free Nylon 6

Material of Sealing : Neoprene( EPDM can be done as customer requirement )

Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc

Operating Temperature : From -20℃ to + 80℃

Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)

Protection Grade : IP68

Certification : CE

Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc

Package : 100 Pcs / Polybag

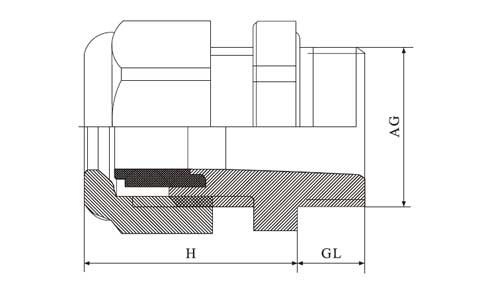

MG Cable Glands-Drawing

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No. Cable Range(mm) GL(mm) Spanner Size(mm) AG(mm)
MG12 4.5-8 9 17/19 12
MG12 3-5.3 9 17/19 12
MG16 6–10 15 22 16
MG16 4–7 15 22 16
MG20 9–14 15 26/27 20
MG20 6–11 15 26/27 20
MG25 13–18 15 32/33 25
MG25 10–16 15 32/33 25
MG32 18–25 15 41 32
MG32 15–22 15 41 32
MG40 24–30 20 50 40
MG40 20–25 20 50 40
MG50 30–40 23 60/62 50
MG50 26–32 23 60/62 50
MG63 40–50 24 73/75 63
MG63 38–46 24 73/75 63
