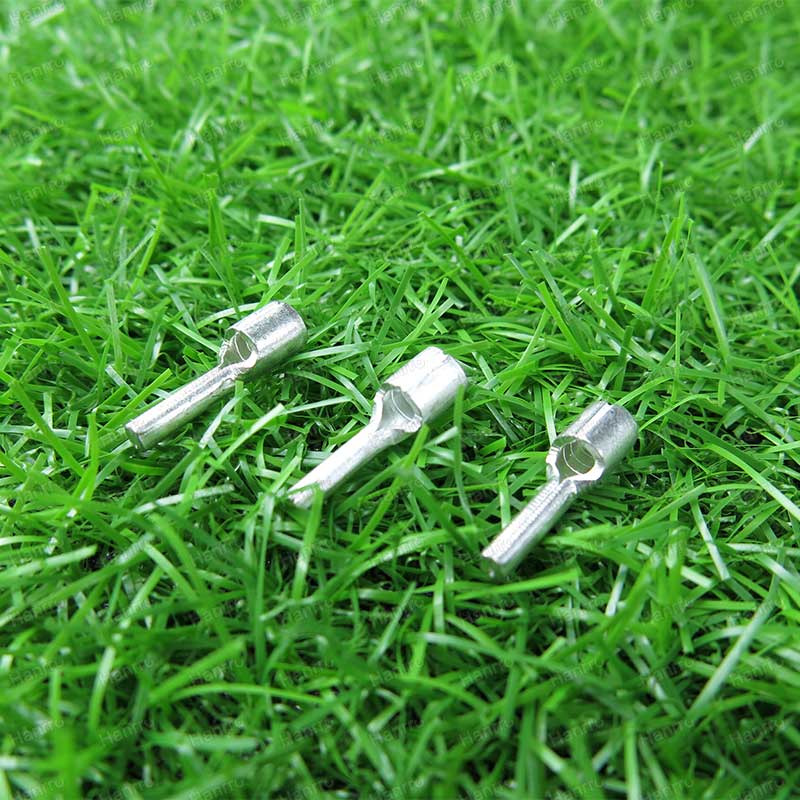

Product Name : Non Insulated Pin Terminals
Material of Body : Copper , Tin Plated
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

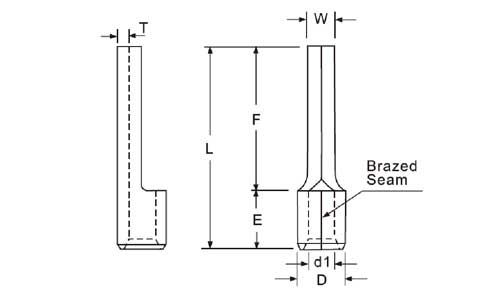

| Item No | Wire Size(mm2) | AWG | W | F | L | E | D | d1 | T | |||
| PTNB1.25-9 | 0.5-1.5 | 22-16 | 1.9 | 9.0 | 13.8 | 4.8 | 3.4 | 1.7 | 0.75 | |||
| PTNB1.25-10 | 10.0 | 14.8 | ||||||||||
| PTNB1.25-12 | 12.0 | 16.8 | ||||||||||
| PTNB1.25-13 | 13.0 | 17.8 | ||||||||||
| PTNB1.25-14 | 14.0 | 18.8 | ||||||||||
| PTNB1.25-16 | 16.0 | 20.8 | ||||||||||
| PTNB2-9 | 1.5-2.5 | 16-14 | 1.9 | 9.0 | 13.8 | 4.8 | 4.1 | 2.3 | 0.8 | |||
| PTNB2-10 | 10.0 | 14.8 | ||||||||||
| PTNB2-12 | 12.0 | 16.8 | ||||||||||
| PTNB2-13 | 13.0 | 17.8 | ||||||||||
| PTNB2-16 | 16.0 | 21.0 | ||||||||||
| PTNB5.5-13 | 4.0-6.0 | 12-10 | 2.8 | 14.0 | 20.0 | 6.0 | 5.6 | 3.4 | 1.0 | |||
