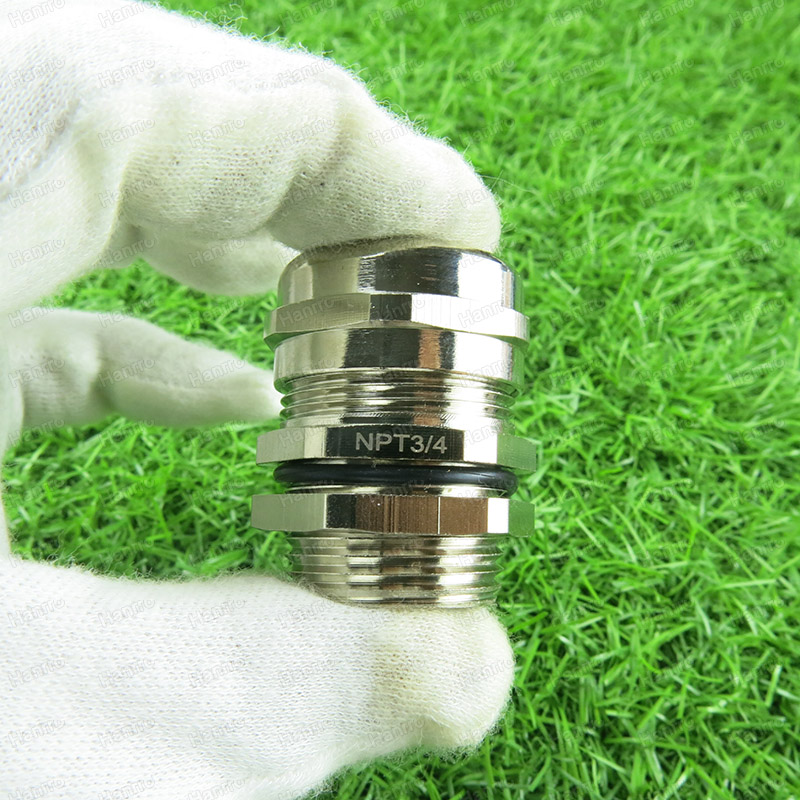

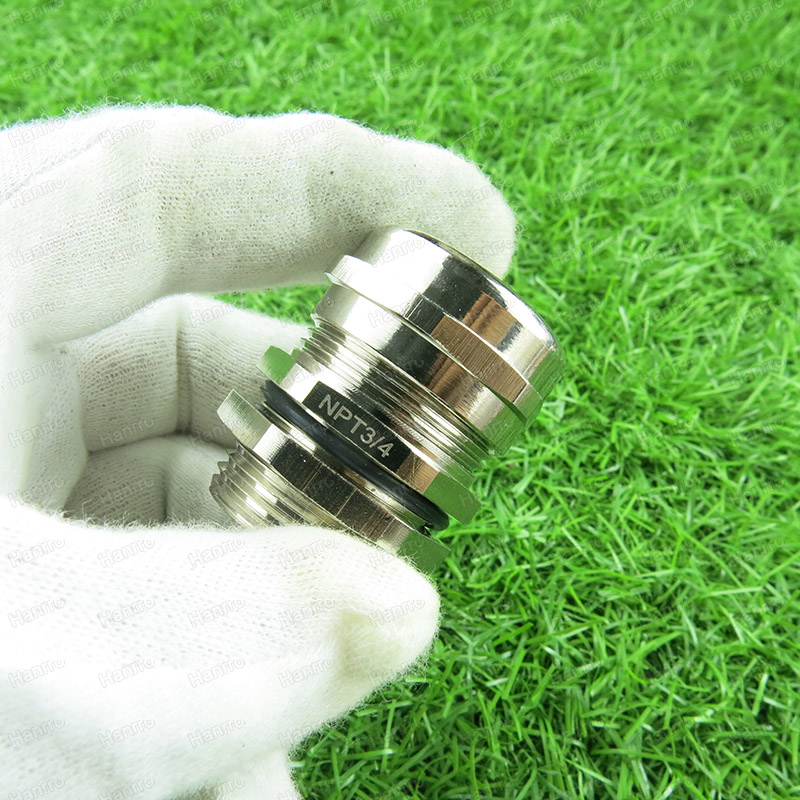

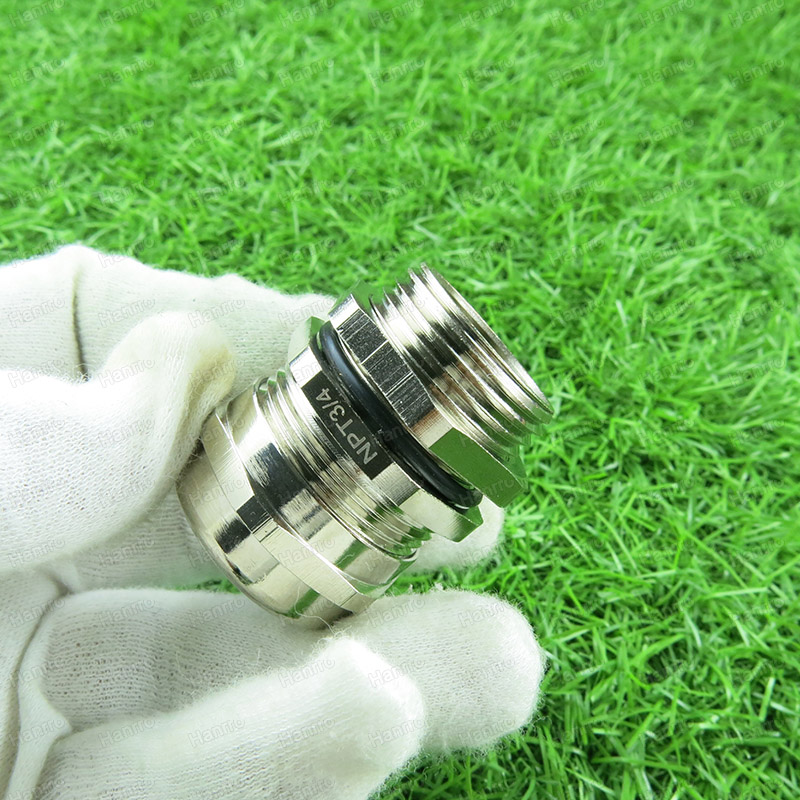

NPT Brass Cable Glands made of brass (nickel-plated) .They are robust and extremely suitable for industrial use. The Size come from NPT1/4 to NPT2 . There is a huge assortment available for both common and unusual solutions. The uncompromising use of high-quality materials ensures the outstanding quality of these cable glands.

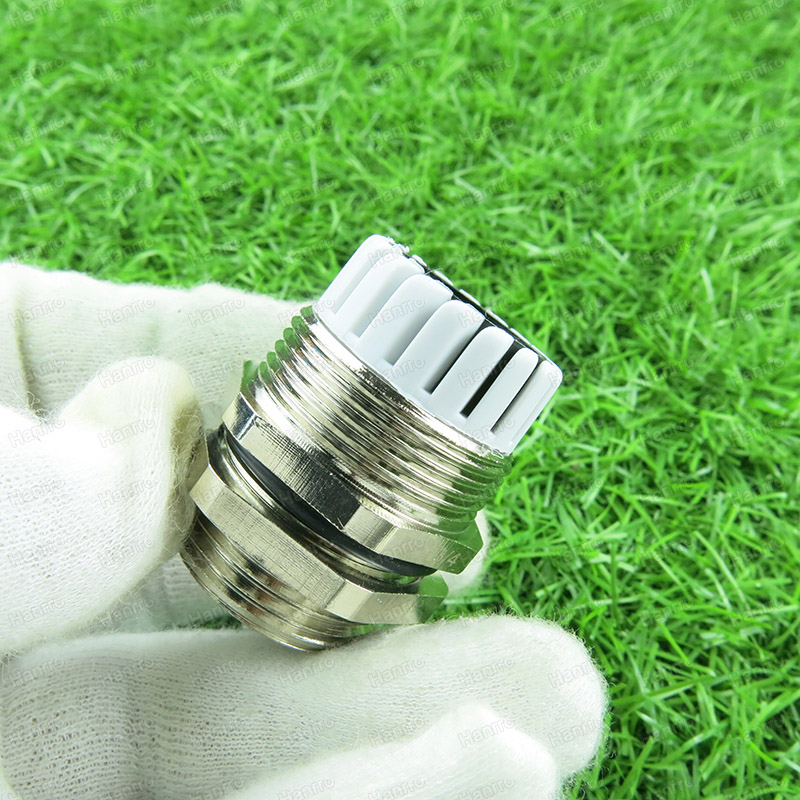

Clamping Insert : Nylon 66 V2 According to UL94 ( V0 can be done on request)
Material : Nickel Plated Brass
Material of O-Ring : NBR
NEMA Type Rating : 4 , 4X , 6
Protection Class : IP68-10 Bar , IP69K
Seal : NBR
Temperature Range : From -40℃ to + 100℃
If you need other material of sealing , such as Silicone , EPDM Etc
Please contact with us by email or call
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Cable Range(mm) | GL(mm) | H(mm) | SW1/SW2(mm) | AG(mm) | Panel Mounting Hole(mm) |
| B-NPT1/4 | 3-6.5 | 8 | 18 | 14/15 | 13.7 | 13.7-14 |
| B-NPT1/4 | 2-5 | 8 | 18 | 14/15 | 13.7 | 13.7-14 |
| B-NPT1/4 | 4-8 | 8 | 20 | 17 | 13.7 | 13.7-14 |
| B-NPT1/4 | 2-6 | 8 | 20 | 17 | 13.7 | 13.7-14 |
| B-NPT3/8 | 4-8 | 15 | 20 | 17/18 | 17 | 17-17.3 |
| B-NPT3/8 | 2-6 | 15 | 20 | 17/18 | 17 | 17-17.3 |
| B-NPT3/8 | 5-10 | 15 | 21 | 20 | 17 | 17-17.3 |
| B-NPT3/8 | 3-7 | 15 | 21 | 20 | 17 | 17-17.3 |
| B-NPT1/2 | 6-12 | 13 | 22 | 22 | 21.2 | 21.2-21.5 |
| B-NPT1/2 | 5-9 | 13 | 22 | 22 | 21.2 | 21.2-21.5 |
| B-NPT1/2 | 10-14 | 13 | 23 | 24 | 21.2 | 21.2-21.5 |
| B-NPT1/2 | 7-12 | 13 | 23 | 24 | 21.2 | 21.2-21.5 |
| B-NPT3/4 | 13-18 | 15 | 25 | 30 | 26.2 | 26.6-26.9 |
| B-NPT3/4 | 9-16 | 15 | 25 | 30 | 26.2 | 26.6-26.9 |
| B-NPT1 | 18-25 | 16 | 30 | 40 | 33.3 | 33.3-33.6 |
| B-NPT1 | 13-20 | 16 | 30 | 40 | 33.3 | 33.3-33.6 |
| B-NPT1 1/4 | 18-25 | 18 | 30 | 40/44 | 42 | 42-42.3 |
| B-NPT1 1/4 | 13-20 | 18 | 30 | 40/44 | 42 | 42-42.3 |
| B-NPT1 1/4 | 22-32 | 18 | 35 | 50 | 42 | 42-42.3 |
| B-NPT1 1/4 | 20-26 | 18 | 35 | 50 | 42 | 42-42.3 |
| B-NPT1 1/2 | 22-32 | 18 | 35 | 50 | 48 | 48-48.3 |
| B-NPT1 1/2 | 20-26 | 18 | 35 | 50 | 48 | 48-48.3 |
| B-NPT1 1/2 | 32-38 | 18 | 38 | 57 | 48 | 48-48.3 |
| B-NPT1 1/2 | 25-31 | 18 | 38 | 57 | 48 | 48-48.3 |
| B-NPT2 | 37-44 | 18 | 40 | 64 | 60 | 60-60.3 |
| B-NPT2 | 29-35 | 18 | 40 | 64 | 60 | 60-60.3 |
