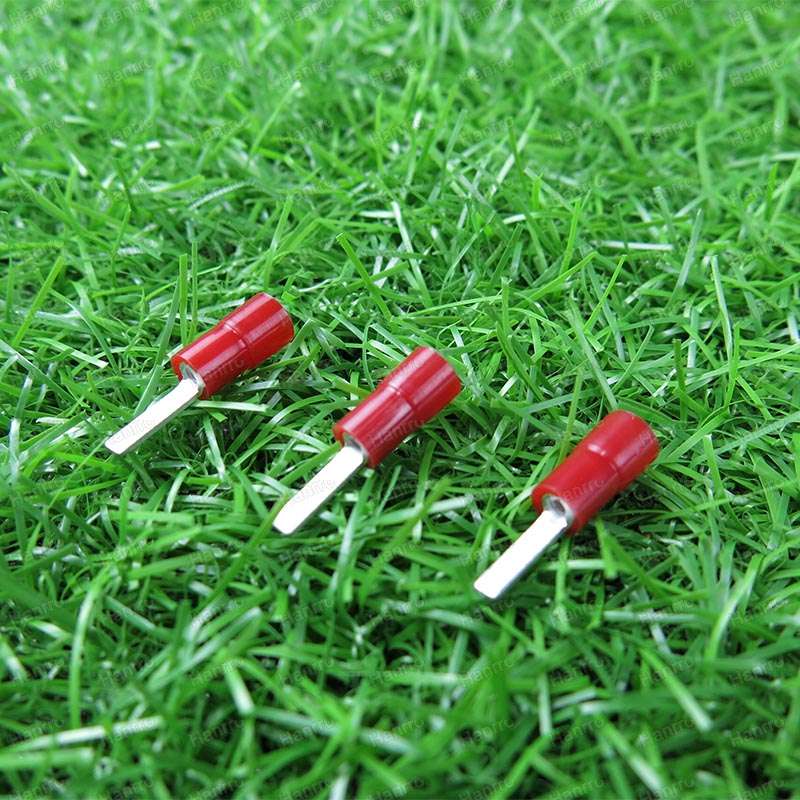

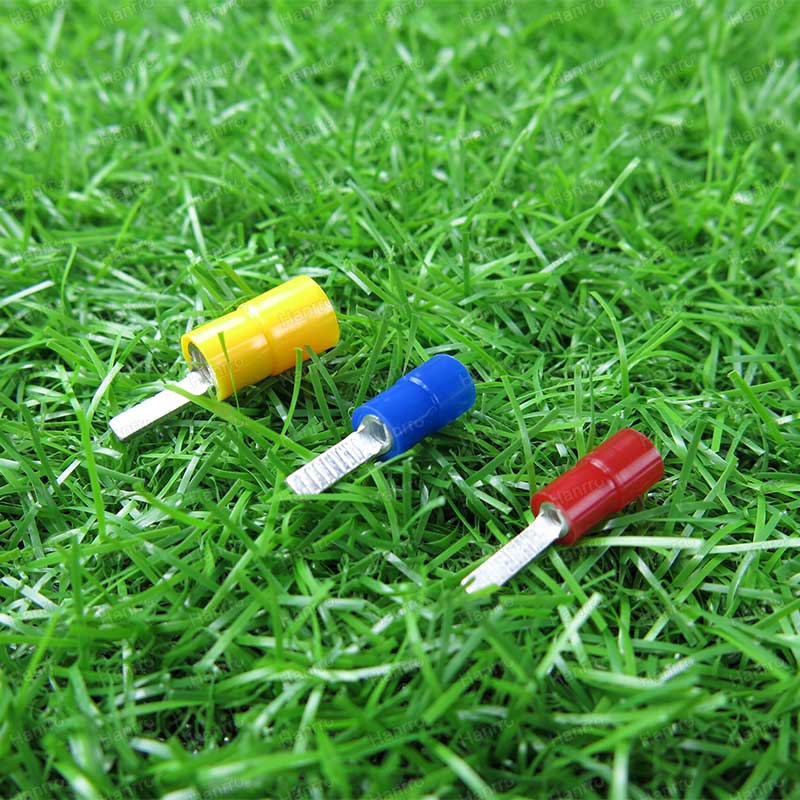

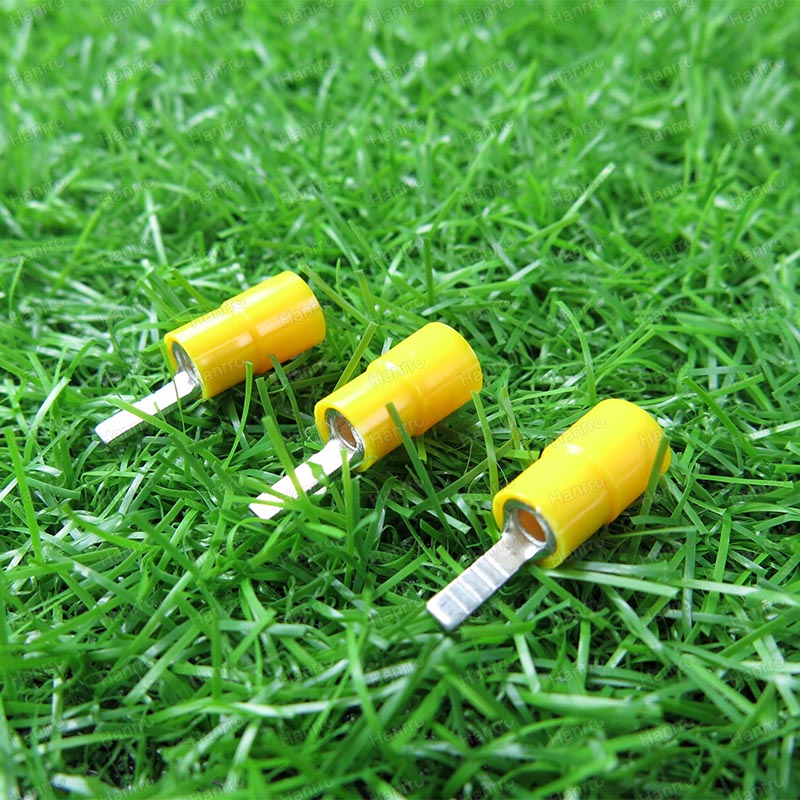

Nylon Insulated Blade Terminals

Product Name : Nylon Insulated Blade Terminals-Single Crimp

Material of Body : Copper , Tin Plated

Material of Insulation : Nylon

Color of Insulation : Red , Blue , Yellow

Testing Report : ROHS

Certification : CE

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

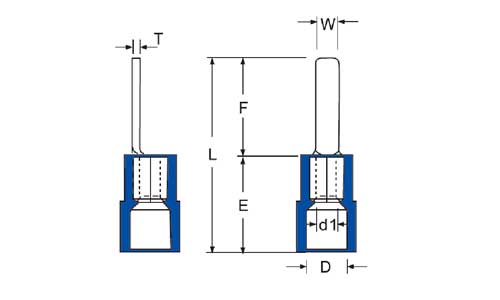

Nylon Insulated Blade Terminals-Drawing

Item No Wire Size(mm2) AWG W F L E D d1 T Color
DBNY 1.25-10 0.5-1.5 22-16 2.3 10.0 21.7 11.7 4.2 1.7 0.75
DBNY 1.25-14 2.3 14.0 25.7
DBNY 1.25-18 2.2 18.0 29.7
DBNY 2-10 1.5-2.5 16-14 2.8 10.0 21.7 11.7 4.9 2.3 0.8
DBNY 2-14 2.4 14.0 25.7
DBNY 2-18 2.2 18.0 29.7
DBNY 5.5-10 4.0-6.0 12-10 2.8 10.0 24.0 14.0 6.5 3.4 1.0
DBNY 5.5-14 4.5 14.0 28.0
DBNY 5.5-18 4.5 18.0 32.0
