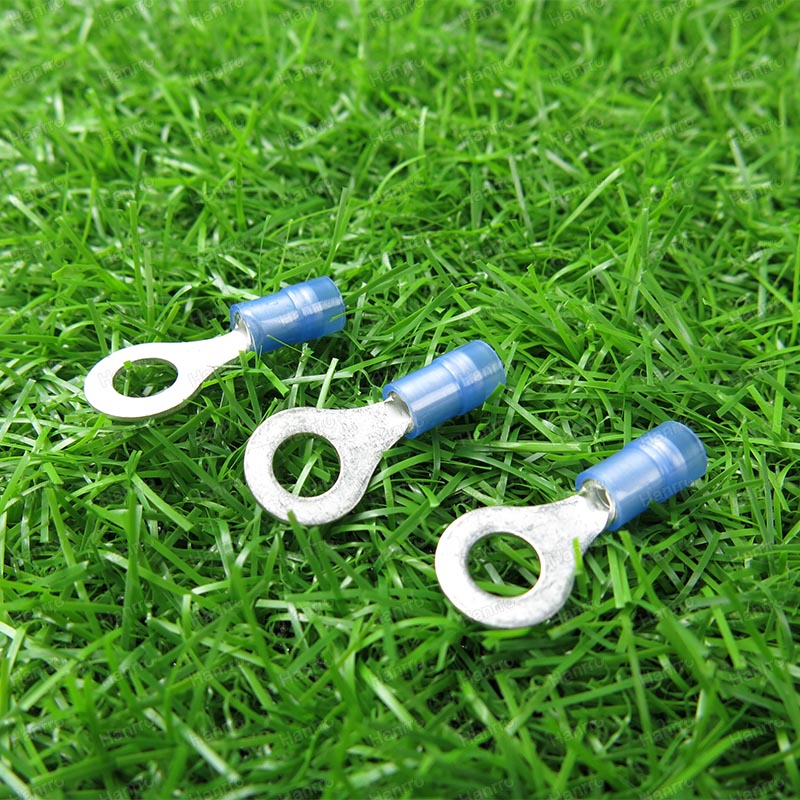

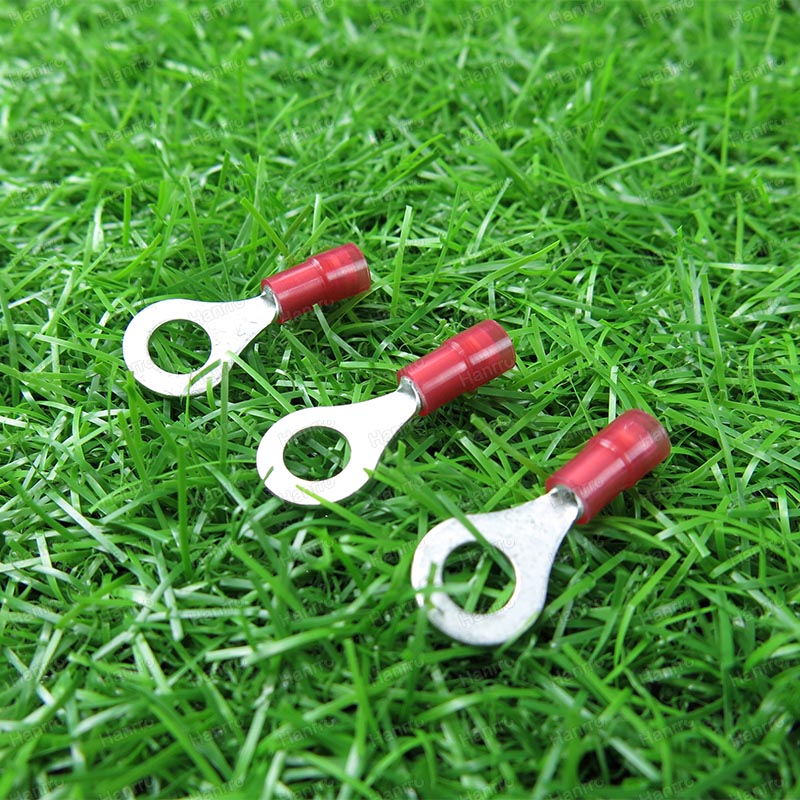

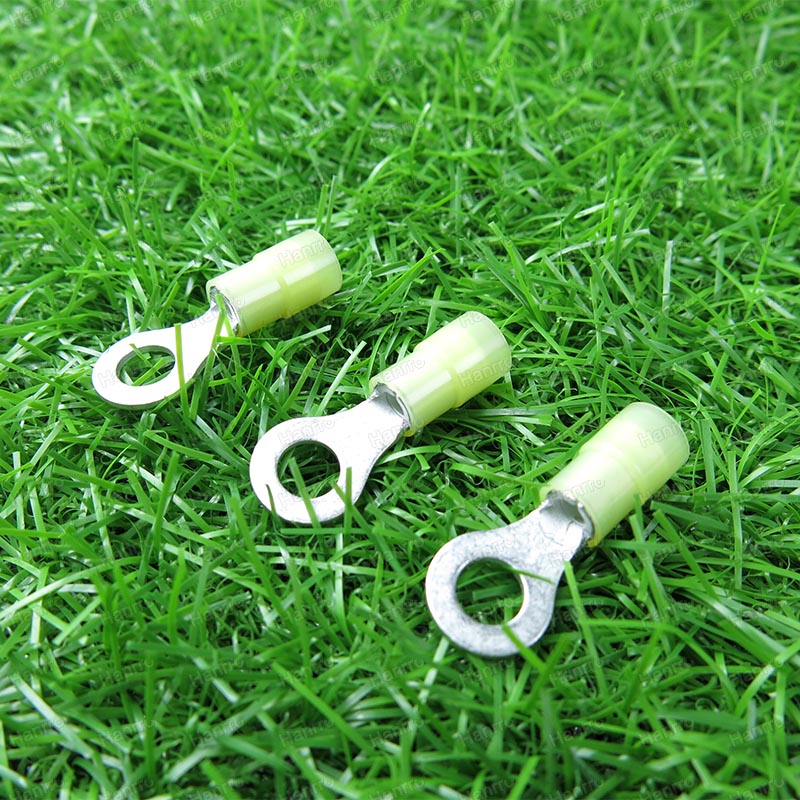

Nylon Insulated Ring Terminals provide superior insulation versus vinyl ring terminals. Insulation is securely molded and is flared for easier wire insertion. Allows for excellent mechanical crimp and wire strain relief. Works best when the terminal is double crimped – once on the wire, and a second time on the insulation of the wire. Industry standard color-coding indicates wire range. Rated to 600 volts and 221°F (105°C). Manufactured in the China
Product Name : Nylon Insulated Ring Terminals-Double Crimp
Material of Body : Copper , Tin Plated
Material of Sleeve : Copper, Tin Plated
Material of Insulation : Nylon

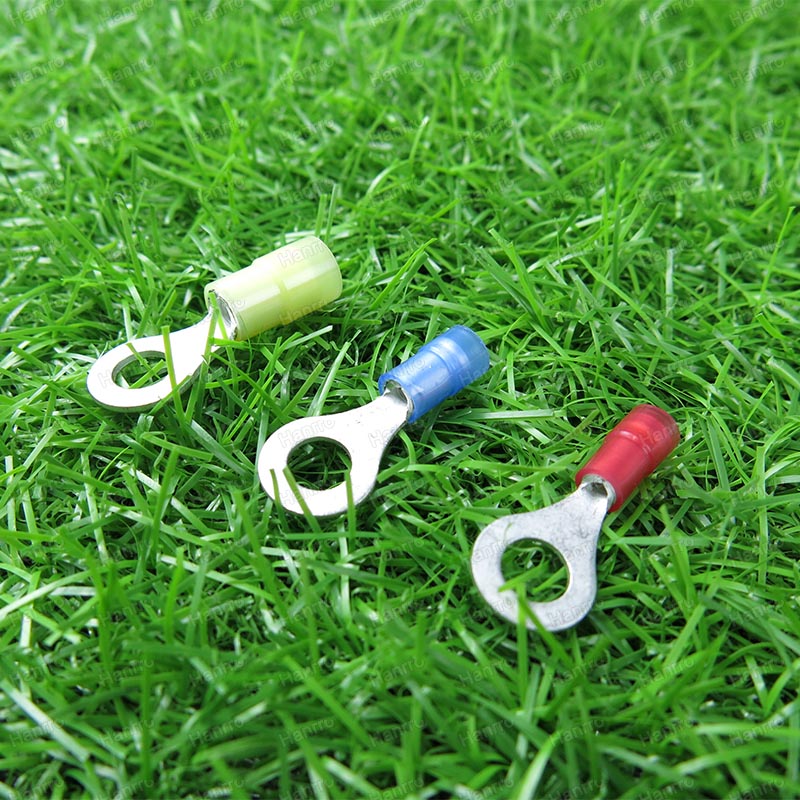

Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

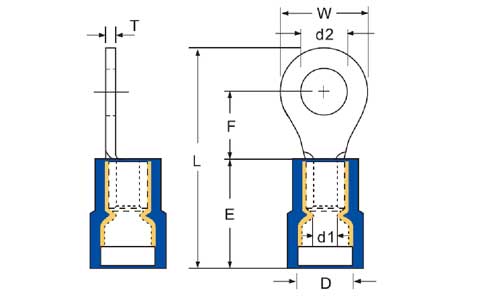

| Item No | Wire Size(mm2) | AWG | d2 | W | F | L | E | D | d1 | T | Color | ||||
| mm | USA | ||||||||||||||
| RNYD 1.25-3 | 0.5-1.5 | 22-16 | 3.2 | #4 | 5.7 | 4.9 | 18.8 | 11.7 | 4.7 | 1.7 | 0.75 | ||||
| RNYD 1.25-3.5S | 3.7 | #6 | 5.7 | 4.9 | 18.8 | ||||||||||
| RNYD 1.25-3.5M | 3.7 | #6 | 6.6 | 6.3 | 21.1 | ||||||||||
| RNYD 1.25-3.5L | 3.7 | #6 | 8.0 | 7.0 | 22.5 | ||||||||||
| RNYD 1.25-4S | 4.3 | #8 | 6.6 | 6.3 | 21.1 | ||||||||||
| RNYD 1.25-4L | 4.3 | #8 | 8.0 | 7.0 | 22.5 | ||||||||||
| RNYD 1.25-5S | 5.3 | #10 | 8.0 | 7.0 | 22.5 | ||||||||||
| RNYD 1.25-5L | 5.3 | #10 | 9.8 | 8.5 | 24.0 | ||||||||||
| RNYD 1.25-6S | 6.4 | 1/4" | 9.8 | 8.5 | 24.0 | ||||||||||
| RNYD 1.25-6L | 6.4 | 1/4" | 11.6 | 11.1 | 28.5 | ||||||||||
| RNYD 1.25-8 | 8.4 | 5/16" | 11.6 | 11.1 | 28.5 | ||||||||||
| RNYD 1.25-10 | 10.5 | 3/8" | 13.6 | 13.9 | 32.6 | ||||||||||
| RNYD 1.25-12 | 13.0 | 1/2" | 19.2 | 16.5 | 37.0 | ||||||||||
| RNYD 1.25-14 | 15.0 | 9/16" | 27.0 | 21.0 | 45.3 | 0.8 | |||||||||
| RNYD 1.25-16 | 17.0 | 5/8" | 27.0 | 21.0 | 45.3 | ||||||||||
| RNYD 1.25-20 | 21.0 | 3/4" | 27.0 | 21.0 | 45.3 | ||||||||||
| RNYD 2-3 | 1.5-2.5 | 16-14 | 3.2 | #4 | 6.6 | 4.3 | 18.8 | 11.7 | 5.6 | 2.3 | 0.8 | ||||
| RNYD 2-3.5S | 3.7 | #6 | 6.6 | 4.3 | 18.8 | ||||||||||
| RNYD 2-3.5M | 3.7 | #6 | 6.6 | 6.5 | 21.0 | ||||||||||
| RNYD 2-3.5L | 3.7 | #6 | 8.5 | 7.7 | 23.5 | ||||||||||
| RNYD 2-4S | 4.3 | #8 | 6.6 | 6.5 | 21.0 | ||||||||||
| RNYD 2-4L | 4.3 | #8 | 8.5 | 7.7 | 23.5 | ||||||||||
| RNYD 2-5S | 5.3 | #10 | 8.5 | 7.7 | 23.5 | ||||||||||
| RNYD 2-5L | 5.3 | #10 | 9.5 | 7.2 | 23.5 | ||||||||||
| RNYD 2-6S | 6.4 | 1/4" | 9.5 | 7.2 | 23.5 | ||||||||||
| RNYD 2-6L | 6.4 | 1/4" | 12.0 | 11.0 | 28.6 | ||||||||||
| RNYD 2-8 | 8.4 | 5/16" | 12.0 | 11.0 | 28.6 | ||||||||||
| RNYD 2-10 | 10.5 | 3/8" | 14.6 | 13.9 | 32.2 | ||||||||||
| RNYD 2-12 | 13.0 | 1/2" | 19.2 | 16.5 | 37.5 | ||||||||||
| RNYD2-14 | 15.0 | 9/16" | 27.0 | 21.0 | 45.3 | ||||||||||
| RNYD2-16 | 17.0 | 5/8" | 27.0 | 21.0 | 45.3 | ||||||||||
| RNYD2-18 | 21.0 | 3/4" | 27.0 | 21.0 | 45.3 | ||||||||||
| RNYD 5.5-3 | 4.0-6.0 | 12-10 | 3.2 | #4 | 7.2 | 5.9 | 22.7 | 14.0 | 7.1 | 3.4 | 1.0 | ||||
| RNYD 5.5-3.5 | 3.7 | #6 | 7.2 | 5.9 | 22.7 | ||||||||||
| RNYD 5.5-4S | 4.3 | #8 | 7.2 | 5.9 | 22.7 | ||||||||||
| RNYD 5.5-4L | 4.3 | #8 | 9.5 | 8.3 | 26.3 | ||||||||||
| RNYD 5.5-5 | 5.3 | #10 | 9.5 | 8.3 | 26.3 | ||||||||||
| RNYD 5.5-6 | 6.4 | 1/4" | 12.0 | 13.0 | 30.0 | ||||||||||
| RNYD 5.5-8 | 8.4 | 5/16" | 15.0 | 13.7 | 34.7 | ||||||||||
| RNYD 5.5-10 | 10.5 | 3/8" | 15.0 | 13.7 | 34.7 | ||||||||||
| RNYD 5.5-12 | 13.0 | 1/2" | 19.2 | 16.0 | 39.0 | ||||||||||
| RNYD 5.5-14 | 15.0 | 9/16" | 32.0 | 25.2 | 54.2 | ||||||||||
| RNYD 5.5-16 | 17.0 | 5/8" | 32.0 | 25.2 | 54.2 | ||||||||||
| RNYD 5.5-20 | 21.0 | 3/4" | 32.0 | 25.2 | 54.2 | ||||||||||
