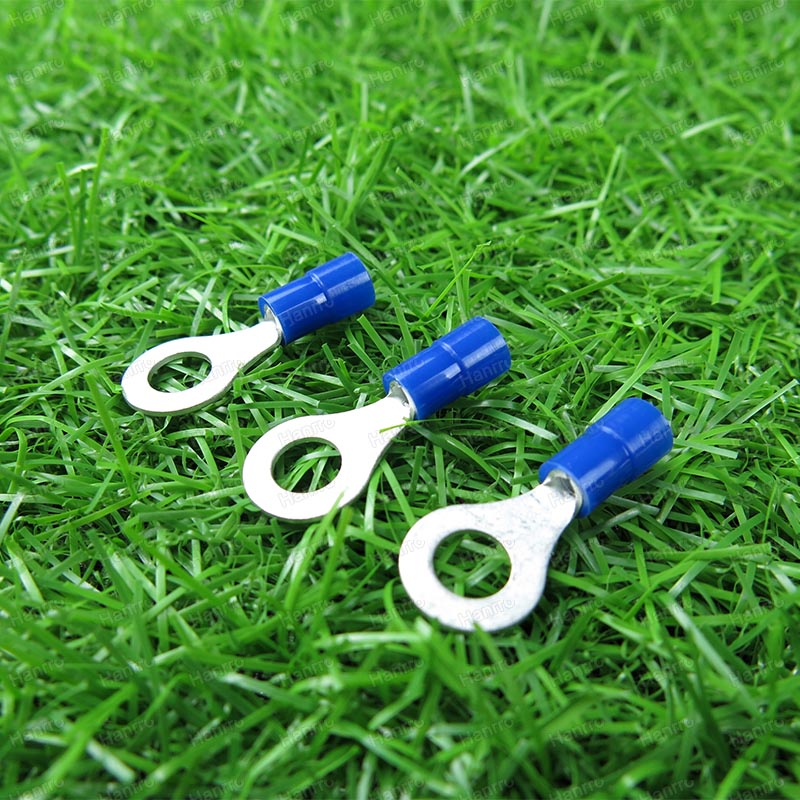

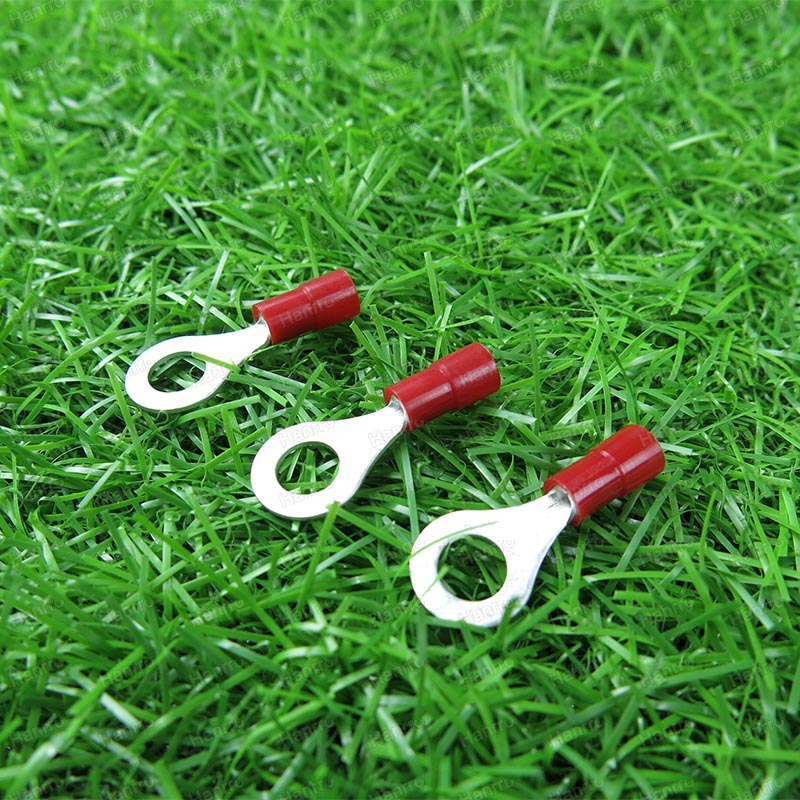

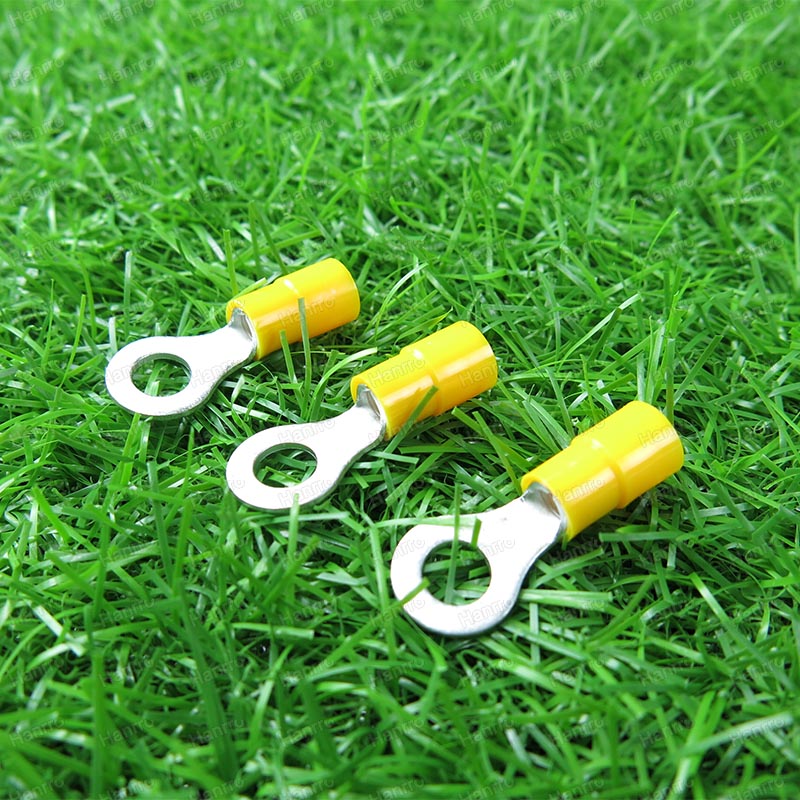

Nylon Ring Terminals

Nylon Ring Terminals are used to attach wires to studs or posts, and come in a variety of types and sizes. They are the most common and inexpensive insulated ring terminals that are easy to crimp and provide an insulated cover over the crimped area. Nylon Ring Terminals are a higher performance insulated terminal, and heat shrink insulated ring terminals have a heat shrink sleeve already attached to the terminal which both protects and seals the connection from environmental factors. How do I choose the correct ring terminal for my application? Take a moment to watch this video to find your answer. Manufactured in the China

Product Name : Nylon Insulated Ring Terminals-Single Crimp

Material of Body : Copper , Tin Plated

Material of Insulation : Nylon

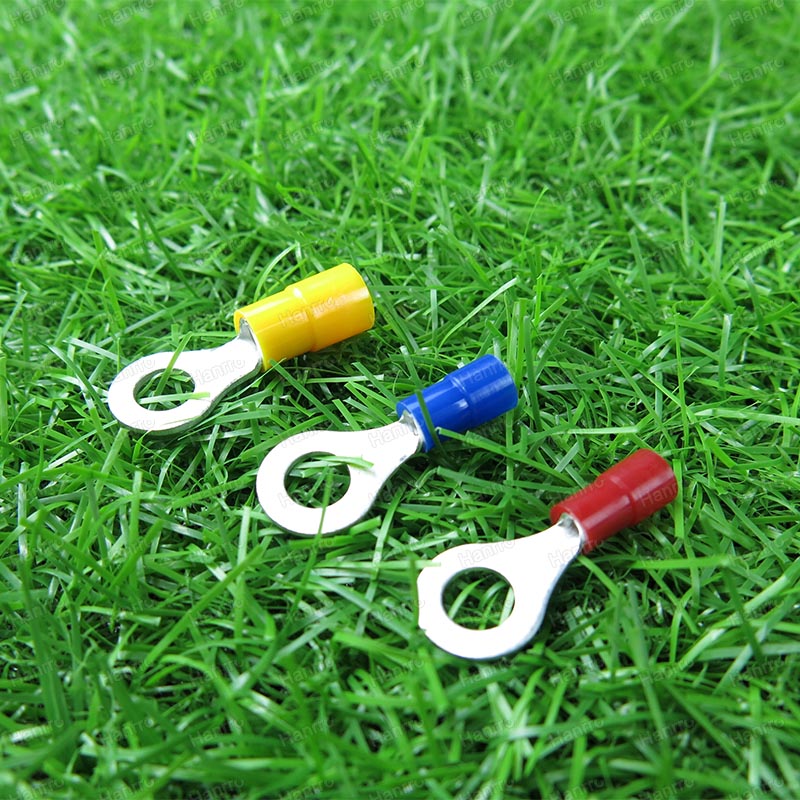

Color of Insulation : Red , Blue , Yellow

Testing Report : ROHS

Certification : CE

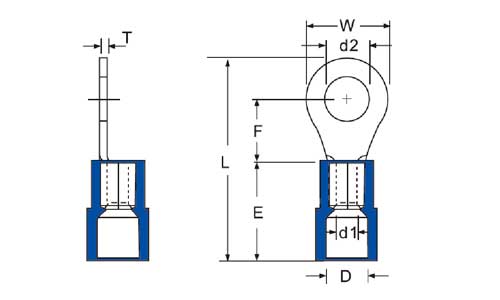

Nylon Ring Terminals-Drawing

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No  Wire Size(mm2) AWG d2 d1  Color
mm USA
RNY 1.25-3 0.5-1.5 22-16 3.2 #4 5.7 4.9 18.8 11.7 4.2 1.7 0.75
RNY 1.25-3.5S 3.7 #6 5.7 4.9 18.8
RNY 1.25-3.5M 3.7 #6 6.6 6.3 21.1
RNY 1.25-3.5L 3.7 #6 8.0 7.0 22.5
RNY 1.25-4S 4.3 #8 6.6 6.3 21.1
RNY 1.25-4L 4.3 #8 8.0 7.0 22.5
RNY 1.25-5S 5.3 #10 8.0 7.0 22.5
RNY 1.25-5L 5.3 #10 9.8 8.5 24.0
RNY 1.25-6S 6.4 1/4" 9.8 8.5 24.0
RNY 1.25-6L 6.4 1/4" 11.6 11.1 28.5
RNY 1.25-8 8.4 5/16" 11.6 11.1 28.5
RNY 1.25-10 10.5 3/8" 13.6 13.9 32.6
RNY 1.25-12 13.0 1/2" 19.2 16.5 37.0
RNY 1.25-14 15.0 9/16" 27.0 21.0 45.3 0.8
RNY 1.25-16 17.0 5/8" 27.0 21.0 45.3
RNY 1.25-20 21.0 3/4" 27.0 21.0 45.3
RNY 2-3 1.5-2.5 16-14 3.2 #4 6.6 4.3 18.8 11.7 4.9 2.3 0.8
RNY 2-3.5S 3.7 #6 6.6 4.3 18.8
RNY 2-3.5M 3.7 #6 6.6 6.5 21.0
RNY 2-3.5L 3.7 #6 8.5 7.7 23.5
RNY 2-4S 4.3 #8 6.6 6.5 21.0
RNY 2-4L 4.3 #8 8.5 7.7 23.5
RNY 2-5S 5.3 #10 8.5 7.7 23.5
RNY 2-5L 5.3 #10 9.5 7.2 23.5
RNY 2-6S 6.4 1/4" 9.5 7.2 23.5
RNY 2-6L 6.4 1/4" 12.0 11.0 28.6
RNY 2-8 8.4 5/16" 12.0 11.0 28.6
RNY 2-10 10.5 3/8" 14.6 13.9 32.2
RNY 2-12 13.0 1/2" 19.2 16.5 37.5
RNY2-14 15.0 9/16" 27.0 21.0 45.3
RNY2-16 17.0 5/8" 27.0 21.0 45.3
RNY2-18 21.0 3/4" 27.0 21.0 45.3
RNY 5.5-3 4.0-6.0 12-10 3.2 #4 7.2 5.9 22.7 14.0 6.5 3.4 1.0
RNY 5.5-3.5 3.7 #6 7.2 5.9 22.7
RNY 5.5-4S 4.3 #8 7.2 5.9 22.7
RNY 5.5-4L 4.3 #8 9.5 8.3 26.3
RNY 5.5-5 5.3 #10 9.5 8.3 26.3
RNY 5.5-6 6.4 1/4" 12.0 13.0 30.0
RNY 5.5-8 8.4 5/16" 15.0 13.7 34.7
RNY 5.5-10 10.5 3/8" 15.0 13.7 34.7
RNY 5.5-12 13.0 1/2" 19.2 16.0 39.0
RNY 5.5-14 15.0 9/16" 32.0 25.2 54.2
RNY 5.5-16 17.0 5/8" 32.0 25.2 54.2
RNY 5.5-20 21.0 3/4" 32.0 25.2 54.2
