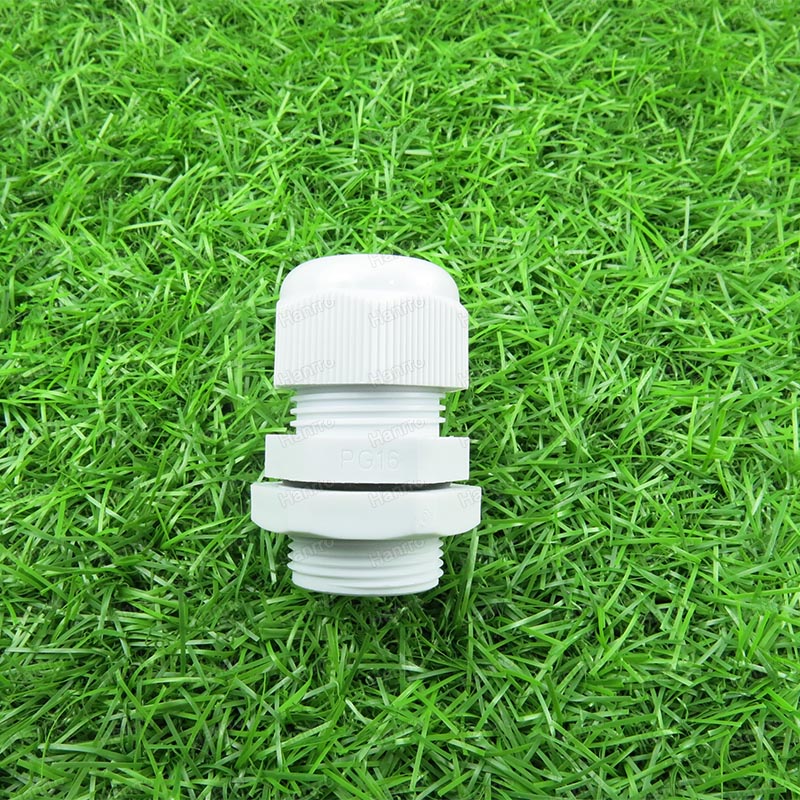

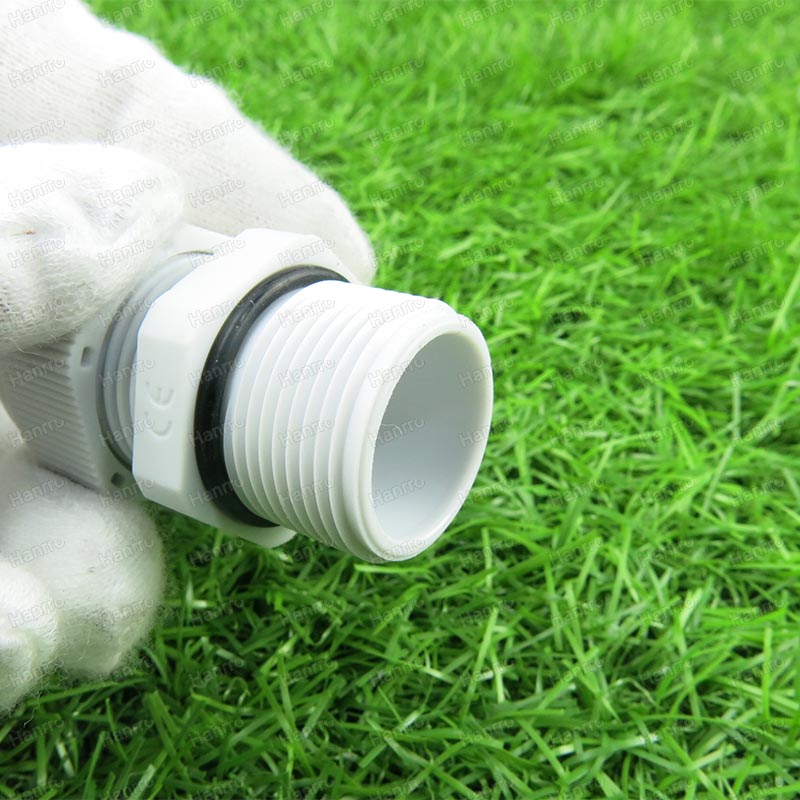

PG Thread Cable Glands with Long Thread Length

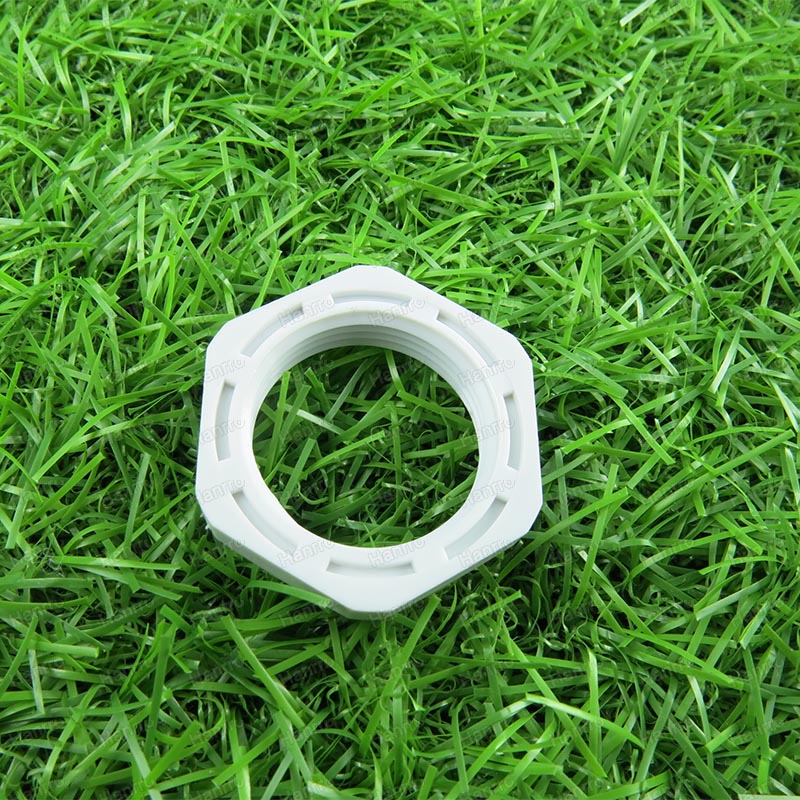

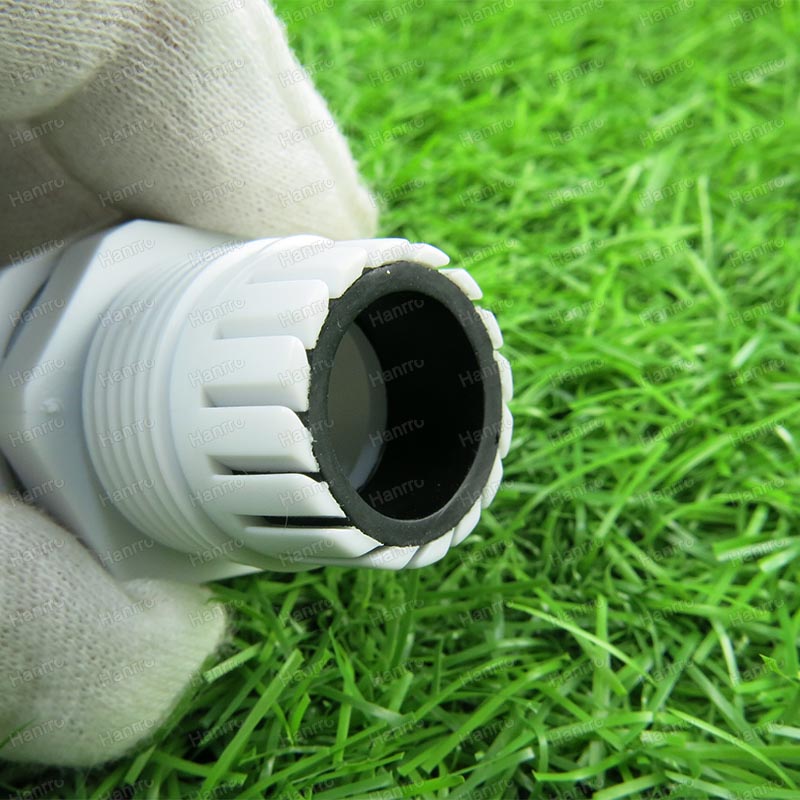

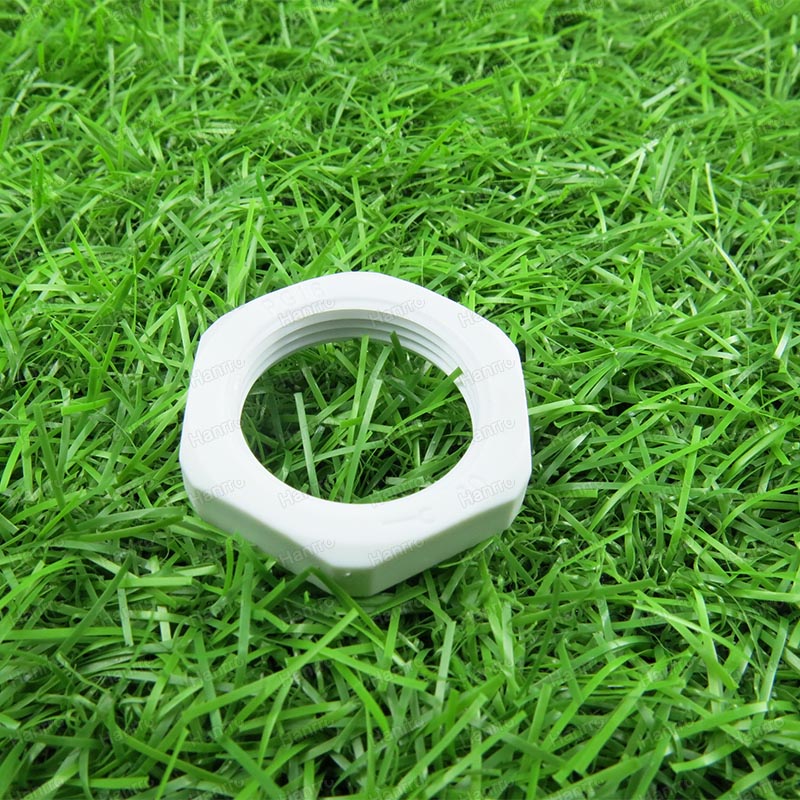

PG Thread Cable Glands with Long Thread Length are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all PG threaded parts. Colours offered are Black, Gray, Red, White and Blue.

Product Name : PG Thread Cable Glands with Long Thread Length

Material of Body : Halogen Free Nylon 6

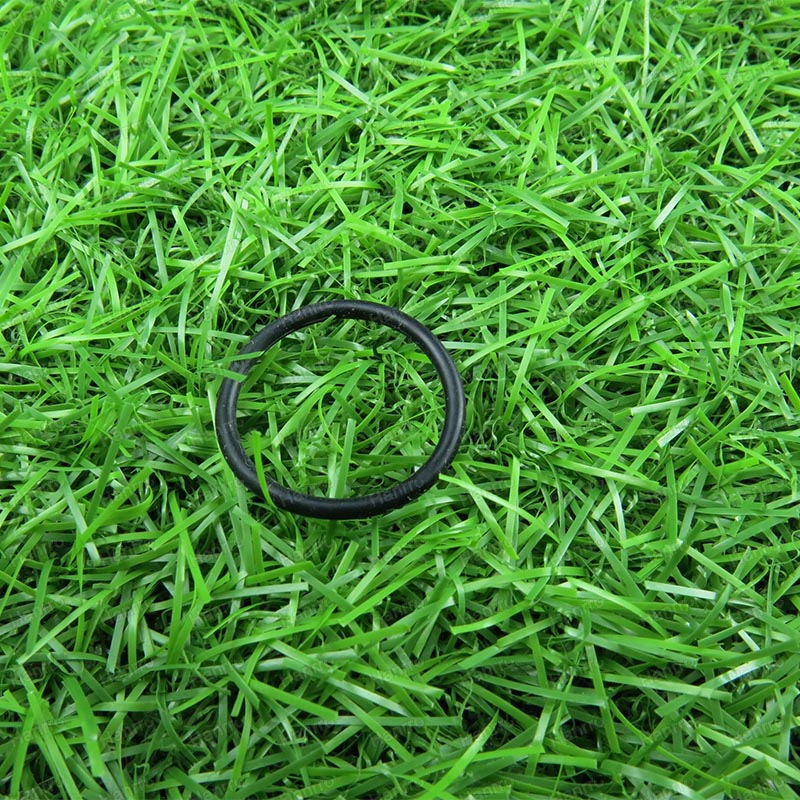

Material of Sealing : Neoprene( EPDM can be done as customer requirement )

Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc

Operating Temperature : From -20℃ to + 80℃

Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)

Protection Grade : IP68

Certification : CE

Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc

Package : 100 Pcs / Polybag

PG Thread Cable Glands-Drawing

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No. Cable Range(mm) GL(mm) H(mm) Spanner Size(mm) AG(mm)
L-PG7 3–6.5 15 22 15/16 12.5
L-PG7 2–5 15 22 15/16 12.5
L-PG9 4–8 15 26 19 15.2
L-PG9 2–6 15 26 19 15.2
L-PG11 5–10 15 27 22 18.6
L-PG11 3–7 15 27 22 18.6
L-PG13.5 6–12 15 28 24 20.4
L-PG13.5 5–9 15 28 24 20.4
L-PG16 10–14 15 30 27 22.5
L-PG16 7–12 15 30 27 22.5
L-PG21 13–18 15 35 33 28.3
L-PG21 9–16 15 35 33 28.3
L-PG29 18–25 18 40 41/42 37
L-PG29 13–20 18 40 41/42 37
L-PG36 22–32 18 48 52/53 47
L-PG36 20–26 18 48 52/53 47
L-PG42 32–38 18 49 60/61 54
L-PG42 25–31 18 49 60/61 54
L-PG48 37–44 18 50 64 59.3
L-PG48 29–35 18 50 64 59.3
