PG to PG Reducer are designed to meet special requirement.

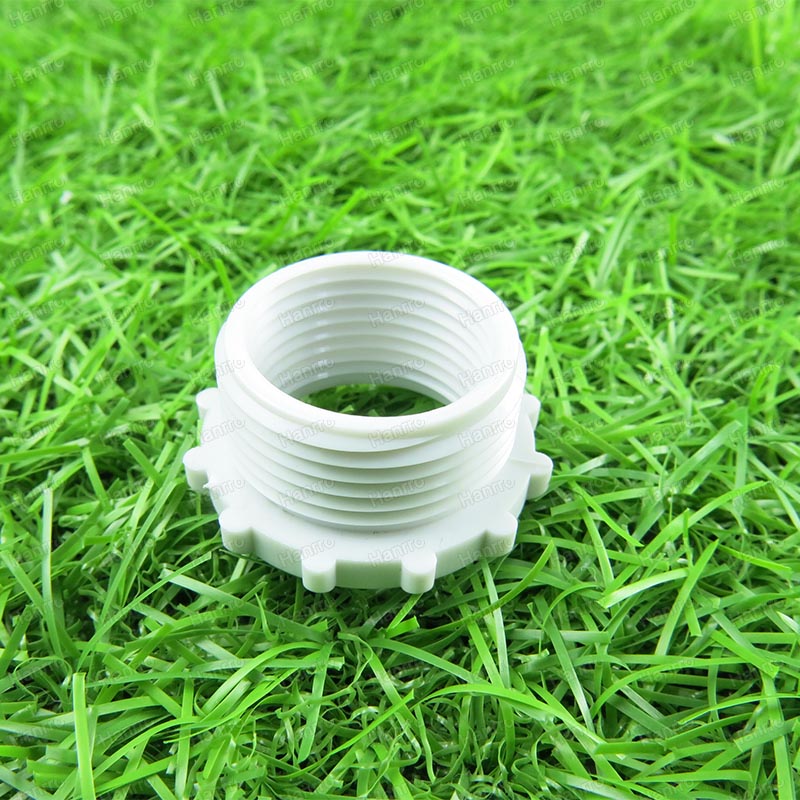

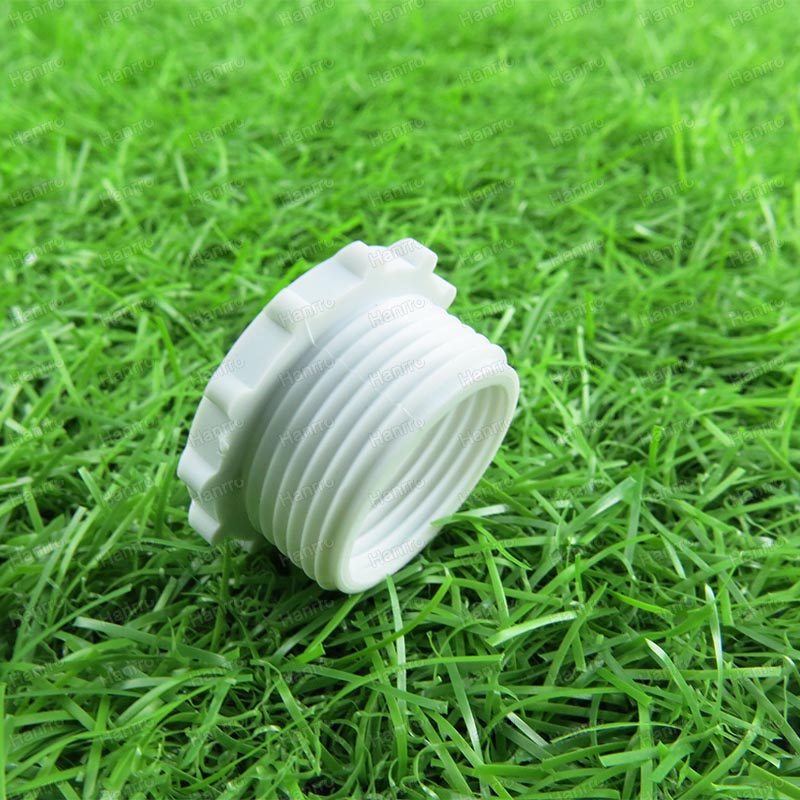

Product Name : PG to PG Reducer
Material : Halogen Free Nylon 6
Color : Grey , Black , White , Red and Blue Etc
Operating Temperature : From -20℃ to + 80℃
Flammability : UL94V-2 ( UL94V-0 can be done as requirement )
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

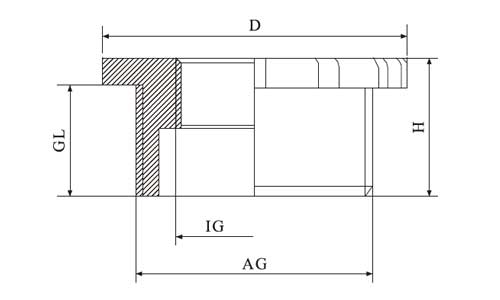

| Item No. | GL(mm) | H(mm) | D(mm) | AG(mm) | IG(mm) |
| PG13.5-PG9 | 8 | 12 | 27 | 20.4 | 15.2 |
| PG16-PG9 | 10 | 13 | 29 | 22.5 | 15.2 |
| PG16-PG11 | 10 | 13 | 29 | 22.5 | 18.6 |
| PG21-PG13.5 | 11 | 13.5 | 36 | 28.3 | 20.4 |
| PG21-PG16 | 11 | 13.5 | 36 | 28.3 | 22.5 |
| PG29-PG21 | 11 | 13.5 | 46 | 37 | 28.3 |
| PG36-PG29 | 11 | 15 | 58 | 47 | 37 |
