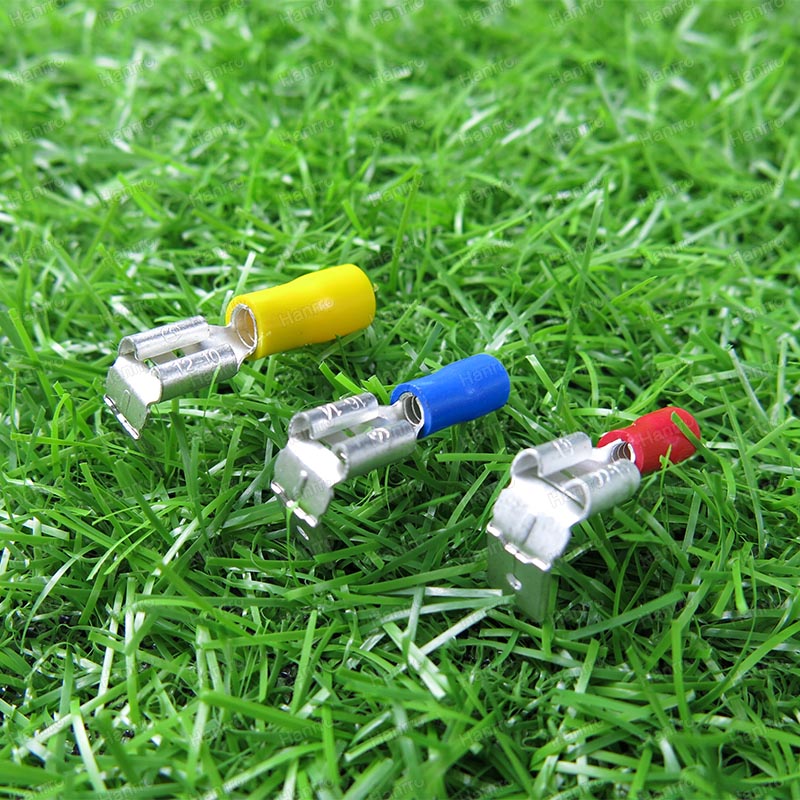

Product Name : Vinyl Insulated Piggyback Disconnect-Double Crimp
Material of Body : Brass , Tin Plated
Material of Sleeve : Brass , Tin Plated
Material of Insulation : Vinyl
Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Insulated Piggyback Disconnects
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Wire Size(mm2) | AWG | NEMA TAB | W | W1 | F | F1 | L | B | D | C | Color | ||
| PBDD1-250 | 0.5-1.5 | 22-16 | 0.8 x 6.35 | 6.6 | 6.35 | 8.0 | 8.2 | 22.5 | 11.2 | 4.2 | 1.7 | |||
| PBDD2-250 | 1.5-2.5 | 16-14 | 0.8 x 6.35 | 6.6 | 6.35 | 8.0 | 8.2 | 22.5 | 11.2 | 5.1 | 2.3 | |||
| PBDD5-250 | 4.0-6.0 | 12-10 | 0.8 x 6.35 | 6.6 | 6.35 | 8.0 | 8.2 | 24.0 | 14.0 | 7.2 | 3.4 | |||
