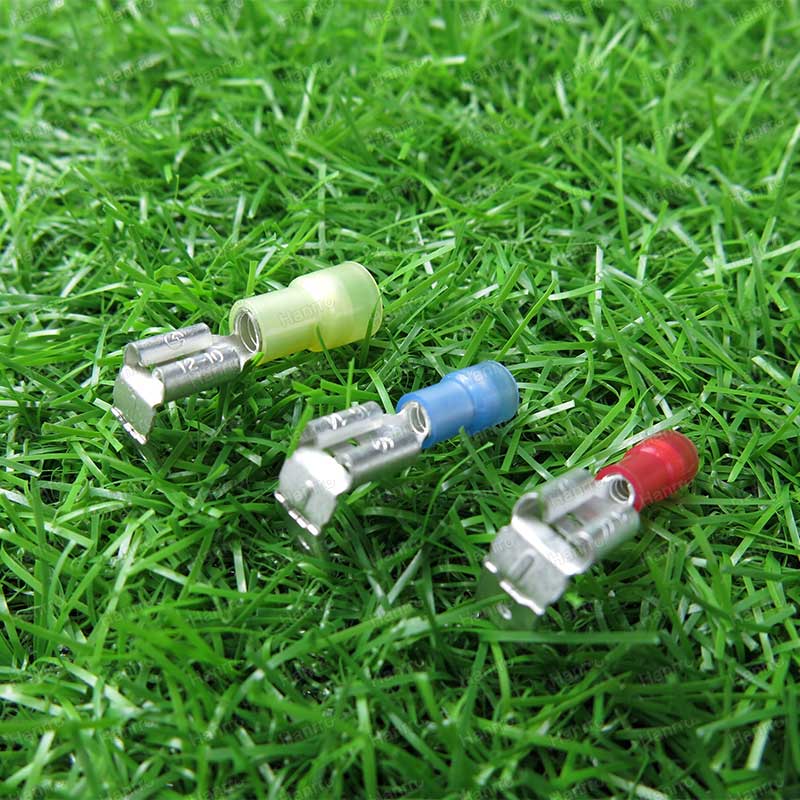

Piggyback Wire Disconnect

Product Name : Nylon Insulated Piggyback Disconnect-Double Crimp

Material of Body : Brass , Tin Plated

Material of Sleeve : Brass , Tin Plated

Material of Insulation : Nylon

Color of Insulation : Red , Blue , Yellow

Testing Report : ROHS

Certification : CE

Insulated Piggyback Disconnects

Piggyback Quick Disconnects

Piggyback Female Disconnects

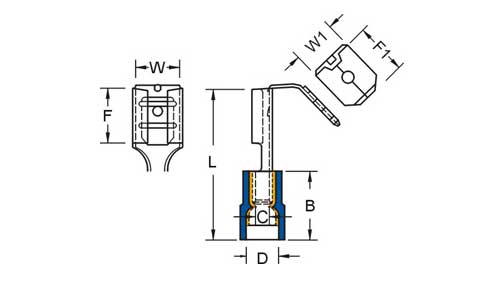

Piggyback Wire Disconnect-Drawing

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No  Wire Size(mm2) AWG NEMA TAB W W1 F F1 L B D C Color
PBDNYD1-250 0.5-1.5 22-16 0.8 x 6.35 6.6 6.35 8.0 8.2 23.0 11.0 4.0 1.7
PBDNYD2-250 1.5-2.5 16-14 0.8 x 6.35 6.6 6.35 8.0 8.2 23.0 11.0 5.0 2.3
PBDNYD5-250 4.0-6.0 12-10 0.8 x 6.35 6.6 6.35 8.0 8.2 24.0 13.0 6.5 3.4
