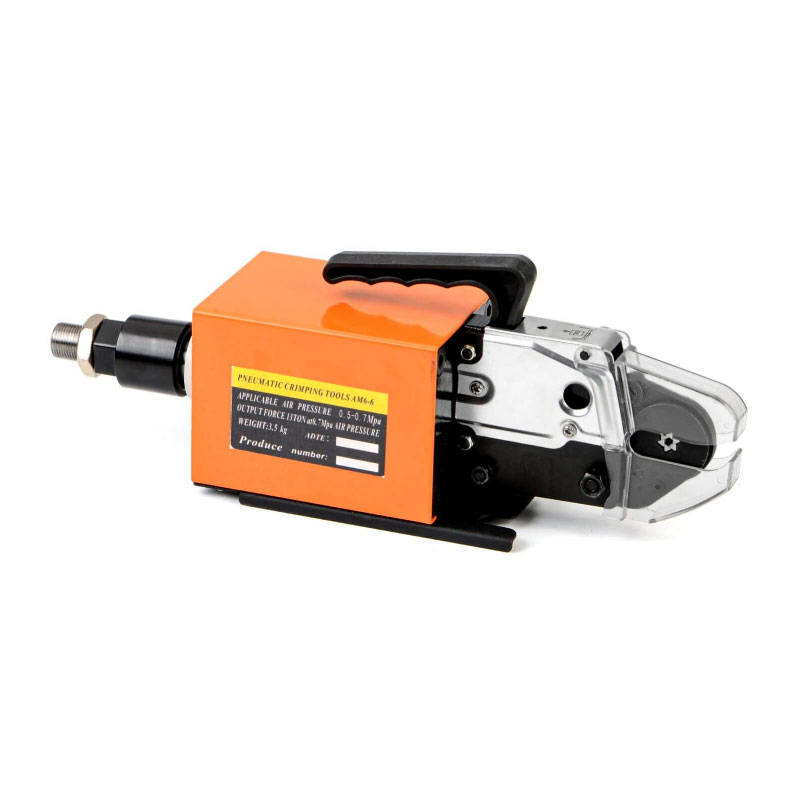

Pneumatic Wire Ferrule Crimpers

Pneumatic Wire Ferrule Crimpers are Used For Crimping Wire Ferrules From 0.25-6mm2. Due to Special Design , Hexagonal Crimping Make the Wire Connection Safety and Reliable.

Hanrro Ferrule Crimpers are Simple and Easy to use. Workers install the Ferrules
over the End of the Stripped Wire and Insert it into opening.Then Push the Footswitch Pedal to Initiate the Crimp Cycle. Once the Head Closes , It will Automatically Reopen after crimping.

The Resulting Crimp Features a Compact Hexagonal Cross Section which is Mechanically very strong and provide a Large Surface to Insure a Highly Efficient Electrical Contact.

Feature :

1 Light Weight and Easy to Carry

2 Hexagonal Crimping Make Strong Connection

3 Efficient in Crimping Speed and Crimping Force

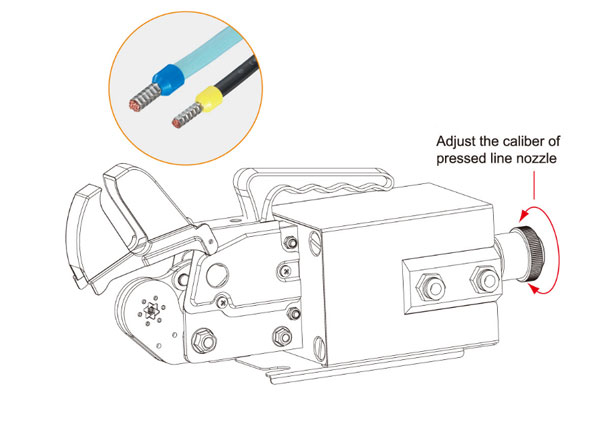

Pneumatic Wire Ferrule Crimpers-Drawing

FAQ :

1 Question : What is the Application of Pneumatic Wire Ferrule Crimpers ?

Answer : It is suitable for Insulated Wire Ferrules and Non-Insulated

Whether Nylon Insulated or Vinlyl , Both will be ok

2 Question : Which Size of Wire Ferrules be Suitable ?

Answer : 0.25-6mm2 be ok

If Your Ferrules Large than 6mm2 , Please Contact Hanrro Sales

They will give you recommendation Another Tools

3 Question : What is the Crimping Effect of This Crimper ?

Answer : Hexagonal

4 Question : When Machine arrived , How to do Next ?

Answer : It is very easy as Following :

A : Connect Air Hose to Pump and Machine by Correct Way

B : Strip Wire and Insert Ferrules

C : Insert Ferrules Into Head of Machine , Then Press the Footswitch , Finished

Attention : Please make sure the Air Pressure Over 0.4 MPA

Note : If You need Squared Crimping , Please visit : AM6-4

tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No Application Crimping Range Crimping Type Air Pressure Weight Dimension
AM6-6 Wire Ferrules 0.25-6mm2 Hexagonal 0.4-0.7 5 KGS 260 x 120 x 140mm
video
