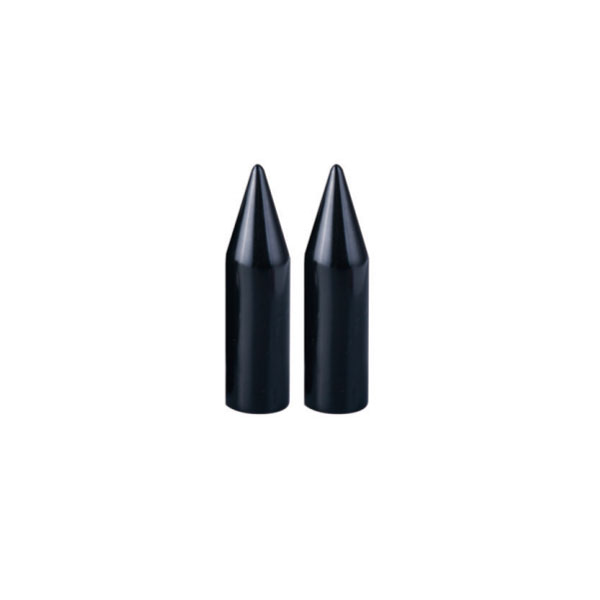

PVC Shround For Cable Glands Used to minimise the risk of dirt / foreign substances gathering on the cable gland body. Hanrro manufactures a range of push on shrouds which are used to minimise the risk of dirt or foreign substances gathering on the Cable Gland body, and/or point of cable to cable gland interface
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

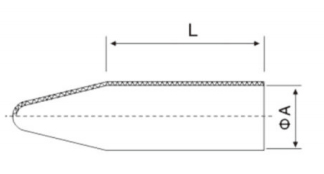

| Specifications | Size(mm) | |||
| Metric | G | NPT | ΦA | L |
| M20 | G1/2 | NPT1/2 | 26.8 | 80 |
| M20 | G1/G2 | NPT1/2 | 27 | 58 |
| M25 | G3/4 | NPT3/4 | 33 | 62 |
| M25 | G3/4 | NPT3/4 | 34 | 85 |
| M32 | G1 | NPT1 | 38 | 80 |
| M32 | G1 | NPT1 | 40 | 91 |
| M40 | G1 1/4 | NPT1 1/4 | 48.5 | 90 |
| M40 | G1 1/4 | NPT1 1/4 | 51 | 105 |
| M50 | G1 1/2 | NPT1 1/2 | 58.5 | 90 |
| M50 | G1 1/2 | NPT1 1/2 | 60.5 | 120 |
| M63 | G2 | NPT2 | 71.5 | 100 |
| M63 | G2 | NPT2 | 73 | 160 |
| M88 | G3 | NPT2 | 108 | 120 |
