Quick Wire Splice Connectors

Quick Wire Splice Connectors are designed from WAGO 222 Series. It is used for all wire types: solid, stranded, and flexible copper wires . With Operating Levers  Help , Connection be Easy and Reliable . It comes with Grey Color body and Different Color of Levers, Such as Orange , Blue , Yellow , Brown , Green Etc.

Feature :

These reusable connectors make the job much easier and neater, technological innovation reduce wiring time by 50%.

Terminates 0.5-4mm2 ( 22-12 AWG )

Rate Voltage 250V, Nominal current 32 A

FAQ :

Question : What is the Material of These Quick Wire Splice Connectors ?

Answer : The Material of Body will be Nylon 66

The Spring will be Stainless Steel

The Contact will be Pure Copper, 99.9%

Question : How Could We use It ?

Asnwer : Here is the Steps :

1 Make sure The Wire Range be 0.5-4mm2

2 Strip the Wire From 12-13mm

3 Open Lever to 90 Degree , Then Insert Wire , Then Put Down Lever , Done !

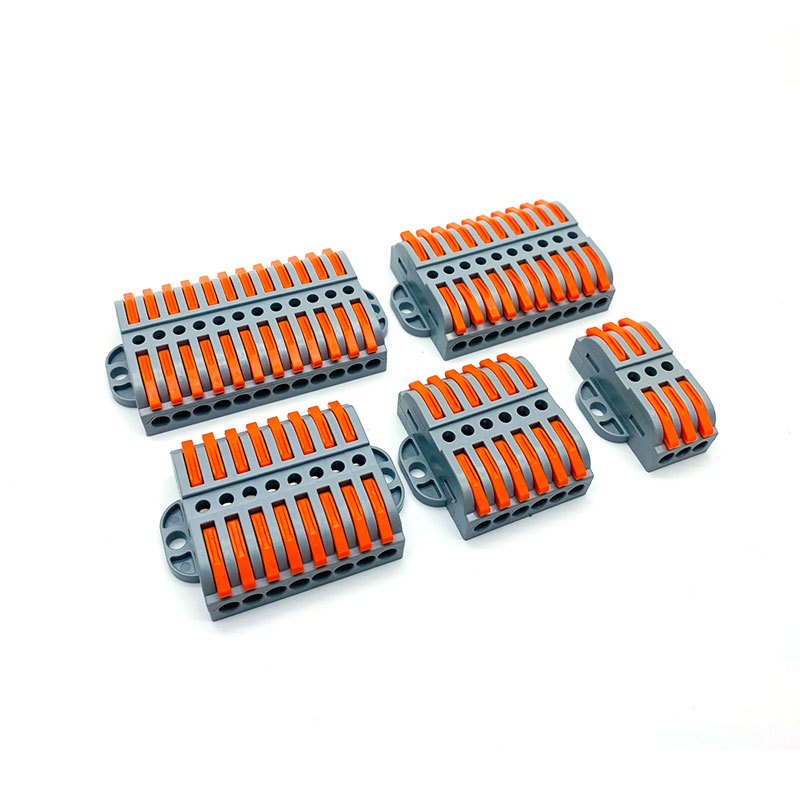

Question : How Many Different Type Could We choose ?

Answer : There are Total 8 Choice

2 In 2 Out , 3 In 3 Out , 4 In 4 Out , 5 In 5 Out , 6 In 6 Out , 8 In 8 Out

10 In 10 Out , 12 In 12 Out

Question : What is the Mounting Method ?

Answer : There are Screw Fixing Holes Beside the Connectors

You can use Screwdriver or Other Tools to Fix it into Wood or Other Surface

tag： Quick Wire Splice Connectors , Quick Wire Connectors
