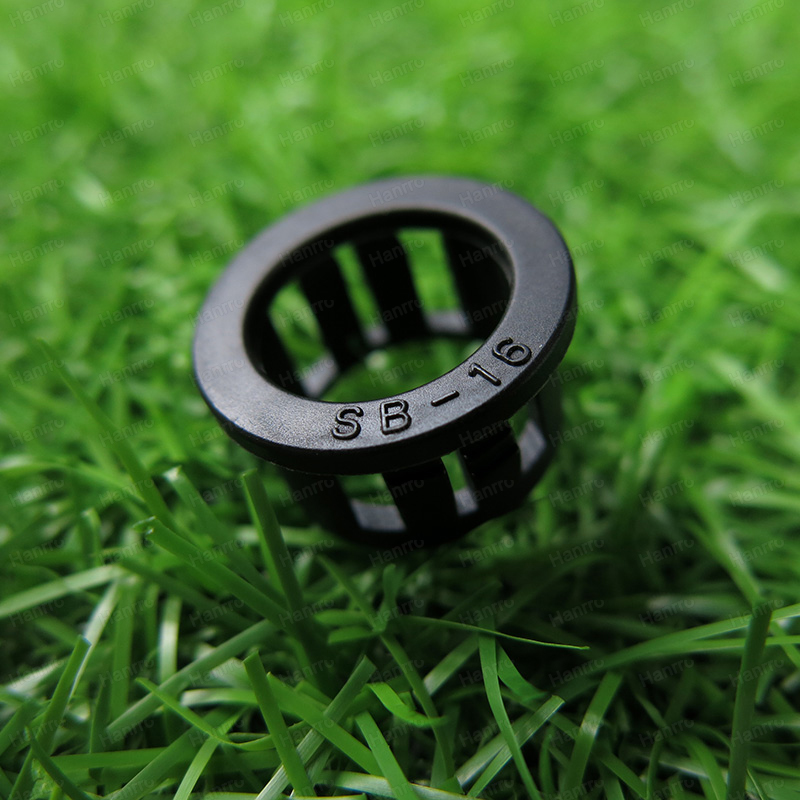

Snap Bushing are used to eliminate sharp edges and to protect wires when passing through holes. Designed to accommodate a variety of panel or box thickness, snap bushings will easily snap into place and resist up to 35 pounds of pull.
When selecting your size, please be aware of the thickness of the panel you will be using. Use the information below to help you select the proper bushing.
1/4″ Diameter Bushing: Panel thickness up to .062″ (1.6mm)
3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 3/8″, 1 1/2″, 1 3/4″, 2″ Diameter Bushing: Panel thickness up to .125″ (3.2mm)
2 1/2″ Diameter Bushing: Panel thickness up to .250″ (6.4mm)
Features:
- Converts raw edge holes into smooth, neat insulating holes
- Locking fingers snap into holes with fingertip pressure
- Withstands a push back force of 35 lb
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

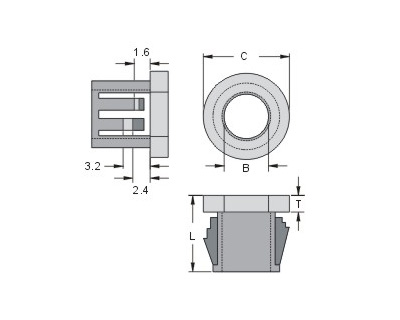

| Item No. | Mounting Hole | B | C | L | T | Packing | |
| mm | inch | ||||||
| SB-7S | 7.1 | 9/32" | 5.8 | 8.8 | 6.1 | 1.3 | 100pcs/Bag |
| SB-8S | 7.9 | 5/16" | 6.8 | 9.8 | 6.0 | 1.5 | |
| SB-12S | 11.9 | 15/32" | 9.2 | 13.7 | 6.3 | 1.5 | |
| SB-22S | 22.2 | 7/8" | 19.6 | 24.0 | 6.5 | 1.5 | |
| SB-8A | 7.9 | 5/16" | 5.1 | 10.5 | 8.0 | 1.6 | |
| SB-8 | 7.9 | 5/16" | 5.8 | 10.5 | 8.0 | 1.6 | |
| SBP-8 | 7.4 | 5.9 | 10.8 | 15.0 | 2.0 | ||
| SB-10 | 9.5 | 3/8" | 6.4 | 12.0 | 10.3 | 1.6 | |
| SB-10M | 9.5 | 3/8" | 7.8 | 13.0 | 10.5 | 1.6 | |
| SB-13 | 12.7 | 1/2" | 8.0 | 15.0 | 10.3 | 1.6 | |
| SB-14 | 14.3 | 9/16" | 11.4 | 17.0 | 10.3 | 1.5 | |
| SB-16 | 15.9 | 5/8" | 12.7 | 18.6 | 10.3 | 1.6 | |
| SB-19 | 19.1 | 3/4" | 14.3 | 21.7 | 10.3 | 1.6 | |
| SB-19M | 19.1 | 3/4" | 15.8 | 21.7 | 10.3 | 1.6 | |
| SB-20 | 20.0 | 15.9 | 22.4 | 10.0 | 1.4 | ||
| SB-22 | 22.2 | 7/8" | 17.5 | 24.2 | 11.5 | 1.6 | |
| SB-22M | 22.2 | 7/8" | 18.9 | 24.2 | 11.5 | 1.6 | |
| SB-25 | 25.4 | 1" | 19.5 | 28.5 | 11.7 | 1.8 | |
| SB-26 | 25.4 | 19.1 | 28.5 | 11.5 | 1.6 | ||
| SB-30 | 30.1 | 1 3/16" | 24.1 | 33.3 | 11.5 | 1.6 | |
| SB-32 | 32.0 | 23.8 | 34.6 | 11.4 | 1.5 | ||
| SB-38 | 38.1 | 1 1/2" | 29.0 | 42.1 | 11.4 | 1.5 | |
| SB-45 | 44.5 | 1 3/4" | 35.4 | 47.8 | 11.6 | 1.5 | |
| SB-50 | 50.8 | 2" | 41.6 | 54.6 | 11.8 | 1.6 | |
