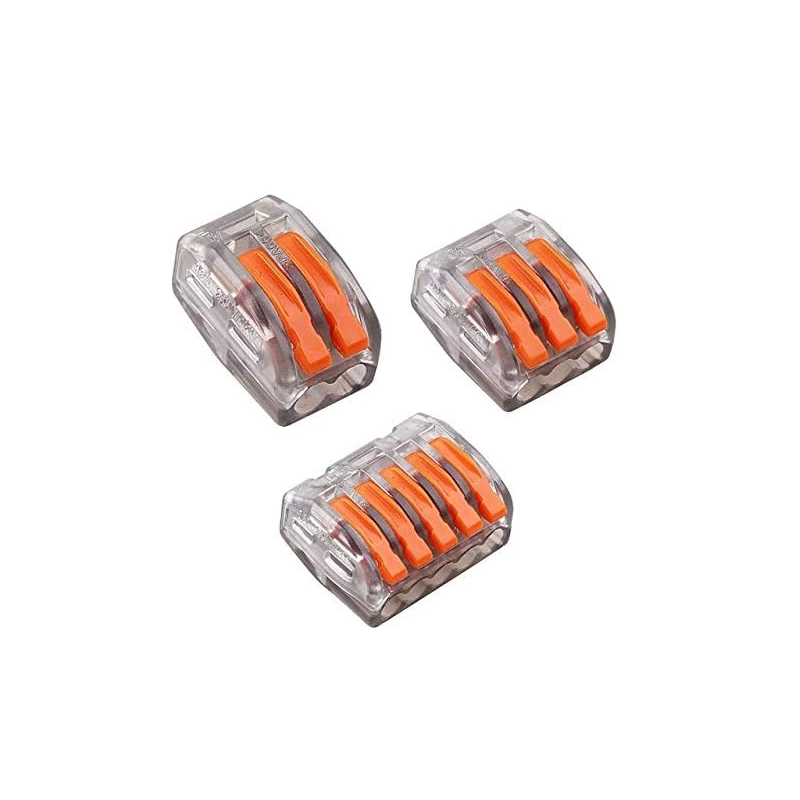

Splicing Wire Connectors

Splicing Wire Connectors are similar as WAGO 222 Series ， But It is Transparent Housing . They are designed for all wire types: solid, stranded, and flexible copper wires With operating levers From 0.5-4mm2. It come with Grey Color body and Different Color of Levers

Splicing Wire Connectors Housing are Made of High Quality PC Insulating Material, with Long Service Life, Corrosion Resistance, High Temperature Resistance and aging resistance. Withstand Voltage 4KV and Resist Electric Shock. The Internal Shrapnel is Made of Copper Material, which has Better Conductivity.

Splicing Wire Connectors Are Better Than Traditional Electrical Tape and can Circuit Simplify Design. There is a Test Hole on the Back to Check Whether the Wire is Energized. Stainless Steel Spring Clamp Design Ensures a Firm Connection and Does not Fall Off Easily.

Here is the FAQ to help you learn more about These Connectors :

1 Question : What is the Material of Compact Splicing Connector s?

Answer : The Material of Body be PC

The Material of Spring be Stainless Steel

The Material of Contact be Copper

2 Question : How many Types Does It have ?

Answer : There are Total 5 Types Which be 2 , 3, 4, 5 and 8 Conductors

Compared to Original WAGO 222 Series , 4 and 8 Way be Special

3 Question : What is the Application Wire Range ?

Answer : Whether Solid or Stranded , 0.5-4mm2 be available

4 Question : How to use the Compact Splicing Connectors ?

Answer : Please follow the steps :

1 : Strip Wire Length about 12-13mm

2 : Open the Lever to 90 Degree

3 : Insert Wire Into Hole , Then Put Down Lever , Then Done

Here is the Operation Video For Your Reference :

4 Question : Do you have Parts Which can help These Connectors Fixed ?

Answer : Yes , You can buy Plastic Fixing Part to Fix Connectors by Screw

Please Visit : Mounting Clips

tag： Splicing Wire Connectors

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No	Wire Range	Specification		Poles	Dimension	Color of Lever
Item No	Wire Range	Voltage	Current	Poles	Dimension	Color of Lever
PCT-212T	0.5-4mm2	450V	32A	2	21.2 x 12.5 x 14.5	Orange / Brown / Red / Blue / Yellow
PCT-213T	0.5-4mm2	450V	32A	3	21.2 x 17.1 x 14.5	Orange / Brown / Red / Blue / Yellow
PCT-214T	0.5-4mm2	450V	32A	4	21.2 x 21.7 x 14.5	Orange / Brown / Red / Blue / Yellow
PCT-215T	0.5-4mm2	450V	32A	5	21.2 x 26.4 x 14.5	Orange / Brown / Red / Blue / Yellow
PCT-218T	0.5-4mm2	450V	32A	8	21.2 x 40.5 x 14.5	Orange / Brown / Red / Blue / Yellow
