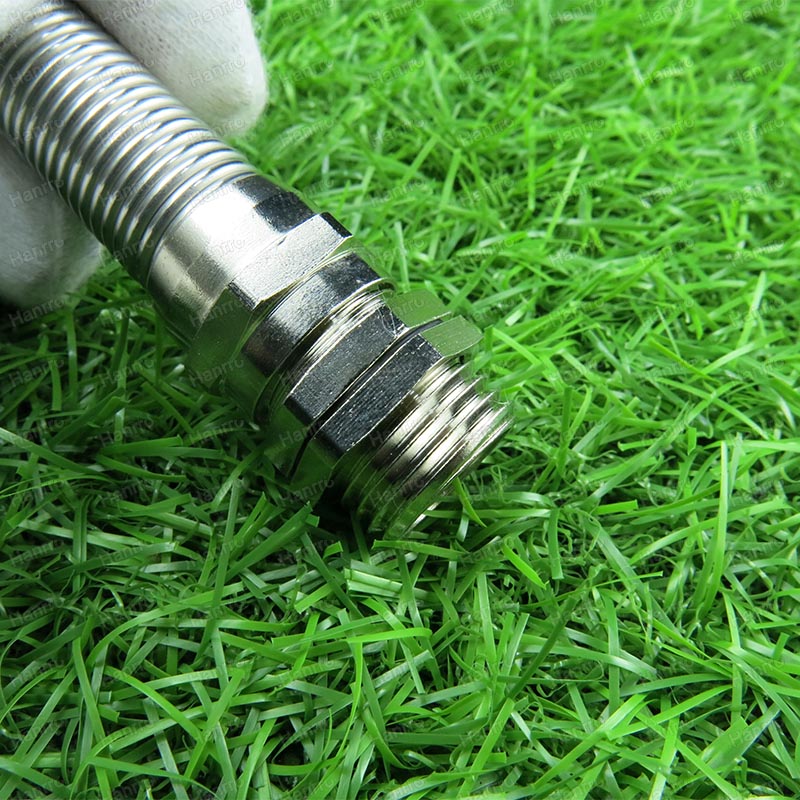

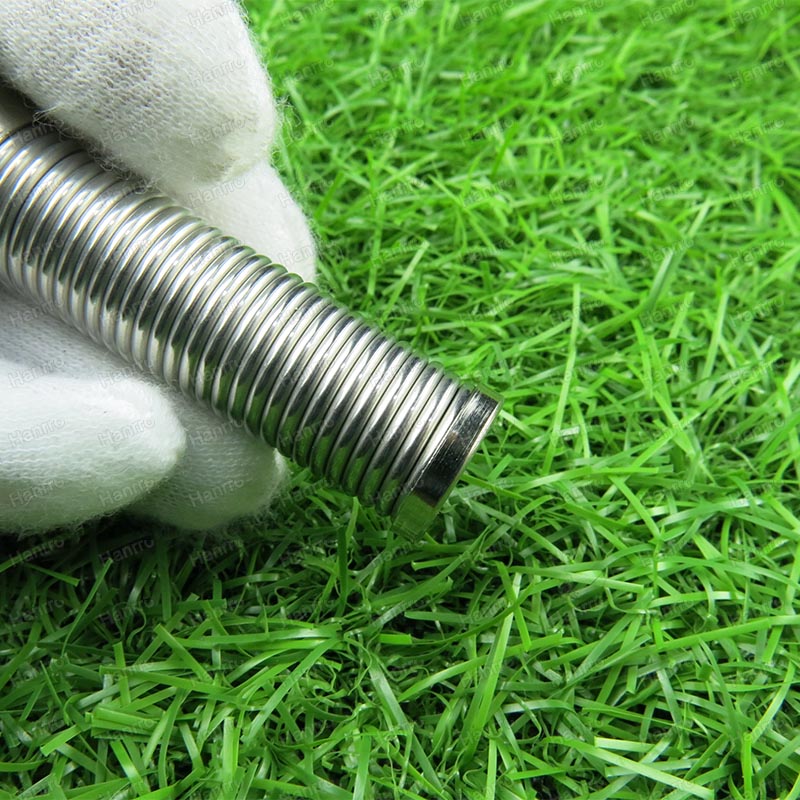

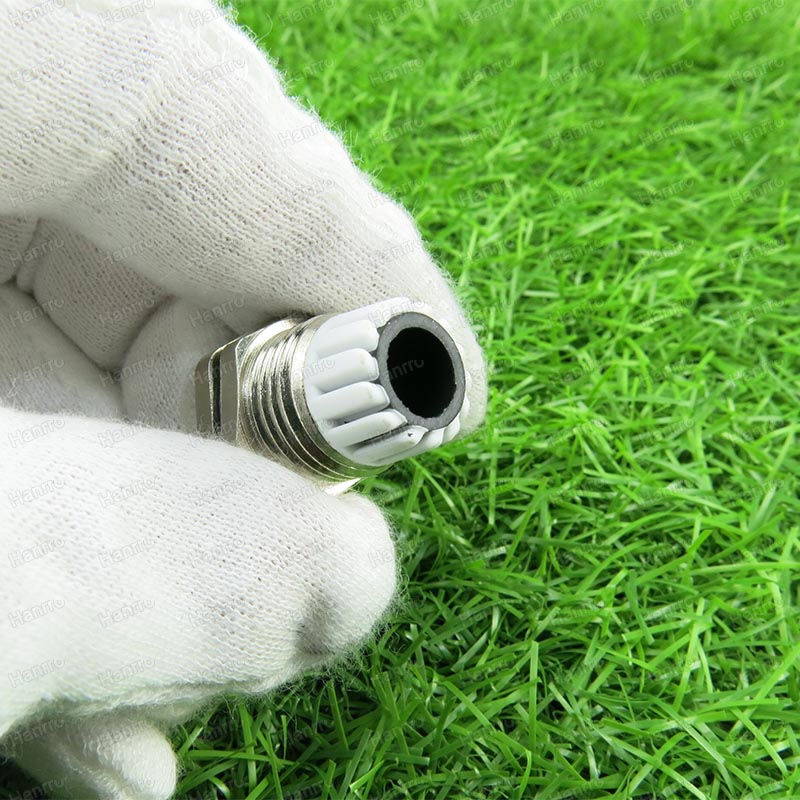

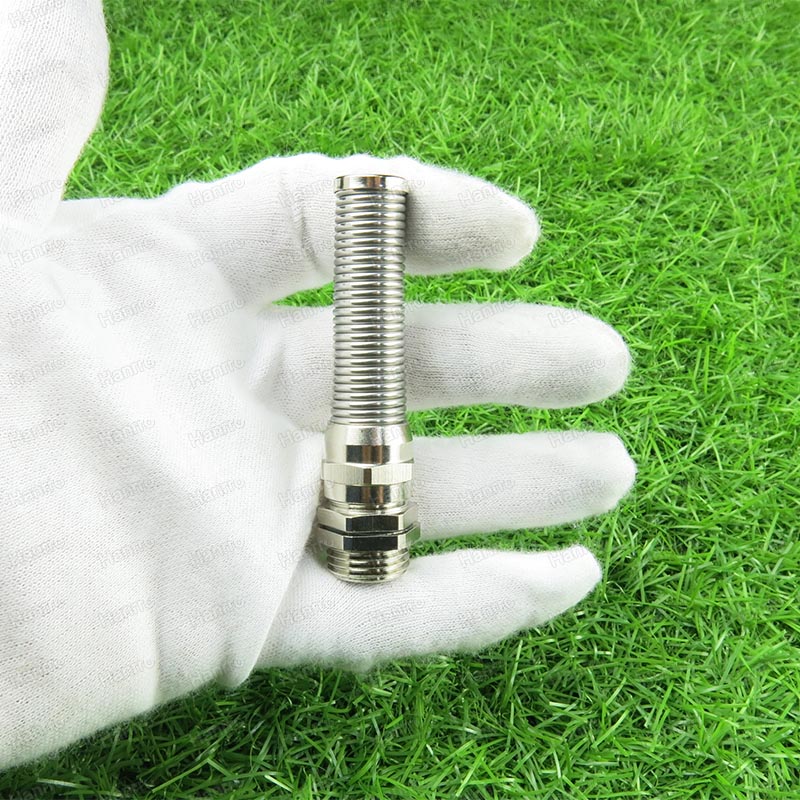

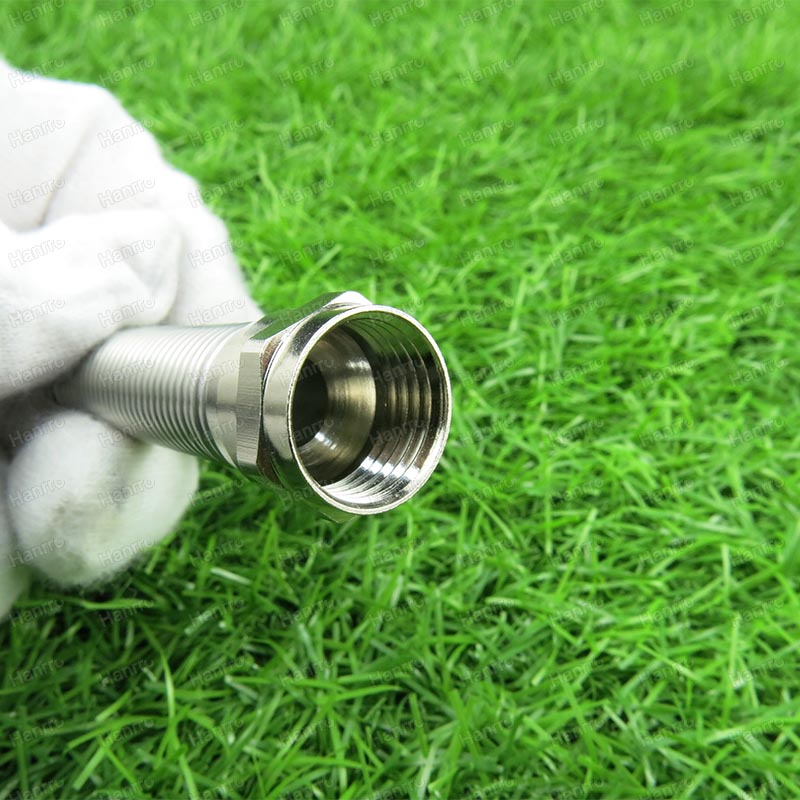

Strain Relief Cable Glands With Long Thread Length also known as Spiral Brass Cable Glands or Flex-protect cable glands offer added protection to the cable at its point of entry. The spiral head distributes strain over a larger area, It avoiding damage that can result through repeated bending of the cord. These glands are made of brass and have an internal compression claw ring, which assures a liquid-tight and tug-proof grip on the cable.
Product Name : Strain Relief Cable Glands With Long Thread Length
Material of Body : Brass
Treatment of Surface : Nickle Plated
Material of Sealing : O-Ring
Color : Natural
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Strain Relief Cable Glands For PG Thread with Long Thread Length | ||||||

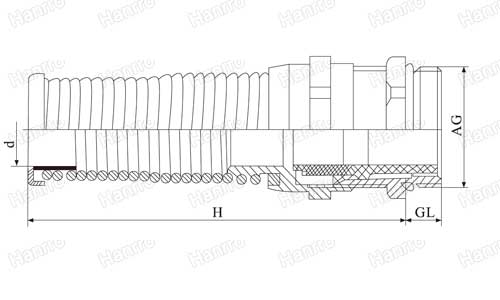

| Item No. | Cable Range(mm) | GL(mm) | H(mm) | d(mm) | Spanner Size(mm) | AG(mm) |
| LBS-PG7 | 3-6.5 | 10 | 55 | 6.8 | 14 | 12.5 |
| LBS-PG7 | 2-5 | 10 | 55 | 6.8 | 14 | 12.5 |
| LBS-PG9 | 4-8 | 10 | 66 | 8.2 | 17 | 15.2 |
| LBS-PG9 | 2-6 | 10 | 66 | 8.2 | 17 | 15.2 |
| LBS-PG11 | 5-10 | 10 | 77 | 10.3 | 20 | 18.6 |
| LBS-PG11 | 3-7 | 10 | 77 | 10.3 | 20 | 18.6 |
| LBS-PG13.5 | 6-12 | 10 | 88 | 12.3 | 22 | 20.4 |
| LBS-PG13.5 | 5-9 | 10 | 88 | 12.3 | 22 | 20.4 |
| LBS-PG16 | 10-14 | 10 | 98 | 14.3 | 24 | 22.5 |
| LBS-PG16 | 7-12 | 10 | 98 | 14.3 | 24 | 22.5 |
| LBS-PG21 | 13-18 | 12 | 111 | 18.4 | 30 | 28.3 |
| LBS-PG21 | 9-16 | 12 | 111 | 18.4 | 30 | 28.3 |
| Strain Relief Cable Glands For Metric Thread With Long Thread Length | ||||||
| Item No. | Cable Range(mm) | GL(mm) | H(mm) | d(mm) | Spanner Size(mm) | AG(mm) |
| LBS-M12 x 1.5 | 3-6.5 | 10 | 55 | 6.8 | 14 | 12 |
| LBS-M12 x 1.5 | 2-5 | 10 | 55 | 6.8 | 14 | 12 |
| LBS-M16 x 1.5 | 4-8 | 10 | 66 | 8.2 | 17 | 16 |
| LBS-M16 x 1.5 | 2-6 | 10 | 66 | 8.2 | 17 | 16 |
| LBS-M16 x 1.5 | 5-10 | 10 | 77 | 10.3 | 20 | 16 |
| LBS-M16 x 1.5 | 3-7 | 10 | 77 | 10.3 | 20 | 16 |
| LBS-M18 x 1.5 | 5-10 | 10 | 77 | 10.3 | 20 | 18 |
| LBS-M18 x 1.5 | 3-7 | 10 | 77 | 10.3 | 20 | 18 |
| LBS-M20 x 1.5 | 6-12 | 10 | 88 | 12.3 | 22 | 20 |
| LBS-M20 x 1.5 | 5-9 | 10 | 88 | 12.3 | 22 | 20 |
| LBS-M20 x 1.5 | 10-14 | 10 | 98 | 14.3 | 24 | 20 |
| LBS-M20 x 1.5 | 7-12 | 10 | 98 | 14.3 | 24 | 20 |
| LBS-M22 x 1.5 | 10-14 | 10 | 98 | 14.3 | 24 | 22 |
| LBS-M22 x 1.5 | 7-12 | 10 | 98 | 14.3 | 24 | 22 |
| LBS-M25 x 1.5 | 13-18 | 12 | 111 | 18.4 | 30 | 25 |
| LBS-M25 x 1.5 | 9-16 | 12 | 111 | 18.4 | 30 | 25 |
