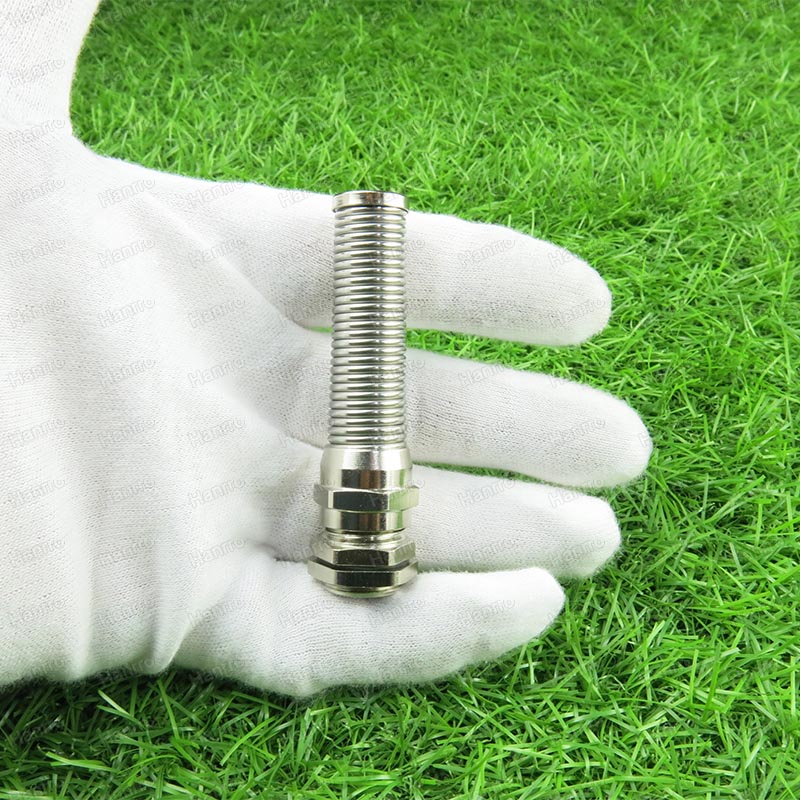

Strain Relief Cable Glands

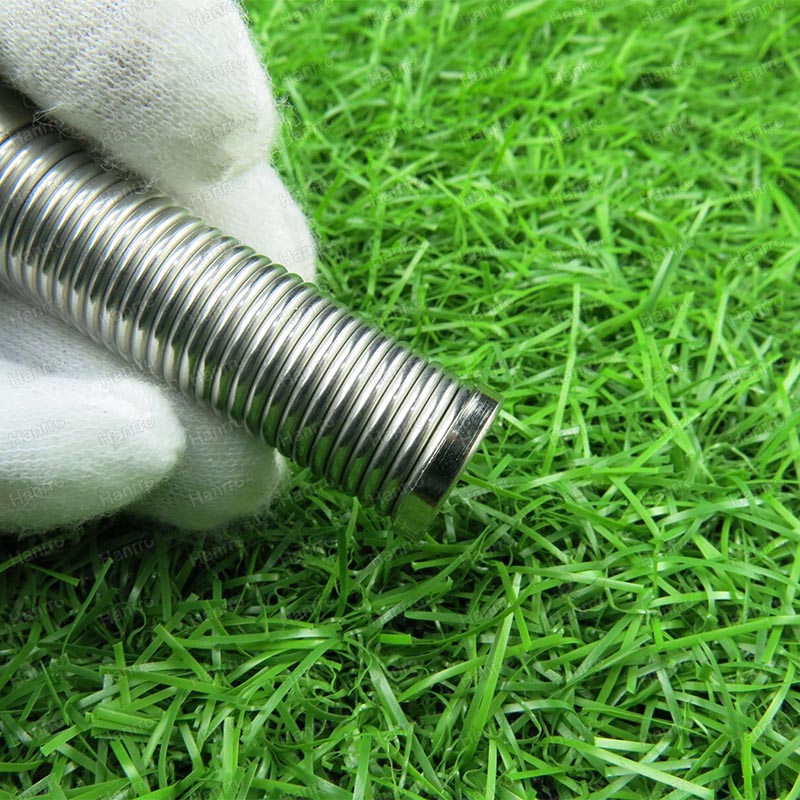

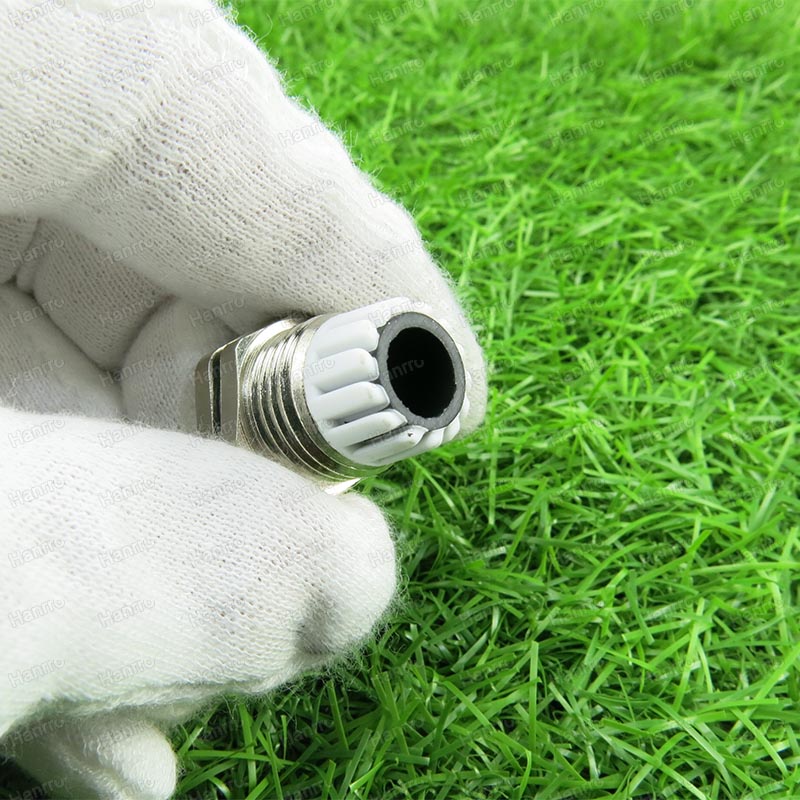

Strain Relief Cable Glands also known as Spiral Brass Cable Glands or Flex-protect cable glands offer added protection to the cable at its point of entry. The spiral head distributes strain over a larger area, It avoiding damage that can result through repeated bending of the cord. These glands are made of brass and have an internal compression claw ring, which assures a liquid-tight and tug-proof grip on the cable.

Product Name : Strain Relief Cable Glands

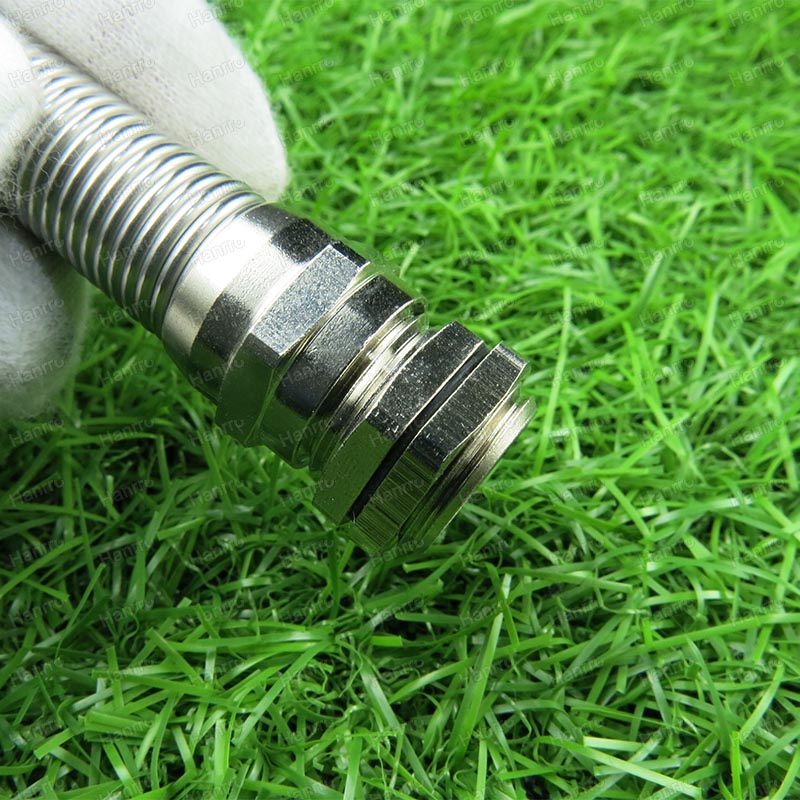

Material of Body :  Brass

Treatment of Surface : Nickle Plated

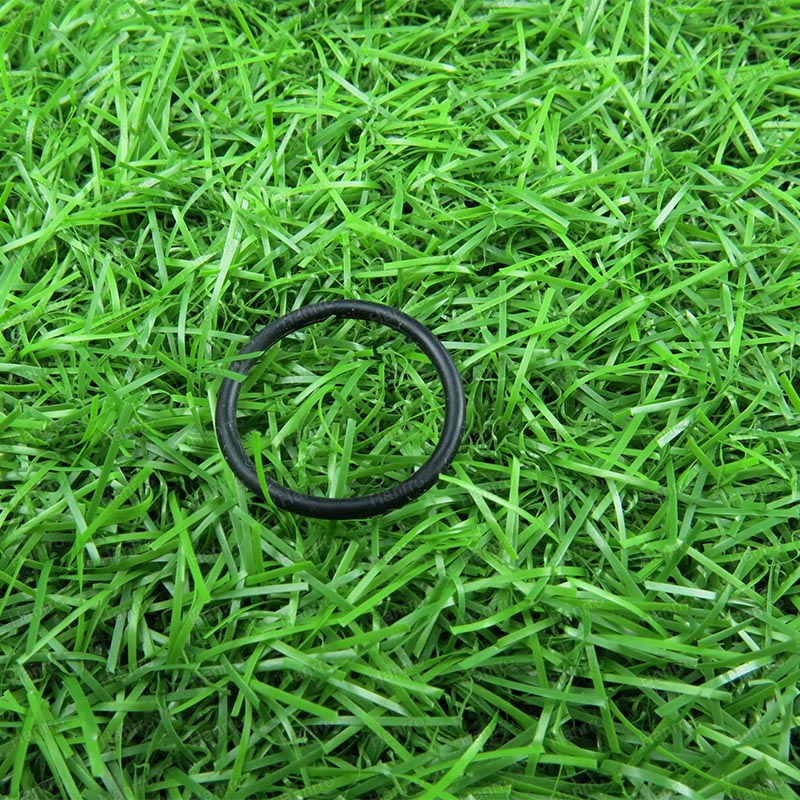

Material of Sealing : O-Ring

Color : Natural

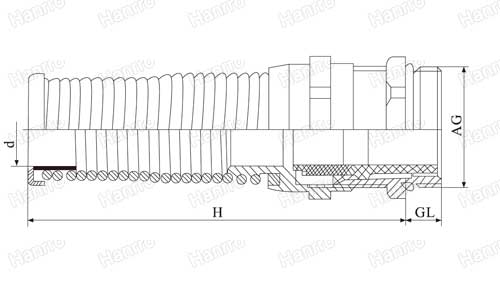

Strain Relief Cable Glands-Drawing

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Strain Relief Cable Glands For PG Thread
Item No. Cable Range(mm) GL(mm) H(mm) d(mm)  Spanner Size(mm) AG(mm)
BS-PG7 3-6.5 5 55 6.8 14 12.5
BS-PG7 2-5 5 55 6.8 14 12.5
BS-PG9 4-8 6 66 8.2 17 15.2
BS-PG9 2-6 6 66 8.2 17 15.2
BS-PG11 5-10 6 77 10.3 20 18.6
BS-PG11 3-7 6 77 10.3 20 18.6
BS-PG13.5 6-12 6.5 88 12.3 22 20.4
BS-PG13.5 5-9 6.5 88 12.3 22 20.4
BS-PG16 10-14 6.5 98 14.3 24 22.5
BS-PG16 7-12 6.5 98 14.3 24 22.5
BS-PG21 13-18 7 111 18.4 30 28.3
BS-PG21 9-16 7 111 18.4 30 28.3
Strain Relief Cable Glands For Metric Thread
Item No. Cable Range(mm) GL(mm) H(mm) d(mm)  Spanner Size(mm) AG(mm)
BS-M12 x 1.5 3-6.5 5 55 6.8 14 12
BS-M12 x 1.5 2-5 5 55 6.8 14 12
BS-M16 x 1.5 4-8 6 66 8.2 17 16
BS-M16 x 1.5 2-6 6 66 8.2 17 16
BS-M16 x 1.5 5-10 6 77 10.3 20 16
BS-M16 x 1.5 3-7 6 77 10.3 20 16
BS-M18 x 1.5 5-10 6 77 10.3 20 18
BS-M18 x 1.5 3-7 6 77 10.3 20 18
BS-M20 x 1.5 6-12 6.5 88 12.3 22 20
BS-M20 x 1.5 5-9 6.5 88 12.3 22 20
BS-M20 x 1.5 10-14 6.5 98 14.3 24 20
BS-M20 x 1.5 7-12 6.5 98 14.3 24 20
BS-M22 x 1.5 10-14 6.5 98 14.3 24 22
BS-M22 x 1.5 7-12 6.5 98 14.3 24 22
BS-M25 x 1.5 13-18 7 111 18.4 30 25
BS-M25 x 1.5 9-16 7 111 18.4 30 25
Strain Relief Cable Glands For NPT Thread
Item No. Cable Range(mm) GL(mm) H(mm) d(mm)  Spanner Size(mm) AG(mm)
BS-NPT3/8" 4-8 15 66 8.2 17/19 17
BS-NPT3/8" 2-6 15 66 8.2 17/19 17
BS-NPT1/2" 6-12 13 88 12.3 22/24 21.2
BS-NPT1/2" 5-9 13 88 12.3 22/24 21.2
BS-NPT3/4" 13-18 15 111 18.4 30/33 26.2
BS-NPT3/4" 9-16 15 111 18.4 30/33 26.2
Strain Relief Cable Glands For G Thread
Item No. Cable Range(mm) GL(mm) H(mm) d(mm)  Spanner Size(mm) AG(mm)
BS-G1/4" 3-6.5 8 19 6.8 14/17 13.1
BS-G1/4" 2-5 8 19 6.8 14/17 13.1
BS-G3/8" 4-8 15 20 8.2 17/20 16.6
BS-G3/8" 2-6 15 20 8.2 17/20 16.6
BS-G1/2" 6-12 13 22 12.3 22/24 20.9
BS-G1/2" 5-9 13 22 12.3 22/24 20.9
BS-G3/4" 13-18 15 25 18.4 30 26.4
BS-G3/4" 9-16 15 25 18.4 30 26.4
