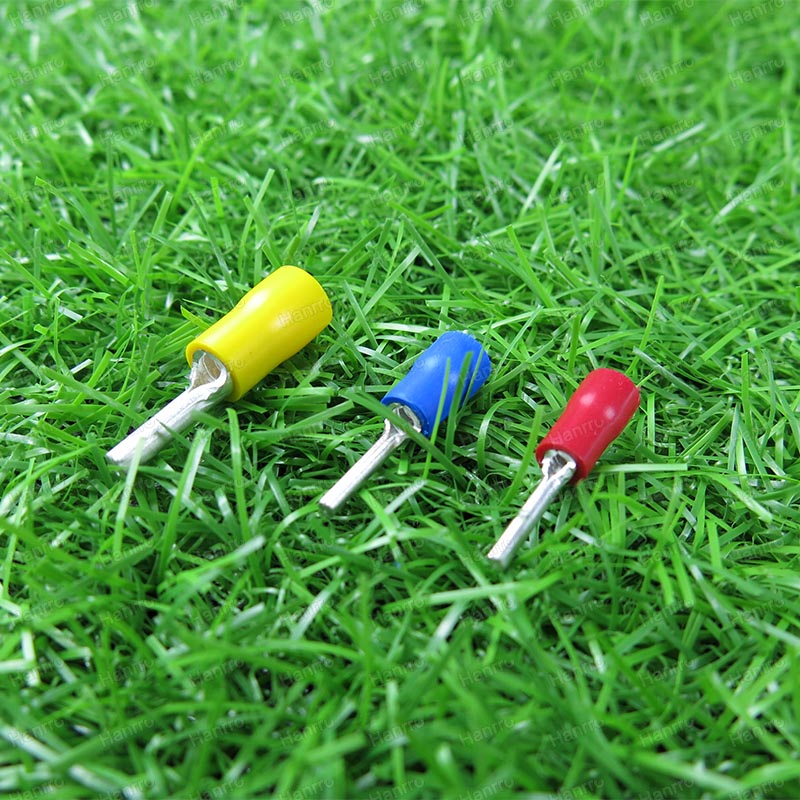

Product Name : Vinyl Insulated Pin Terminals-Double Crimp
Material of Body : Copper , Tin Plated
Material of Sleeve : Copper , Tin Plated
Material of Insulation : Vinyl
Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

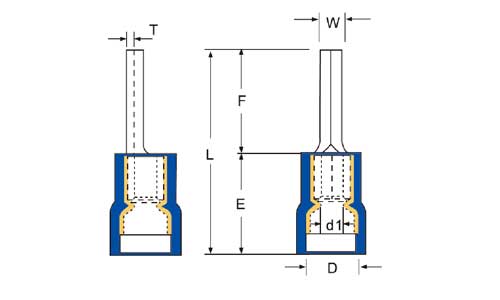

| Item No | Wire Size(mm2) | AWG | W | F | L | E | D | d1 | T | Color | |||
| PTVD 1.25-10 | 0.5-1.5 | 22-16 | 1.9 | 10.0 | 21.2 | 11.2 | 4.4 | 1.7 | 0.75 | ||||
| PTVD 1.25-12 | 1.9 | 12.0 | 23.2 | ||||||||||
| PTVD 1.25-13 | 1.9 | 13.0 | 24.2 | ||||||||||
| PTVD 1.25-18 | 1.9 | 18.0 | 29.2 | ||||||||||
| PTVD 2-10 | 1.5-2.5 | 16-14 | 1.9 | 10.0 | 21.2 | 11.2 | 5.4 | 2.3 | 0.8 | ||||
| PTVD 2-12 | 1.9 | 12.0 | 23.2 | ||||||||||
| PTVD 2-13 | 1.9 | 13.0 | 24.2 | ||||||||||
| PTVD 2-18 | 1.9 | 18.0 | 29.2 | ||||||||||
| PTVD 5.5-13 | 4.0-6.0 | 12-10 | 2.8 | 13.0 | 27.5 | 14.5 | 6.9 | 3.4 | 1.0 | ||||
