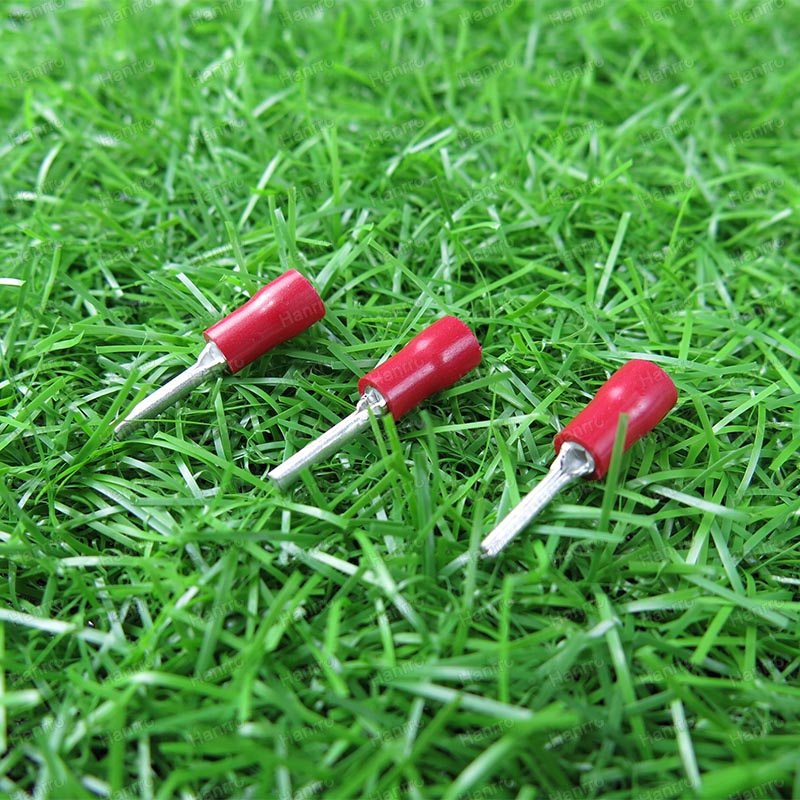

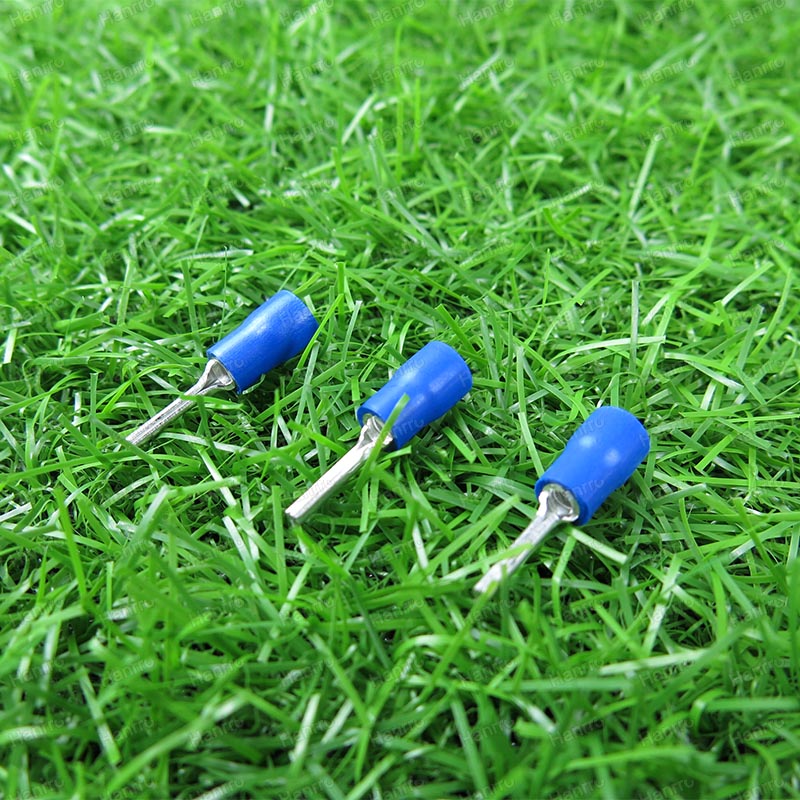

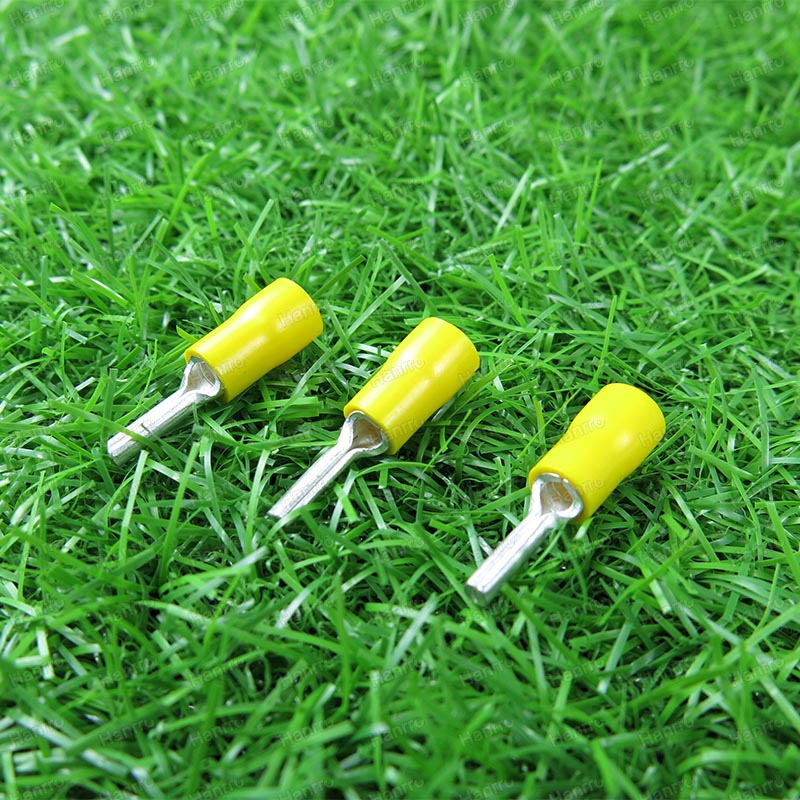

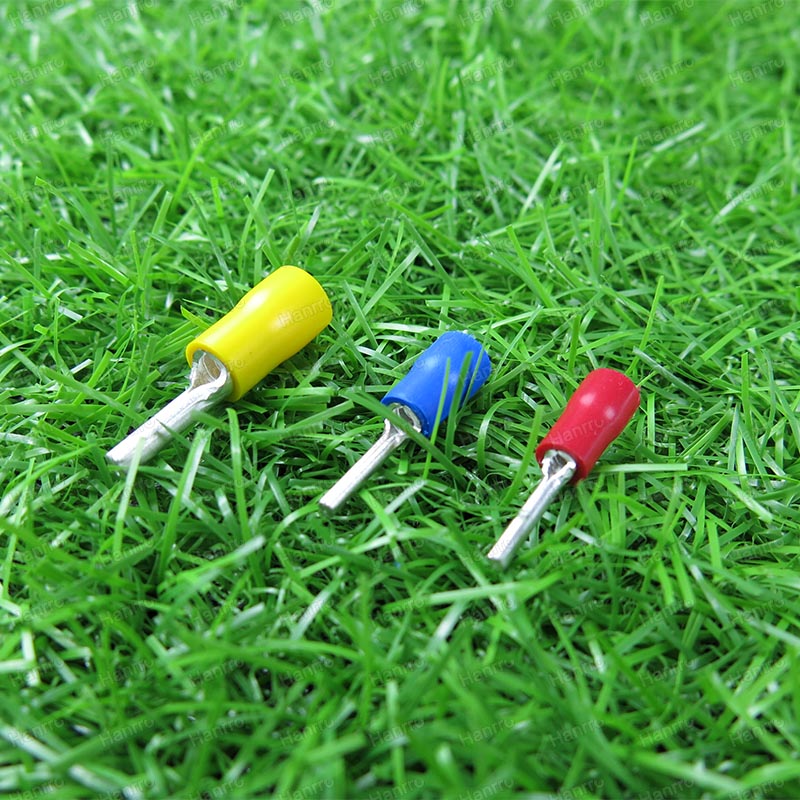

Vinyl Insulated Pin Terminals

Product Name : Vinyl Insulated Pin Terminals-Single Crimp

Material of Body : Copper , Tin Plated

Material of Insulation : Vinyl

Color of Insulation : Red , Blue , Yellow

Testing Report : ROHS

Certification : CE

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

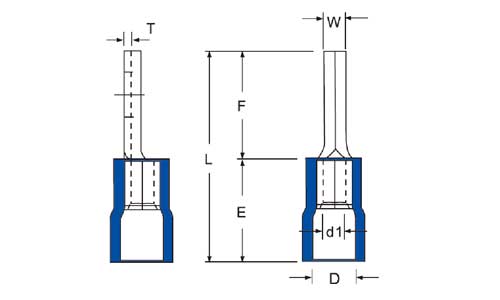

Pin Terminals-Drawing

Item No  Wire Size(mm2) AWG W F L E D d1 T Color
PTV 1.25-10 0.5-1.5 22-16 1.9 10.0 20.7 10.7 4.2 1.7 0.75
PTV 1.25-12 1.9 12.0 22.7
PTV 1.25-13 1.9 13.0 23.7
PTV 1.25-18 1.9 18.0 28.7
PTV 2-10 1.5-2.5 16-14 1.9 10.0 20.7 10.7 4.9 2.3 0.8
PTV 2-12 1.9 12.0 22.7
PTV 2-13 1.9 13.0 23.7
PTV 2-18 1.9 18.0 28.7
PTV 3.5-10 2.5-4.0 14-12 2.8 10.0 23.8 13.8 5.8 3.0 1.0
PTV 3.5-13 2.8 13.0 26.8
PTV 5.5-13 4.0-6.0 12-10 2.8 13.0 27.0 14.0 6.5 3.4 1.0
