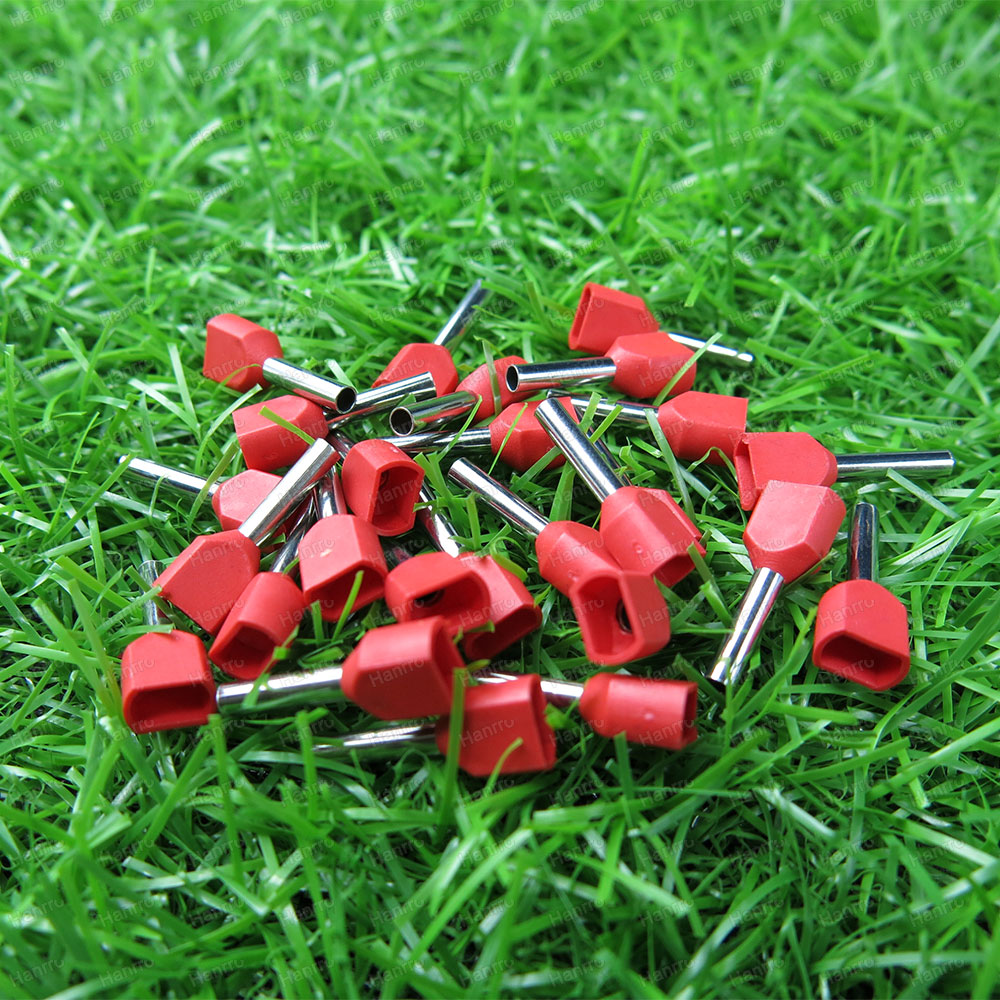

Twin Wire Ferrules have larger diameters and special shaped sleeves that accept two conductors of the same or different size. They provide an efficient connection of multiple wires in the same terminals clamp or simplify wire jumpering between terminals clamps. They are color coded with the same convention as the insulated DIN Standard ferrules
To ensure efficient ferrule crimping always select the smallest ferrules diamater that fits the wire and use only professional crimping tools.
Twin Wire Ferrules can also ensure that you get 100% conductivity when inserting your terminated wire into the connection you are working with. For example- a terminal block or trailer receptacle and plug with pressure plated setscrews.
For Non Insulated , Please visit : Non Insulated Wire Ferrules
For Vinyl Insulated , Please visit : Vinyl Insulated Wire Ferrules
For Nylon Cord , Please visit : Insulated Cord End Terminals
For Nylon Twin Entry , Please visit : Dual Entry Cord End Terminals
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

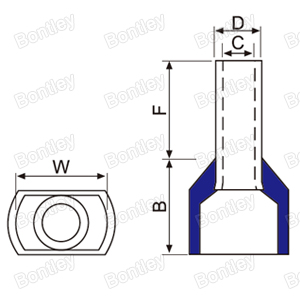

| Item No | Wire Size(mm2) | AWG | W | F | B | D | C | French | Germany | DIN | |||
| TE0508 | 2 x 0.5 | 2 x 22 | 5.0 | 8.0 | 6.5 | 1.8 | 1.5 | White | Orange | White | |||
| TE0510 | 10.0 | ||||||||||||
| TE7508 | 2 x 0.75 | 2 x 20 | 5.5 | 8.0 | 6.7 | 2.1 | 1.8 | Blue | White | Grey | |||
| TE7510 | 10.0 | ||||||||||||
| TE1008 | 2 x 1.0 | 2 x 18 | 5.5 | 8.0 | 7.1 | 2.3 | 2.0 | Red | Yellow | Red | |||
| TE1010 | 10.0 | ||||||||||||
| TE1508 | 2 x 1.5 | 2 x 16 | 6.4 | 8.0 | 7.5 | 2.6 | 2.3 | Black | Red | Black | |||
| TE1510 | 10.0 | ||||||||||||
| TE1512 | 12.0 | ||||||||||||
| TE2508 | 2 x 2.5 | 2 x 14 | 8.0 | 8.0 | 8.5 | 3.3 | 2.9 | Grey | Blue | Blue | |||
| TE2510 | 10.0 | ||||||||||||
| TE2513 | 13.0 | ||||||||||||
| TE4012 | 2 x 4 | 2 x 12 | 8.8 | 12.0 | 11.1 | 4.2 | 3.8 | Orange | Grey | Grey | |||
| TE6014 | 2 x 6 | 2 x 10 | 9.5 | 14.0 | 12.1 | 5.3 | 4.9 | Green | Black | Yellow | |||
| TE10-14 | 2 x 10 | 2 x 8 | 12.6 | 14.0 | 12.6 | 6.9 | 6.5 | Brown | Ivory | Red | |||
| TE16-14 | 2 x 16 | 2 x 6 | 19.0 | 14.0 | 17.3 | 8.7 | 8.3 | Ivory | Green | Blue | |||
