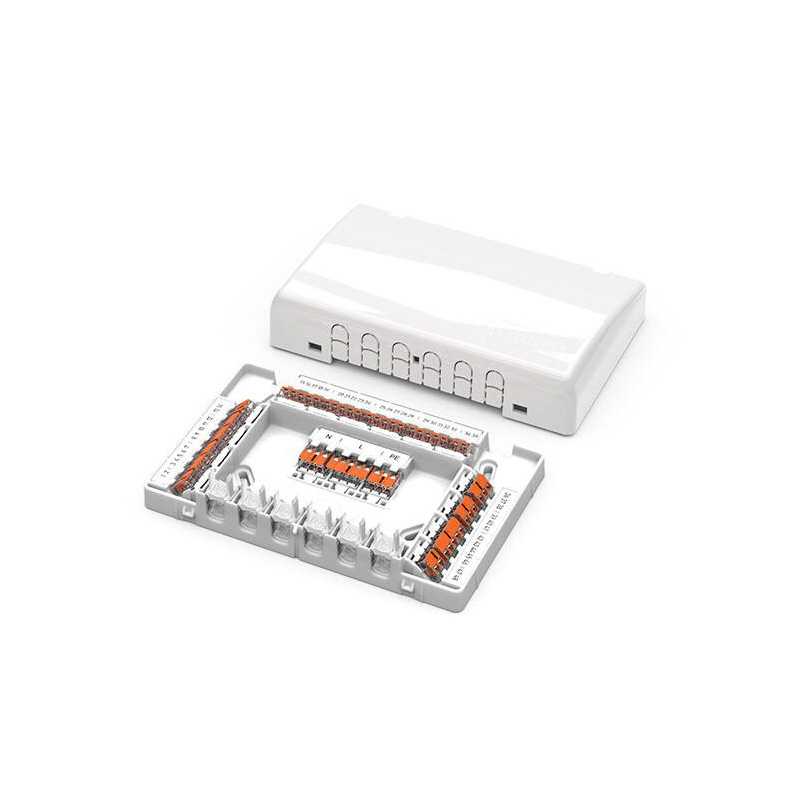

WAGO Junction Box For 221 Series

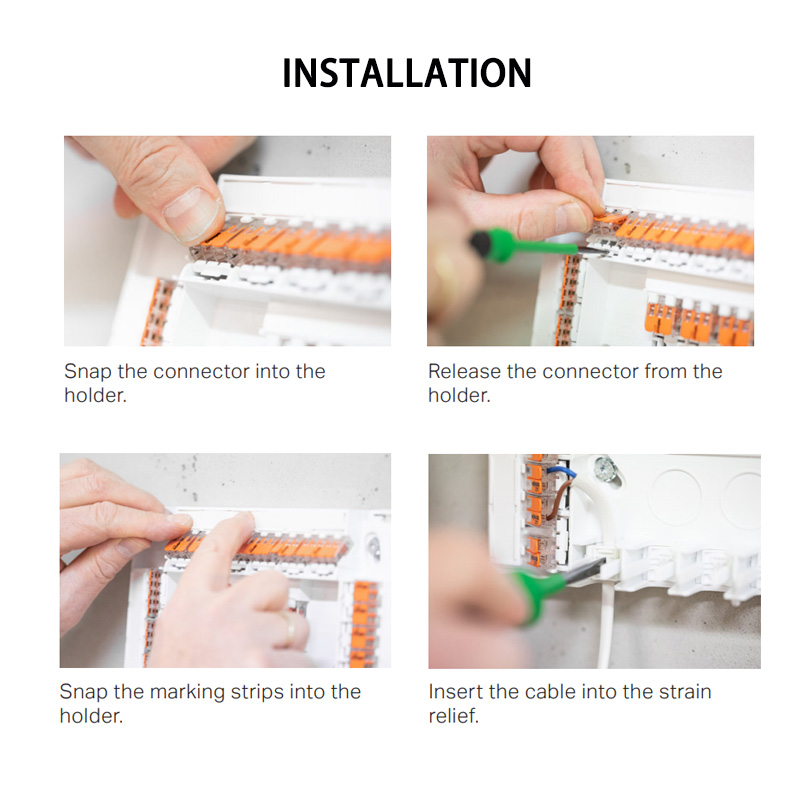

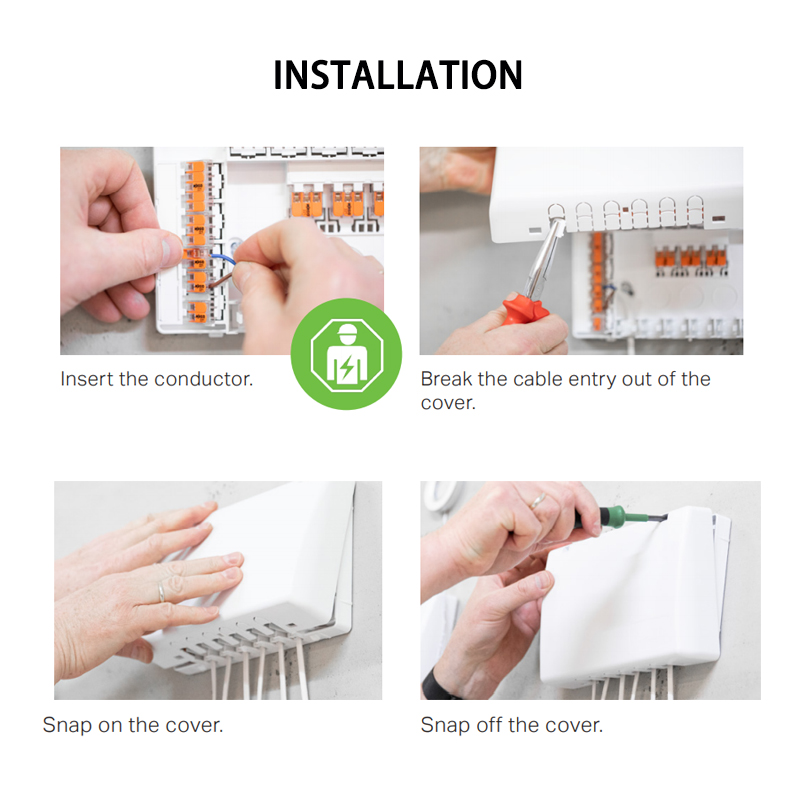

WAGO Junction Box is designed for surface screw mounting on the wall/ceiling. The cover can be snapped on/off without screws. The connectors are easily mounted by snapping them in, and the marking strips are mounted by
simply pushing them in. The snap-in strain reliefs are designed for cable diameters from 4 mm to 11 mm

Benefits :

  • Simple, quick and safe connection of up to 60 conductors
  • A clear, structured arrangement that’s secured on one level
  • Clearly visible labeling of each individual clamping unit

Current supply (max.): 18 A

Operating voltage (max.): 450 V

Surrounding air temperature: −25 … +85 °C

Protection type: IP20

Dimension : 225 x 46 x 145mm

Weight : 422.7 Gram

tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No Suitable Connectors Dimension Weight Color
Width Height From Surface Depth
207-4301 WAGO 221 4mm2 225 46 145 422 White
