Weidmuller Stripping Tool 9005610000

Weidmuller Stripping Tool 9005610000 are designed for  PVC-insulated flexible and solid conductorsfrom 6-16 mm² ( 10-6 AWG ) .

Product Name : Wire Strippers

Item No : Stripax 16

Stripping Range : 6-16mm2 ( AWG 10-6)

Cutting Range : Up to 6mm2

Application Cable : PVC Insulation

Feature :  For flexible and solid conductors

Stripping length adjustable via end stop

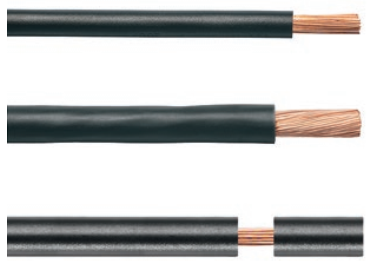

Double-insulated cables in two process steps without special adjustment

Automatic opening of clamping jaws after stripping

tag: , ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No Order No Insulation of Cable Stripping Range (mm2) Cutting Range (mm2) Depth (mm) Height(mm) Width(mm) Weight(gram)
STRIPAX 9005000000 PVC 0.08-10 0.08-6 22 99 190 225
STRIPAX  16 9005610000 PVC 6-16 Up to 6 22 99 190 175
STRIPAX ULTIMATE 1468880000 Halogen-Free Insulation 0.25-6 Up to 6 22 99 190 222
STRIPAX ULTIMATE XL 1512780000 Halogen-Free Insulation 2.5-10 Up to 6 22 99 190 20
video
