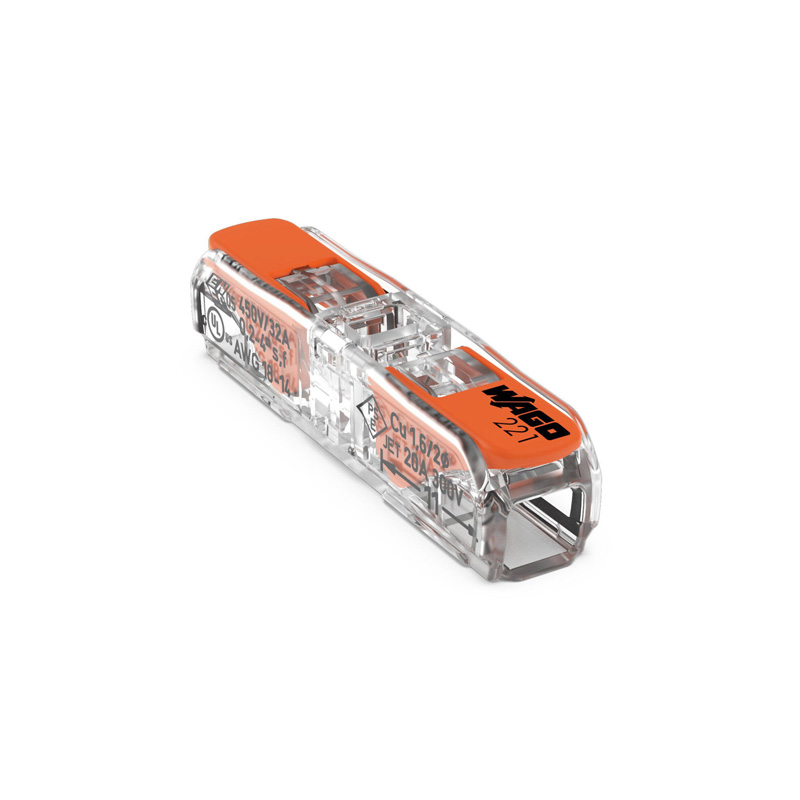

221-2411 Inline Splicing Connector

221-2411 Inline Splicing Connector are specially designed for connection wire easily. It is for all round type wires from 0.2-4mm2. Transparent Housing , Transparent Cover.

Feature :

Smart Design and a Tool-Free Conductor Connection

It combines all the well-known advantages of the WAGO 221 series in a slim design ，Whether Solid Conductors or Stranded Conductors or Fine-Stranded Conductors , All be suitable. The Splicing Connectors is completely tool-free thanks to lever technology .The Material of Housing be PC , Transparent Housing offers a visibly secure conductor contact from the back side.

Operation Instruction

1 Strip 11mm Length as Housing Notification

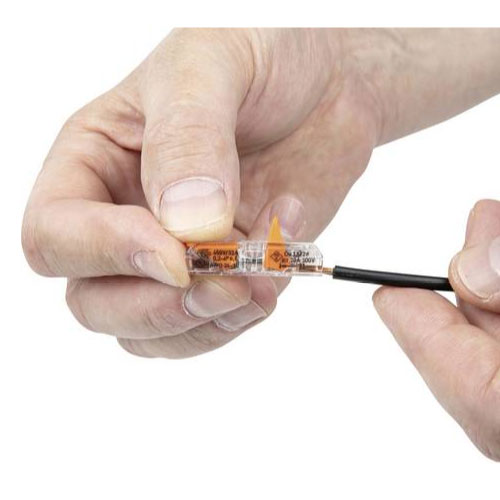

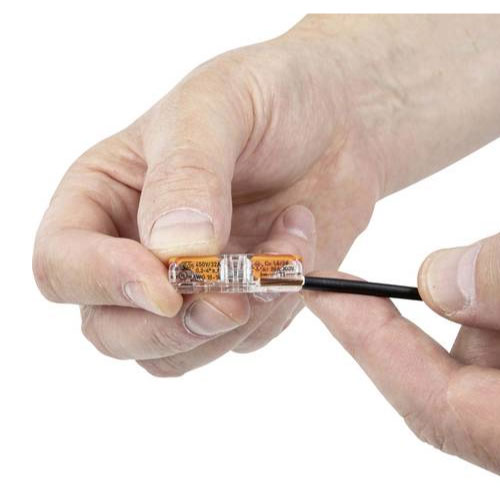

2 Lever Up the Handles , Then Insert Wire

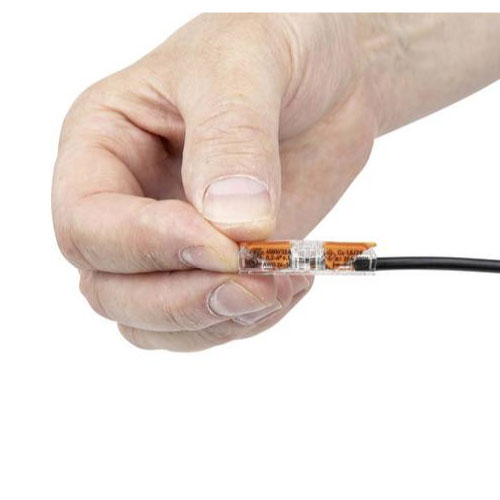

3 Lever Down the Handles , Pull Wire to Make sure Strong

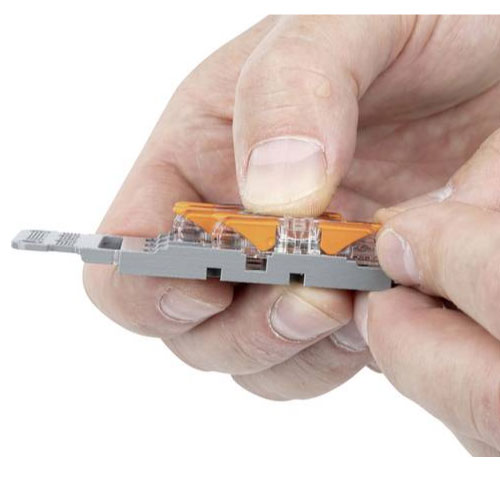

4 If You need to fix , Then use the parts to fix by Screw or DIN Rail

tag： WAGO 224-2411 , 224-2411 Splicing Connectors , 224-2411
