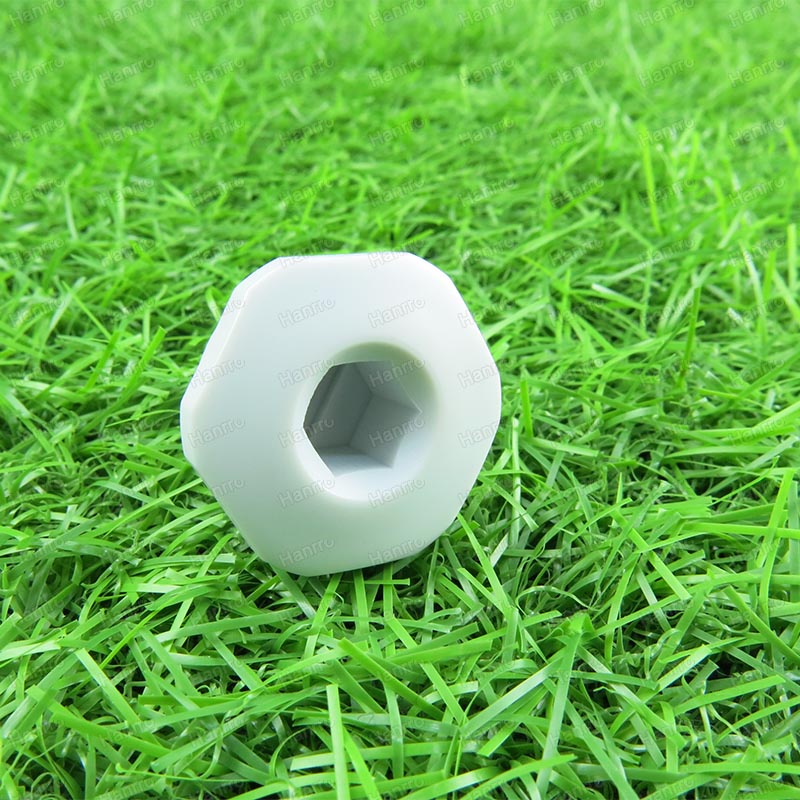

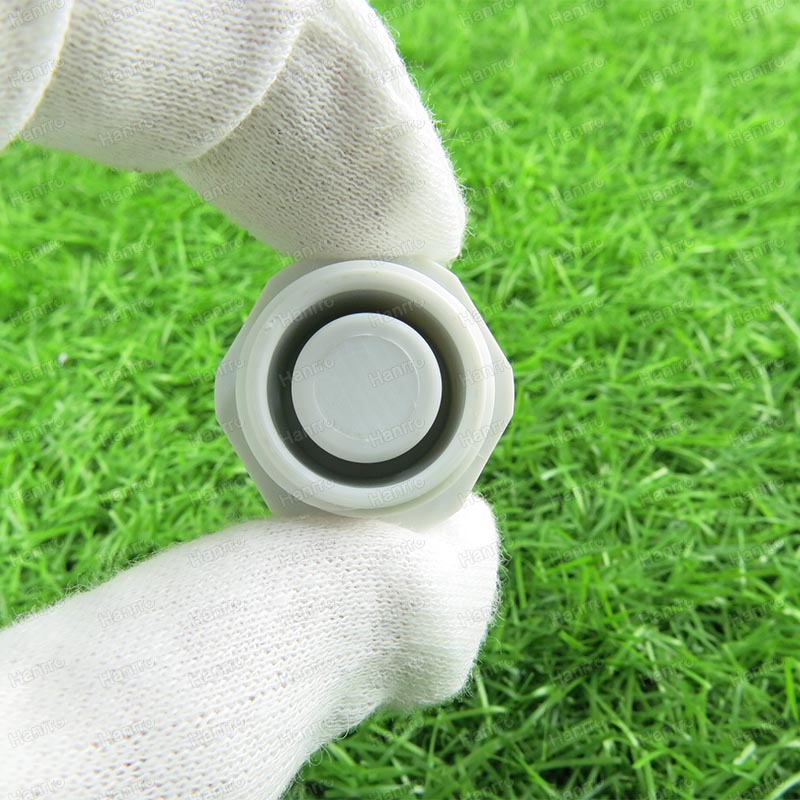

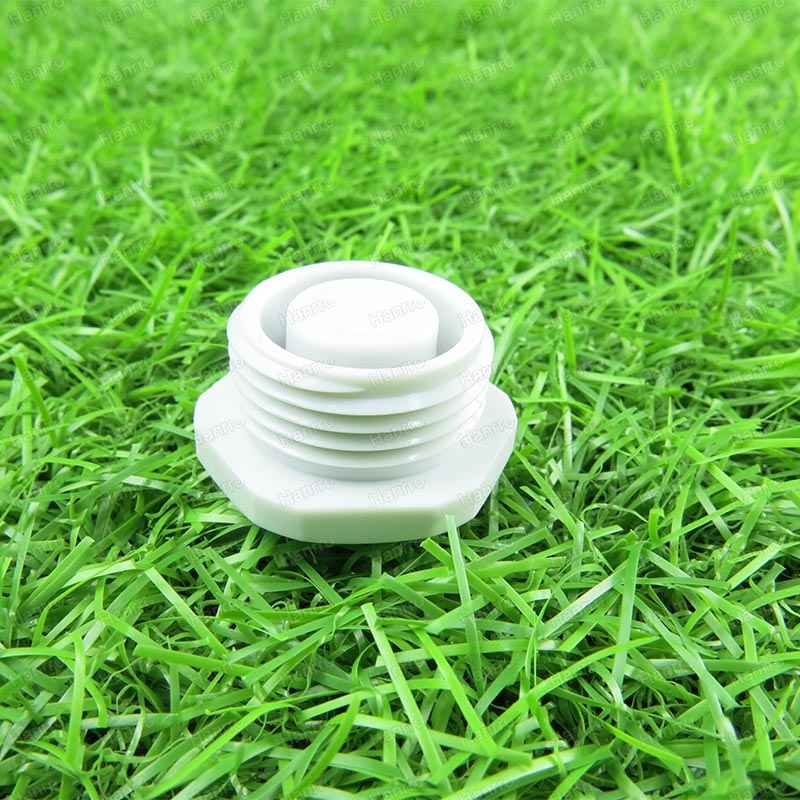

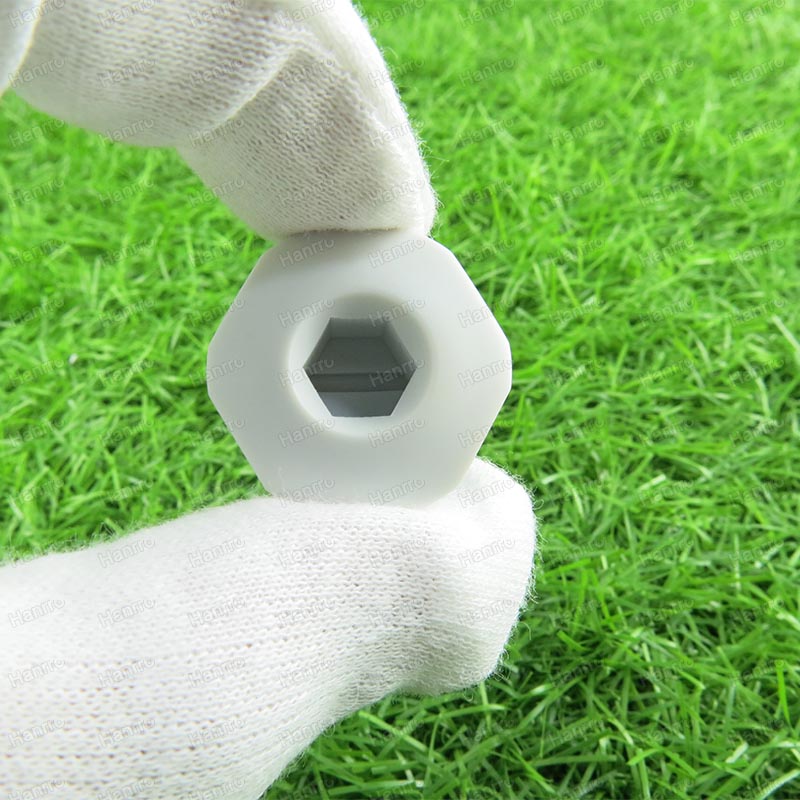

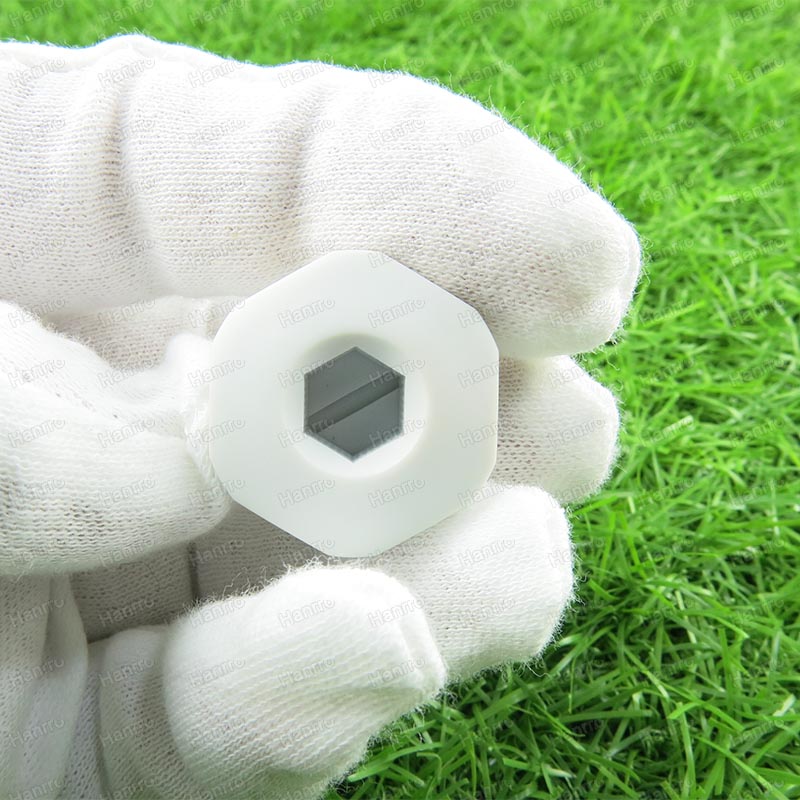

Hexagonal Blanking Plugs are ideal to seal off a hole, when no cable gland is used. They provide a clean finish that can either protect or cover the hole It assemble into cable glands to provide seal (can be fitted at a later date into installed fitting
Product Name : Hexagonal Blanking Plugs
Material : Halogen Free Nylon 6
Color : Grey , Black ,White , Red , Blue Etc
Operating Temperature : From -20℃ to +80℃
Flammability : UL94V-2
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Hexagonal Blanking Plugs for PG Thread | |||||

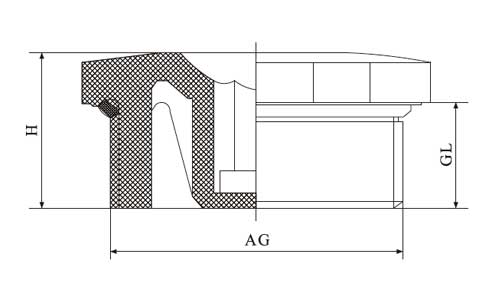

| Item No. | GL(mm) | H(mm) | D(mm) | AG(mm) | Hex Wrench(mm) |
| HNBP-PG7 | 8.5 | 13 | 15 | 12.5 | 6 |
| HNBP-PG9 | 8.5 | 13 | 19 | 15.2 | 8 |
| HNBP-PG11 | 9 | 14.5 | 24 | 18.6 | 8 |
| HNBP-PG13.5 | 9 | 14.5 | 24 | 20.4 | 8 |
| HNBP-PG16 | 12 | 16 | 28 | 22.5 | 8 |
| HNBP-PG21 | 12 | 18 | 36 | 28.3 | 8 |
| HNBP-PG29 | 14 | 18 | 46 | 37 | 8 |
| HNBP-PG36 | 14 | 20 | 55 | 47 | 8 |
| HNBP-PG42 | 14 | 20 | 60 | 54 | 8 |
| HNBP-PG48 | 14 | 21 | 70 | 59.3 | 8 |
| Hexagonal Blanking Plugs for Metric Thread | |||||
| Item No. | GL(mm) | H(mm) | D(mm) | AG(mm) | Hex Wrench(mm) |
| HNBP-M12 x 1.5 | 8.5 | 13 | 15 | 12 | 6 |
| HNBP-M16 x 1.5 | 8.5 | 13 | 19 | 16 | 8 |
| HNBP-M18 x 1.5 | 9 | 14.5 | 24 | 18 | 8 |
| HNBP-M20 x 1.5 | 9 | 14.5 | 24 | 20 | 8 |
| HNBP-M22 x 1.5 | 11 | 16 | 28 | 22 | 8 |
| HNBP-M25 x 1.5 | 12 | 17 | 28 | 25 | 8 |
| HNBP-M32 x 1.5 | 12 | 18 | 36 | 32 | 8 |
| HNBP-M40 x 1.5 | 14 | 18 | 46 | 40 | 8 |
| HNBP-M50 x 1.5 | 14 | 20 | 55 | 50 | 8 |
| HNBP-M63 x 1.5 | 14 | 21 | 70 | 63 | 8 |
| Hexagonal Blanking Plugs for NPT Thread | |||||
| Item No. | GL(mm) | H(mm) | D(mm) | AG(mm) | Hex Wrench(mm) |
| HNBP-NPT3/8" | 13 | 17 | 24 | 17 | 8 |
| HNBP-NPT1/2" | 13 | 17 | 24 | 21.2 | 8 |
| HNBP-NPT3/4" | 15 | 20 | 28 | 26.2 | 8 |
| HNBP-NPT1" | 15 | 21 | 36 | 33.3 | 8 |
| HNBP-NPT1 1/4" | 15 | 19 | 46 | 42 | 8 |
| HNBP-NPT1 1/2" | 15 | 21 | 55 | 48 | 8 |
